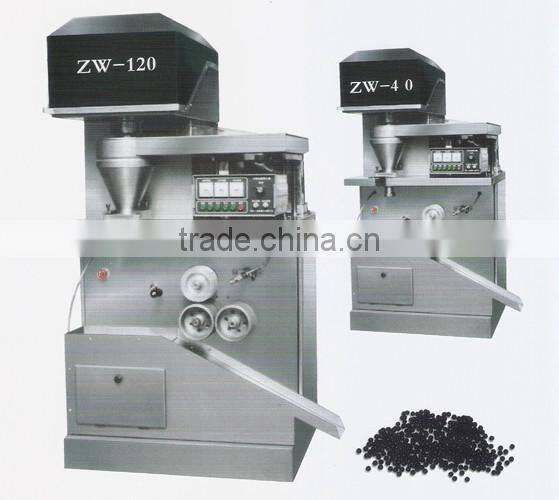

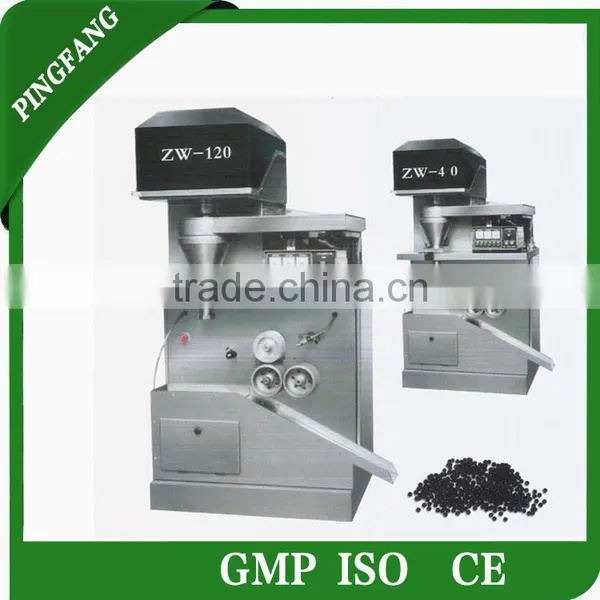

ZW-120/ZW-40 Standing-style Auto-making Traditional Chinese Medicine Pill Machine
Application
ZW-120 ZW-40 type standing-style auto-making the traditional Chinese medicine pill machine,is the main producing pill equipment not only in domestic or but abroad at present (referring to the traditional Chinese medicine small pill specially), it can produce honey pill, water pill ,water-honey pill, concintration pill , paste pill etc. These serial products are served to big middle small scale pharmaceutical factory and agent department of Chinese medicine hospital.
Working principle
Drug material mixed equally is thrown into wimble-model material drainage; the machine will thrust out many identical diameter drug sticks by squeezing of the helix of propelle. Under the control of self-control lidler pulley, the drug sticks enter into making pill knife in-phase, big and small equal pills will be twisted continuously.
Technical characteristic
1,stable behavior, simple operation, convenient maintenance. The parts of contacting drug are all stainless steel material, it accords with GMP standard.
2,circular of the shape of pill,equal dimension size, making shape one time, without screening.
3,coming out strips equally, good multi-strip synchronism, collapsing degree is coincident with stipulation of pharmacopeia.
4,high automatization degree, good enclosure, decreasing chance of drug catching bacteria.
Model | Capacity kg/h | Specifications(mm) | Scope | Power (kW) | Size(mm) (L*W*H) | Weight (kg) |
ZW-120 | 80-120 | (unit as diameter of pill) 2~12,as well as other non- integer diameters of pills and large pills of 3,6,9gram | Bolus, watertight pill, enriched pill and water pill | 4.8 | 1200*850*2000 | 990 |
ZW-40 | 20-40 | 2.2 | 950*750*1600 | 400 |
