Product Details
| Place of Origin | Shanghai, China | Brand Name | PF | |
| Model Number | JH Series Alcohol Distiller Tower | Application | Liquid | |
| Type | Other, Recovery Tower | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Performance JH Series Quick Install Alcohol Recovery Tower, Alcohol Distiller Tower
Alcohol is one of the important industrial raw materials. During the past 50 years, more and more technicians both home and abroad have been paying great attention to the research, design and renovation on the work of alcohol distillation equipments. Alcohol recovery tower is one of our main products; at present the products have four specifications, that is models JH-200,300, 400 and 600. We can also offer the clients with specific models according to their requirements.
Our products are manufactured on the basis of advanced products both home and abroad, particularly from domestic original separating shape alcohol recovery tower, our product features for its remarkable low power consumption, simple operation, fast installation, reaching its position at a pace.

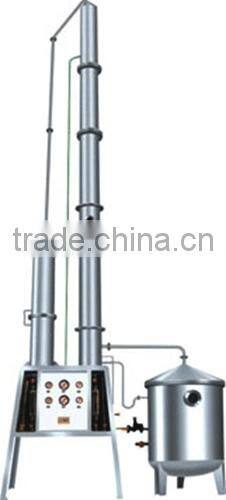

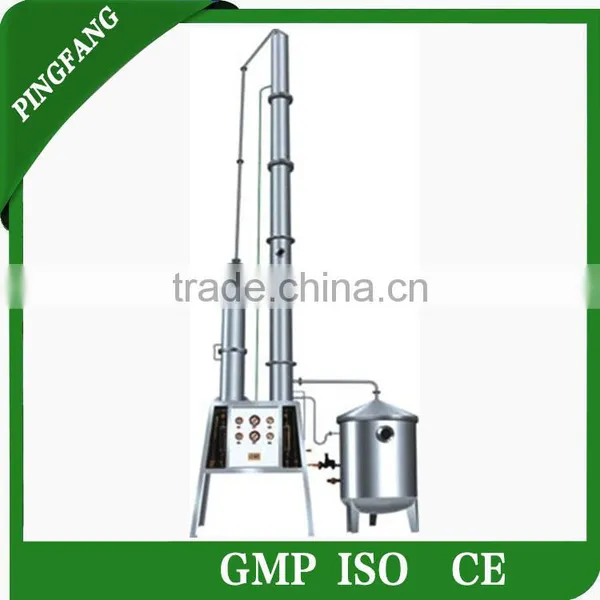

The whole set of the equipment includes distillation caldron, distillation tower, flow separator, condenser, chiller, and meter frame, those parts contacting to the medium are made of stainless steel material.
A set of heating tube is installed in the distillation caldron and there are wave type ceramic board (filling). On the meter frame there are thermometer, pressure meter, rotor flow meter and various kinds of control valves with very convenient vision and operation. This equipment is all made of high-quality stainless steel, according to the demands of GMP.
Item /MI&SPT | JH-200 | JH-300 | JH-400 | JH-600 |
Volume of distillation caldron(L) | 500 | 1200 | 1500 | 1800 |
Diameter of distillation tower(mm) | 200 | 300 | 400 | 600 |
Condensing area(m2) | 10 | 18 | 25 | 50 |
Heating area (m2) | 2 | 4 | 6 | 13 |
Inside of caldron pressure (MPa) | <0.05 | <0.05 | <0.05 | <0.05 |
Inside of coil pressure (MPa) | <0.6 | <0.6 | <0.6 | <0.6 |
Processing output (kg/h) | 50-80 | 100-180 | 200-300 | 400-700 |
Recovering capacity (kg/h) | 25-30 | 80-100 | 120-300 | 200-500 |
Recovering density (%) | 90-95 | 90-95 | 90-95 | 90-95 |
Net weight of device (kg) | 1500 | 2000 | 2500 | 6000 |
