ECO-Q15 Single Stage RO System Deionized Water System (Tap Water Inlet) With LCD Controlling System

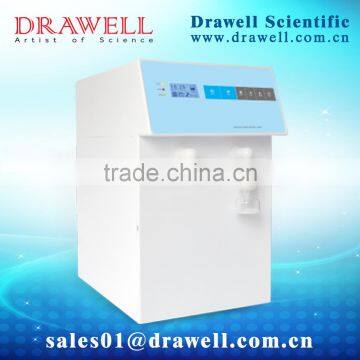

ECO-Q15 Single Stage RO System Deionized Water System (Tap Water Inlet) With LCD Controlling System photo-1
US$ 800 - 4,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
DRAWELL
Model Number:
ECO-Q series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name DRAWELL
Model Number ECO-Q series

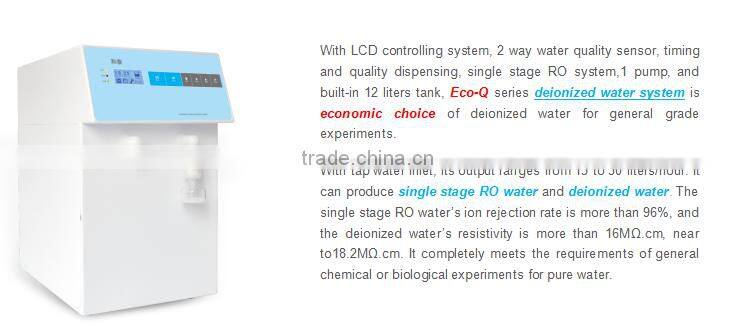

Eco-Q series deionized water system (Tap water inlet)



Product Description





Technical Parameter



Model

Eco-Q15

Eco-Q15UT

Eco-Q30

Eco-Q30UT

Output(25)*

15 liters/hour

30 liters/hour

Flow rate

Up to 2 liters/minute (with pressure tank)

Pure water outlet

2: reverse osmosis water, deionized water

Deionized water quality









Resistivity

16-18.2MΩ.cm

Bacteria

N/A

<0.1cfu/ml

N/A

<0.1cfu/ml

Particle(>0.1μm)

N/A

<1/ml

N/A

<1/ml

RO water quality









Ion rejection rate

96%-99% (new RO membrane)

Organic rejection rate

>99%, when MW>200 Dalton

Particles and bacteria rejection rate

>99%

Feed water requirements

Tap water, temperature:5-45,pressure:1.0-4.0Kgf/cm2

Dimension and weight

Length×Width×Height:340×500×560mm / Weight: about 18Kg

Electrical requirements

AC110-240V, 50/60Hz

Power

72W

Standard configuration

Main body (Including 1 set of cartridge)+built-in 12 liters pressure tank

Remarks:The value will be influenced by temperature and feed water’s quality.

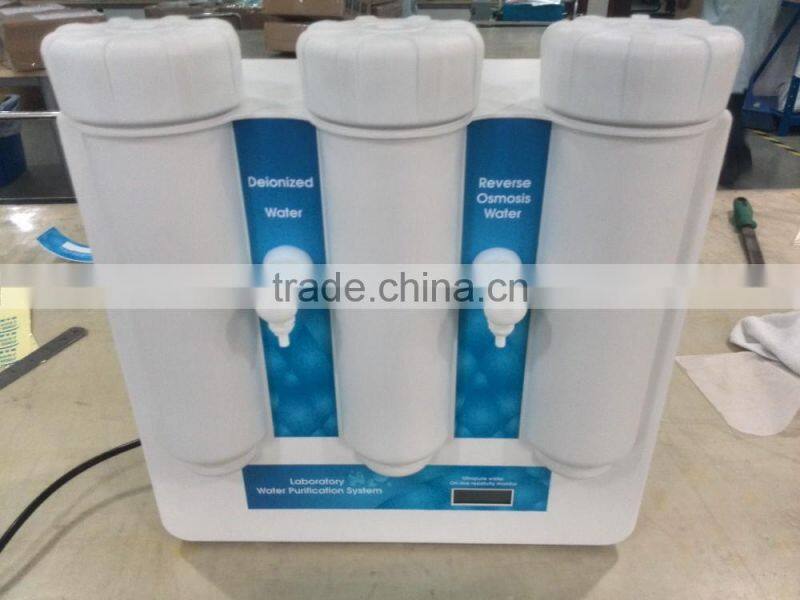

Detailed Images

 ECO-Q15 single stage RO system deionized water system (Tap water inlet) With LCD controlling systemECO-Q15 single stage RO system deionized water system (Tap water inlet) With LCD controlling system

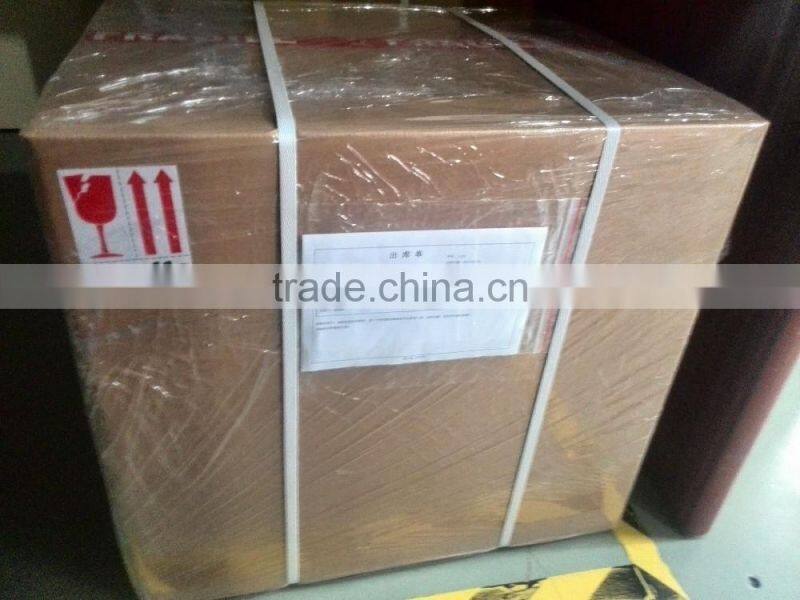

Packaging & Shipping

 ECO-Q15 single stage RO system deionized water system (Tap water inlet) With LCD controlling system

Related products

 ECO-Q15 single stage RO system deionized water system (Tap water inlet) With LCD controlling systemECO-Q15 single stage RO system deionized water system (Tap water inlet) With LCD controlling systemECO-Q15 single stage RO system deionized water system (Tap water inlet) With LCD controlling systemECO-Q15 single stage RO system deionized water system (Tap water inlet) With LCD controlling system

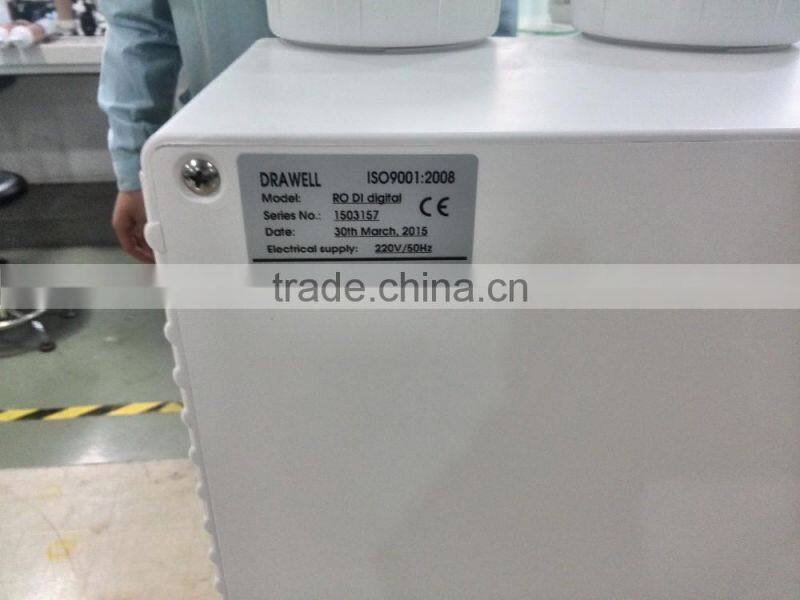

certification & Plug

 ECO-Q15 single stage RO system deionized water system (Tap water inlet) With LCD controlling systemECO-Q15 single stage RO system deionized water system (Tap water inlet) With LCD controlling system

Our Services

 Drawell After Sales Service-----Please don't worry, our products are superior in quality,  If you have any problems, please feel free to let us know, we are glad to support as below:



* Good quality firstly to avoid any defective products ;

* Operation Manuals in English ; installation & operation vedio will be provided to you as guidance ;

* We could provide Online instruction ;

* During warranty time, we can send product accessories when you need;

* Your technicians can come to our factory for training , Drawell engineers can go your place for support ( cost on your side );

* Products can be customized according to your requirements;

* Generaly the machine can use 5~10 years for average even longer if you use properly.
