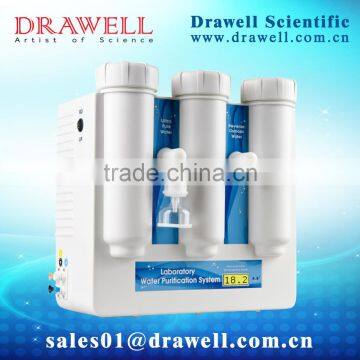

Laboratory Water Distillation With Water Purification System,2016 New

Smart series water purification syste

Features and functions:

n   One time injection molding process case, material: Polypropylene PP.

n   Elegant and compact case, integrating pre-filter, RO, DI, UV, UF and terminal filter into one.

n   All filters are built-in, the smallest outside space.

n   Top cap of pre-filters in the case can be rapidly opened to replace the pre-filters without opening the case.

n   With electronic pressure sensor and microcomputer controlling, the system automatically produces pure water.

n   RO membrane auto flushing,

n   Automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, guaranteeing 24 hours’ work.

n   On-line resistivity monitor, with apheliotropic LCD display, monitor deionized water or ultrapure water’s qualityreal-timely.

n   Attached portable TDS (total dissolved solid, ppm) test pen, with dry cell design, to monitor tap water and RO water’s quality.

n   Pipeline with NSF authorization to assure high quality ultrapure water.

n   New easy-inserting adaptor to make convenience of cartridge maintaining and replacing.

n   Different tanks to meet every needs and assure ample water-supply.

n   RO membrane, manufactured by DOW or CSM, to assure RO membrane’s long time and high quality of pure water.

n   4 ultrapure polishing resin cartridge with DOW’s polishing resin, to assure the top-level water quality of ultrapure water.

n   Double wavelength(185&254 nm)UV lamp cartridge, to achieve effective sterilization and reduce TOC index.

n   5000 Doulton ultra-filtration cartridge, Manufactured in Germany, to eliminate endotoxin. Suitable for Cell cultivating and IVF.

n   (0.45+0.1)µm PES terminal filter, to assure the quality absolutely axenic.

Smart series products

n   RO lab/RO DI series reverse osmosis/deionized water system (Tap water inlet)

n   Ultra series ultra pure water system (Tap water inlet)

n   Research series ultra pure water system (pure water inlet)

n  Ultra series ultra pure water system (Tap water inlet)

n  Feed water :TDS=200ppm, 25℃, 50psi and 15% recovery rate.

n  GPD=gallon per day, 1gallon=3.78L.

n  The quality of feed water will influence outlet water quality and cartridge’s life.

n  PF: Pretreatment, AC: Active carbon, RO: Reverse osmosis, DI: Deionization, UV: UV lamp (Double wavelength:254&185nm) UF: Ultra-filtration, TF: Terminal filter
