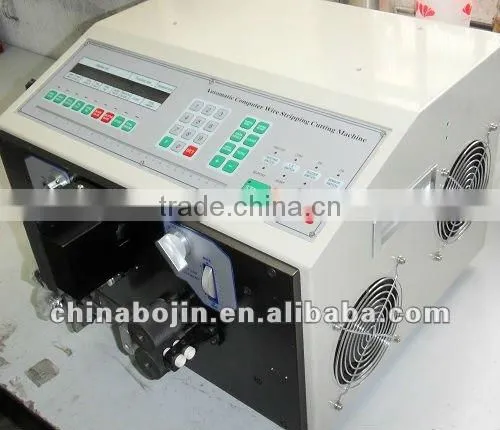

BJ-02T Wire Stripping & Twisting Machine
This machine is also referred as automatic wire stripping cutting & twisting machine, or wire twisting machine.
1) Model: BJ-02T
2) Wire Gauge Range: AWG16 ~ AWG32
3) Memory Function: Max. 99
We manufacture automatic tape dispenser, auto label dispensers, auto label rewinders, label cutting machines, wire stripper, wire stripping machine etc. High quality & low price!
Features:
This machine can strip, cut and twist multi-core wire full automatically!
Twiting two wires at the same time!
Wire stripping machine BJ-02T with double wires, double pipe Specifiions as following:
Power Supply |
220V / 50Hz |
Power Rating |
300W |
Display Way |
LED Display |
Wire Size |
AWG16-32 |
Fitting Wire Section Acreage(Single Pipe) |
0.1mm2-4.5mm2 |
Fitting Wire Section Acreage(Double Pipe) |
0.1mm2-2.5mm2 |
Guide Pipe Diameter(Wire DIA.) |
Φ6mm (Double Pipe) |
Twisting length |
Head: 0.1-30mm, Tail: 0.1-20mm |
Stripping Length |
Head: 0.1-30mm, Tail: 0.1-20mm |
Cutting Length |
0.1-10m |
Cutting Tolerance |
±(0.002×L) (L=Cutting Length) |
Exhausted Line Way |
Complete Half Brief Middle |
Processing Capacity |
15000pcs/hour |
Fitting Wire Material |
PVC Teflon Glass Wire |
Drive Way |
Four Wheel Drive At The Same Time |
Speed Adjustment |
1-9 |
Wire Diameter Adjustment |
Automation |
Twisting Way |
Both sides or one side |
Max. Middle Stripping Section: |
16 |
Parameter Memory Function |
Can save 99 kinds of different wires |
Blade Material |
Hard tungsten steel |
Mearsurement |
500*520*360mm |
Net Weight |
42Kg |
Pacakage |
Export standard package |
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Wire stripping machines
Model Number |
BJ-02B |
BJ-02D |
BJ-02F |
BJ-02MAX |
Wire size |
0.1~2.5 mm2 |
0.1- 4.5mm2 |
0.2 - 8.0 mm2 |
0.2- 16mm2 |
Conduit diameter |
Φ6 |
Φ6 |
Φ10 |
Φ13 |
Wire Gauge Range |
AWG16 - AWG32 |
AWG12 - AWG32 |
AWG8 - AWG32 |
AWG5-AWG30# |
Drive Mode |
Four-wheel drive |
Four-wheel drive |
Four-wheel drive |
Four-wheel drive |
Weight |
35kg |
35kg |
35kg |
35kg |
....
...
