micro bojin to vga cable Stripping machine
We manufacture wire stripping machine, wire stripper, tape cutting machine, tube cutting machine, label cutting machine, automatic tape & label dispenser, automatic label rewinder,etc. High quality & low price!

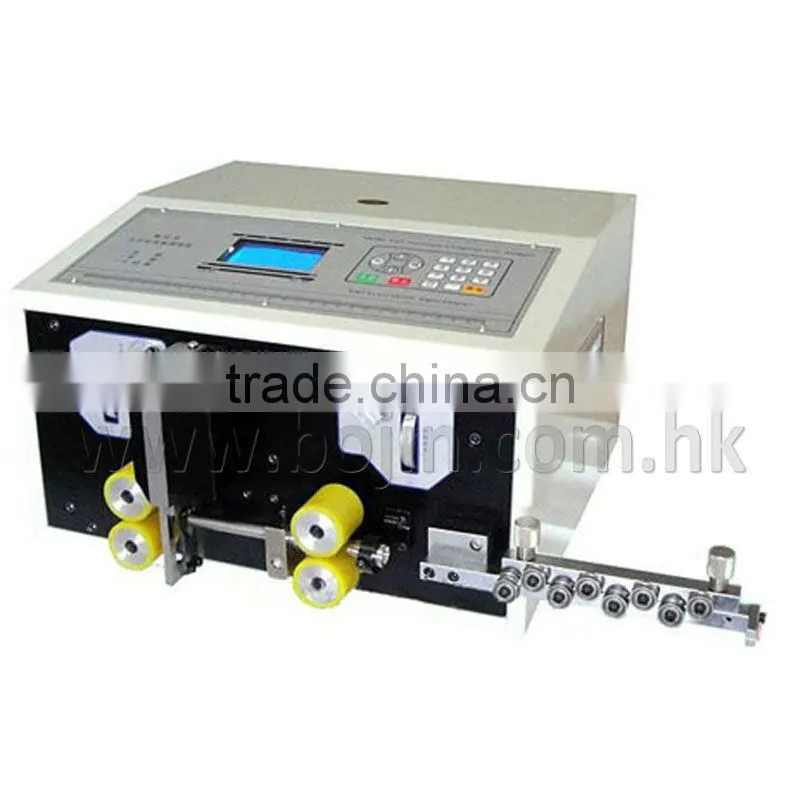

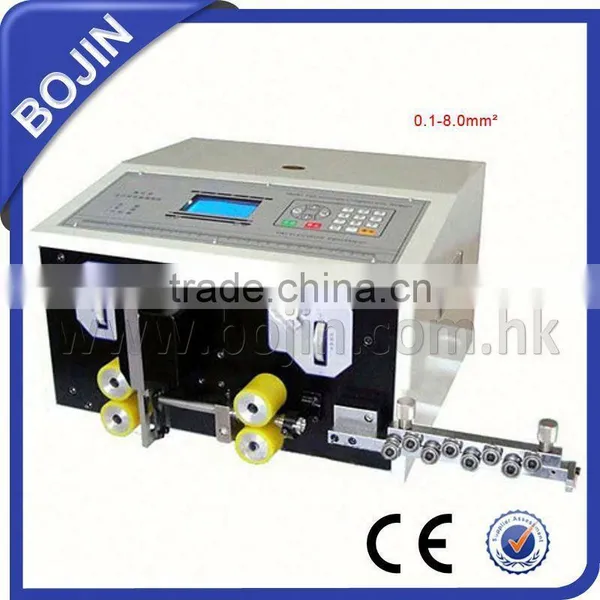

Automatic Wire Stripping Machine, Wire Cutting Machine, Wire Stripper Machine BJ-02E
Model: |
BJ-02E FOUR DRIVERS |
Power: |
AC220/ 50HZ 110V/60HZ |
Power: |
Rated 300W |
Display: |
Full English LCD Display |
Cutting length: |
1-9999mm |
Stripping length: |
End of a thread 0-35 line tail 0-15 |
Motor Step Angle Accuracy: |
3-phase 6 shot 1.5/3 |
Cutting Tolerance: |
±(0.002Xl) mm or less |
Cut the middle of stripping: |
11 |
Core cross-section cut-line: |
0.1- 6mm2 |
Wire Size |
AWG8-AWG30# |
Conduit diameter: |
Φ10 |
Appropriate wire stripping: |
PVC, Teflon, glass and wire |
Blade Material: |
Hard tungsten steel |
Stripper speed (Article / h): |
L=100mm, 3000-8000pcs/h |
Drive Mode: |
Four drives |
Package Size |
390*350*255mm |
Weight |
32kg |
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Wire stripping machines
Model Number |
BJ-02B |
BJ-02D |
BJ-02F |
BJ-02MAX |
Wire size |
0.1~2.5 mm2 |
0.1- 4.5mm2 |
0.2 - 8.0 mm2 |
0.2- 16mm2 |
Conduit diameter |
Φ6 |
Φ6 |
Φ10 |
Φ13 |
Wire Gauge Range |
AWG16 - AWG32 |
AWG12 - AWG32 |
AWG8 - AWG32 |
AWG5-AWG30# |
Drive Mode |
Four-wheel drive |
Four-wheel drive |
Four-wheel drive |
Four-wheel drive |
Weight |
35kg |
35kg |
35kg |
35kg |
....
