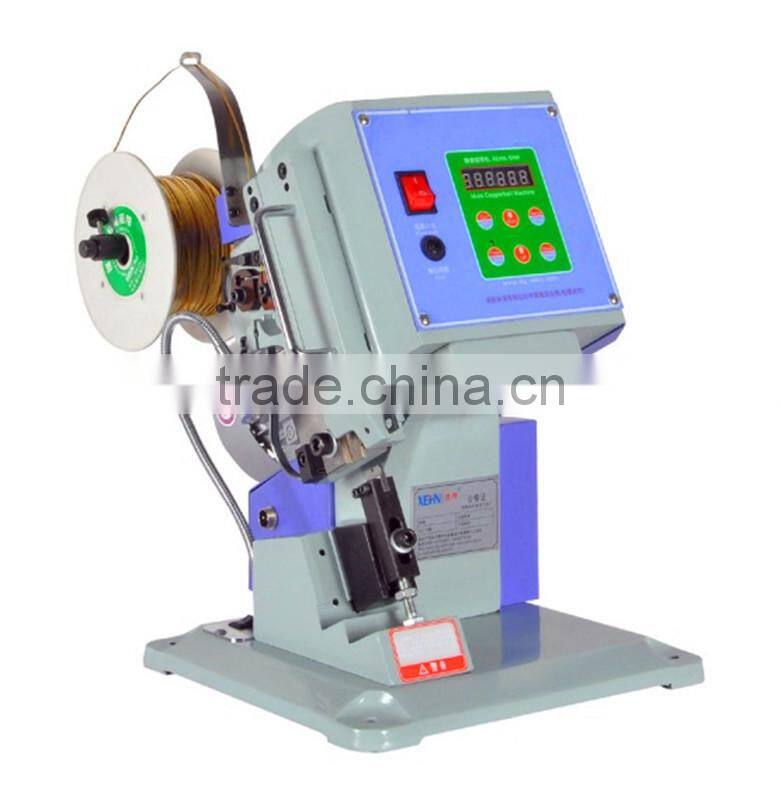

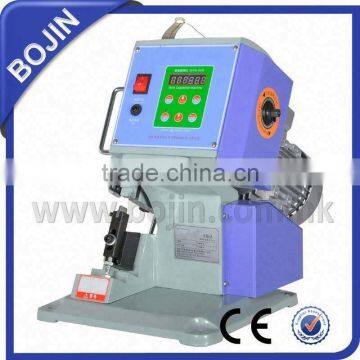

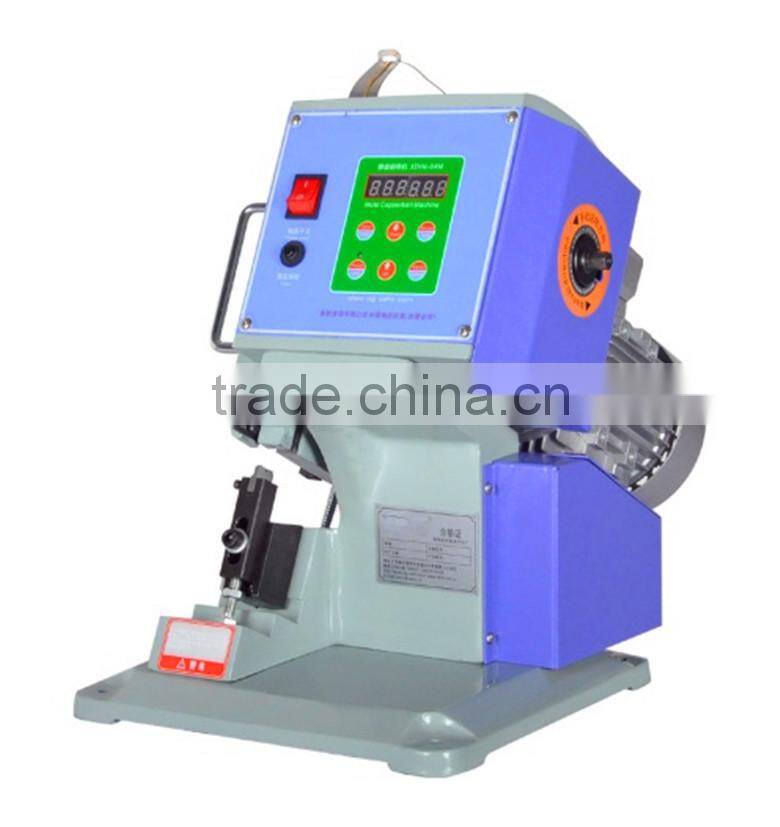

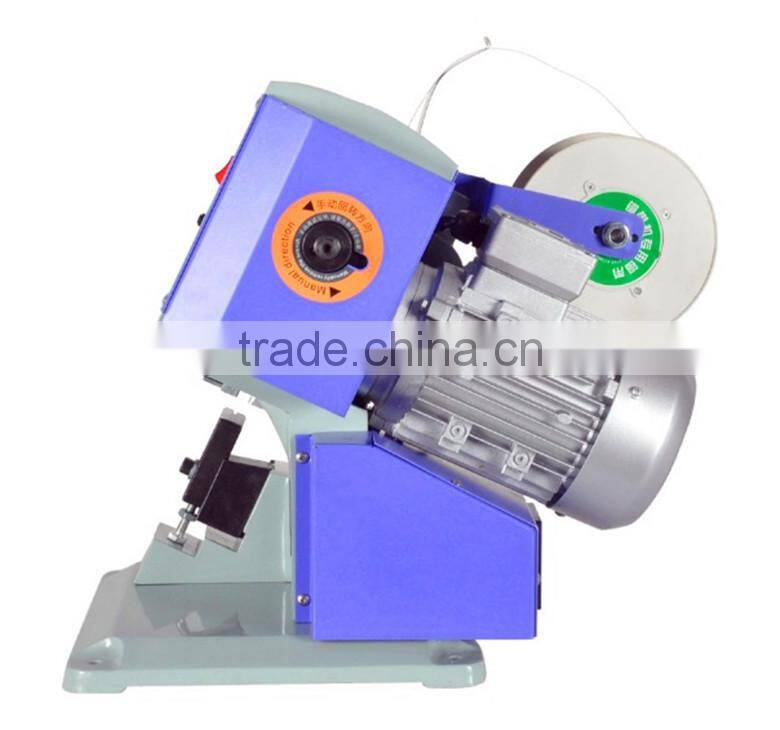

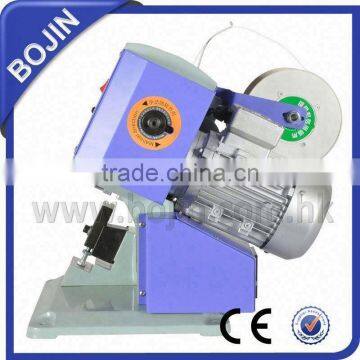

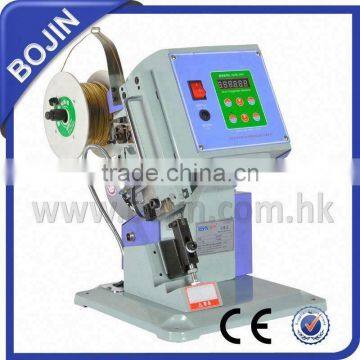

Factory Outlet Copper Linking Annealing Machine BJ-04M

copper linking annealing machine BJ-04M

Specification

Power source: AC110/220v 50/60HZ single phase

Motor: asynchronous motor AC220v 550w

Crimping capacity: 1.5t

Applicable copperbelt: 1-6mm

Operation: single-action pedal

Volume: 430x430x430

Weight: 43kg

Stroke: 23mm

Applicable scope:

Connection with the resistance of neon, LED and wire connections.

Slide the switch is connected to the wire(replace solder)

Connect the high temperature of the heating element.

Sensitive components( such as reed switches, temperature fuse) connection.

Transformer tap connections and wires.

Headphone cable card, set the pipeline fixed.

Wire and lead connections.

Product features:

Splicing machine upgrade, streamline internal mechanical parts, mechanical parts to reduce wear and replacement.

Host is a variable frequency motor drive, no conventional clutch mechanized operation delay and failure, torque, vibration, high stability, providing ultra-quiet working environment.

No flywheel design, standby motor at a standstill, when job rotation, the energy is not wasted on a rotating flywheel.

Adding machine keypad keys downward punch line without shaking the spindle with a wrench when debugging mold.

Machine working frequency range of 1-20 times the work can adjust the interval adjustment range 0-20min.

copper linking annealing machine BJ-04M

We Provide

• Best products and factory price.
• On-time delivery and the shortest delivery time.
• 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
• OEM and customized service.
• User manuals will go with relative machines.

Service

• QC: All products will be checked before delivery.
• Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
• Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
• Operation Guidance: If you have any problem with operation, please feel free to contact us.
