Type Terminal Crimping Machine BJ-604E

Type Terminal Crimping Machine BJ-604E photo-1
US$ 580 - 590 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOJIN
Model Number:
BJ-604E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name BOJIN
Model Number BJ-604E
Usage Crimping

Product Description

Type Terminal Crimping Machine BJ-604E

  • Crimping range: Tube terminal 0.08-120mm2
  • Air pressure range: 0.5-0.8Mpa
  • Output:2.5T
  • Voltage range: AC 220V
  • Weight: 6.5kg
  • Overall dimension: 360*125*165mm

Type Terminal Crimping Machine BJ-604E

Type Terminal Crimping Machine BJ-604E

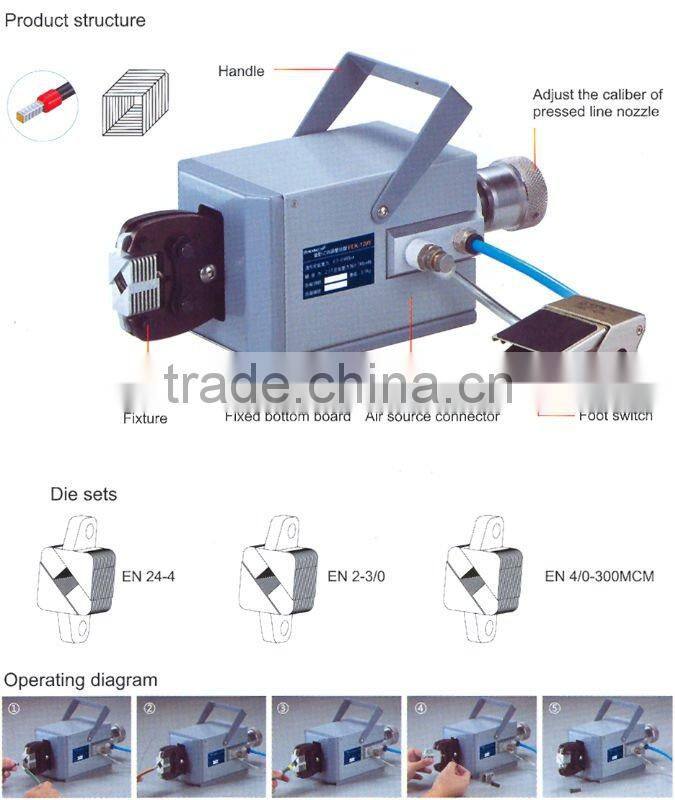

1. Then put the stripped insulated conductor into the terminal

2. Place the crimping termninal in the corresponding crimping die sets

3. Place the stripped wires into the terminals, step down the foot air valve, and release the air valve after the completion of the crimping.

4. When replacing the crimping die sets, the air source shall be shut off to avoid the risk caused by the improper operation. Remove the die sets and fasten the screws using screwdriver

5. Replace with the required crimping die sets, and then fasten the screws again



Benefits:

Automates your hand tools

Eliminates operator hand faigue-foot pedal controls the unit

Low cost alternative to automatic crimping machines

10 time faster than manual cirmping

Multi-funtion operations

Portable and lightweight

Small bench top footprint




Our Services

We Provide

  • Best products and factory price.
  • On-time delivery and the shortest delivery time.
  • 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
  • OEM and customized service.
  • User manuals will go with relative machines.

Service

  • QC: All products will be checked before delivery.
  • Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
  • Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
  • Operation Guidance: If you have any problem with operation, please feel free to contact us.
