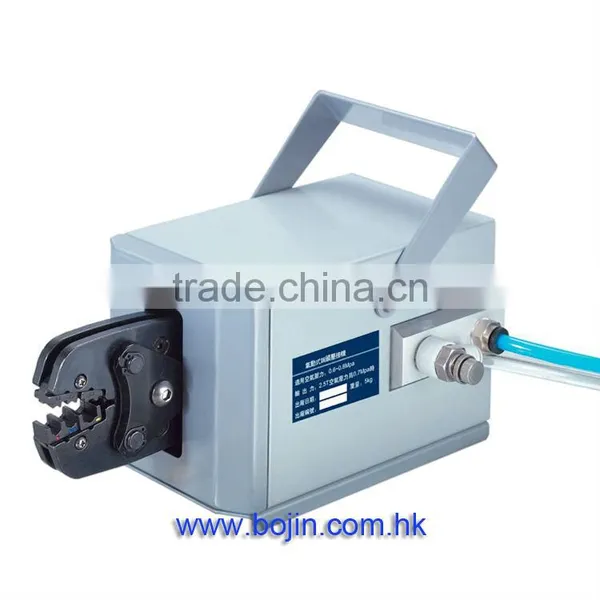

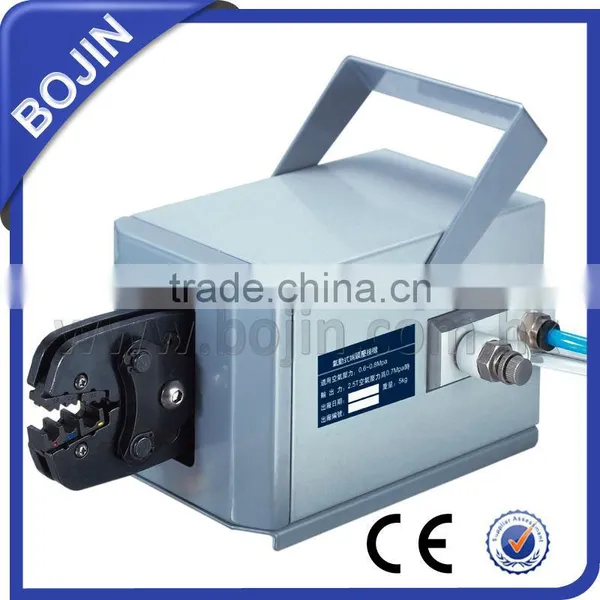

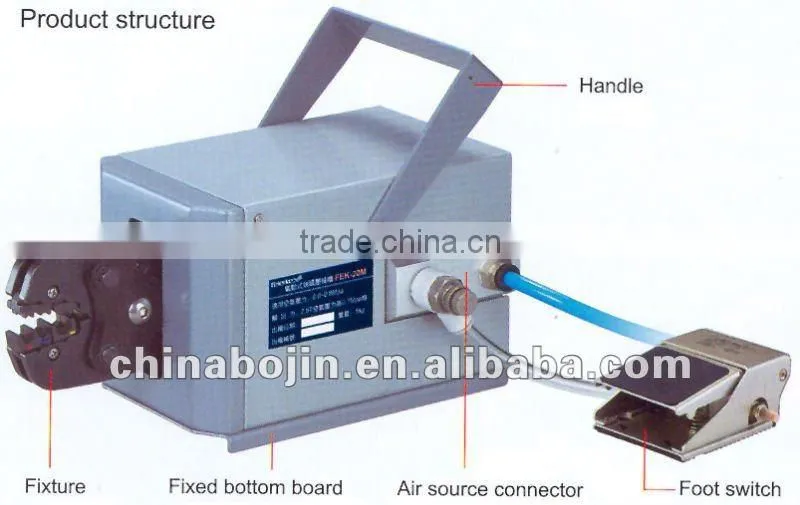

Pneumatic Type Terminal Crimping Machine BJ-602E

Specifications

Pneumatic Type Terminal Crimping Machine BJ-602E

Crimping range: 0.5-16mm2

Air pressure range: 0.5-0.8Mpa
Output:1.8T

Voltage range: AC 220V

Weight: 6kg

Overall dimension: 275*128*145mm

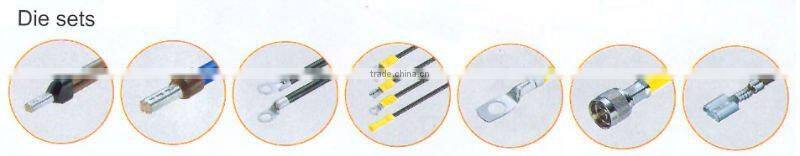

The crimping dies used for BJ-602E shall be interchangeable with the fixture of the manual crimping tools produced by the company. There are many types of terminal crimping die sets for selection.

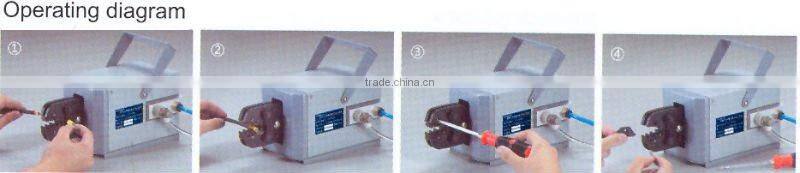

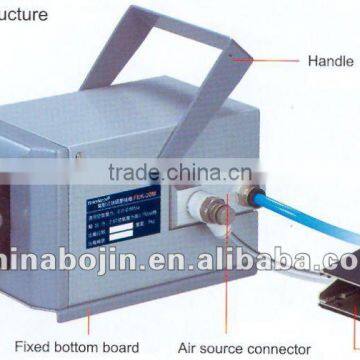

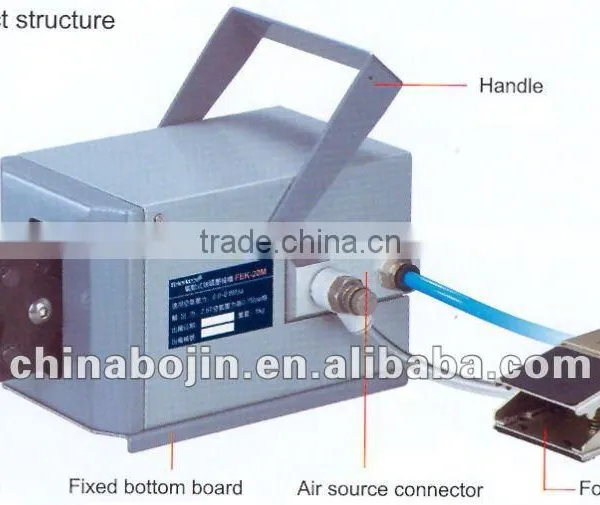

1. Place the crimping terminal in the corresponding crimping die sets

2. Place the stripped wires into the terminals, step down the foot air valve, and release the air valve after the completion of the crimping.

3. When replacing the crimping die sets, the air source shall be shut off to avoid the risk caused by the improper operation. Remove the die sets and fasten the screws using screwdriver.

4. Replace with the required crimping die sets, and then fasten the screws again.

We Provide

• Best products and factory price.
• On-time delivery and the shortest delivery time.
• 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
• OEM and customized service.
• User manuals will go with relative machines.

Service

• QC: All products will be checked before delivery.
• Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
• Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
• Operation Guidance: If you have any problem with operation, please feel free to contact us.

....
