New model Shotcrete gunning machine | Refractory shotcrete machine | Wet shotcrete machine

FOB Price

USD $1,100 - $2,300 / Piece

1 Piece(Min.Order)

Supply Ability 10 Piece / Pieces per Month
Port qingdao
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Max. Conveying Distance:	200m	Max Aggregate Size:	50mm
Hose Inner Diameter:	51 mm	Air Consumption:	10-15m3/min	Place of Origin:	Shandong, China
Brand Name:	BAFANG	Model Number:	PZ	Voltage:	380V
Power(W):	7.5 KW	Dimension(LWH):	11301020750mm	Weight:	600kg
Certification:	ISO9001	Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

specification

1. Gunite Swimming Pool Construction.

2. Soil Retention and Tetaining Walls.

3. Rockscaping.

4. Refractory Spraying.

5. Mine Support.

6. Tunnel Linings.

7. Concrete Repair.

8. Artificial Rocks and Caves.

9. Low-volume Refractory Spraying.

Dry or Wet Shotcrete Machine With Long-serving time

$New model Shotcrete gunning machine | Refractory shotcrete machine | Wet shotcrete machine$

description

Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns’ inner liner.

Feature

Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
Three drive models: by Electric motor, air motor or diesel engine.

$New model Shotcrete gunning machine | Refractory shotcrete machine | Wet shotcrete machine$

Parameter

Item	PZ-3	PZ-5	PZ-7
Output	3.5m3/h	5m3/h	7m3/h
Max. conveydist	Horizontal:200m Vertical:20m	Horizontal:200m Vertical:20m	Horizontal:200m Vertical:20m
Water cement ratio	≤0.4	≤0.4	≤0.4
Max. Aggregate. size	20mm	20mm	20mm
Hose inner size	38mm	51mm	64mm
Operating air pressure	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa
Air consumption	3-4m3/min	7-8m3/min	8-10m3/min
Rotor diameter	350mm(150)	438mm	480mm
Motor power	Y112M-6-3KW	Y132-6-5.5(KW)	Y132-6-7.5KW
Voltages	380vor as your requirement	380vor as your requirement	380vor as your requirement
Overall dimension(mm)	1040550940	12807001280	15007001280
Whole weight	260kg	600kg	700kg
wheel	Nylon wheel ; Rubber wheel ; skid wheel ; Rail wheel

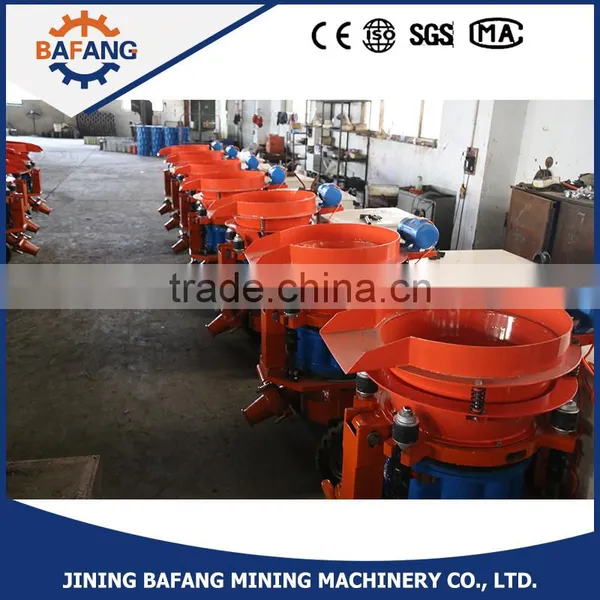

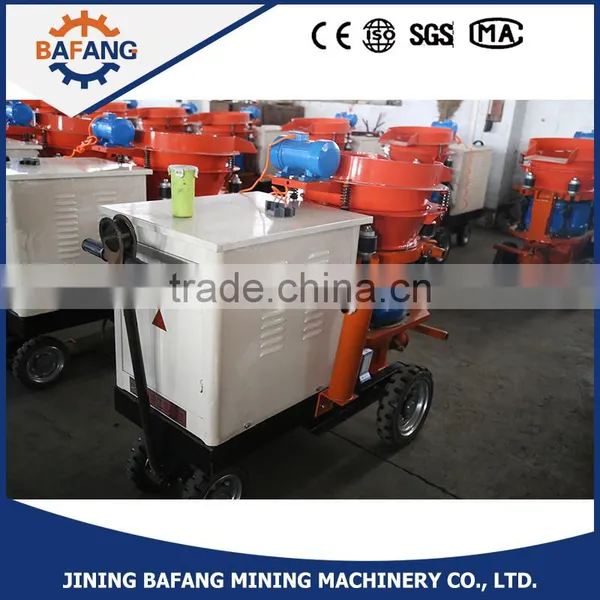

Detailed picture

$New model Shotcrete gunning machine | Refractory shotcrete machine | Wet shotcrete machine$

$New model Shotcrete gunning machine | Refractory shotcrete machine | Wet shotcrete machine$ $New model Shotcrete gunning machine | Refractory shotcrete machine | Wet shotcrete machine$
