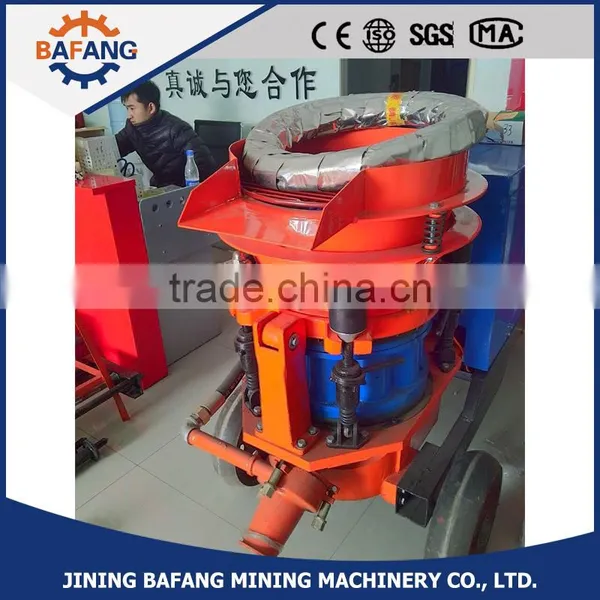

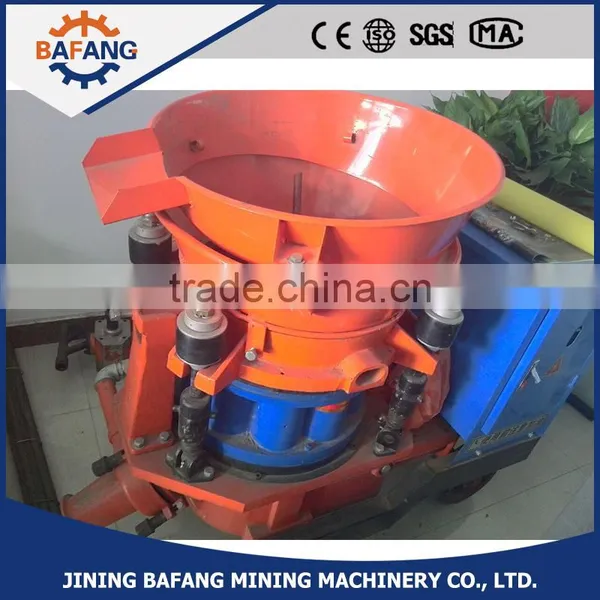

Help CenterHigh Efficient Wall Spray Paint Shotcrete Machine Used in Construction
Related Products
-
Variable Output Dry Spray Refractory Shotcrete Guniting MachineUS$ 1,100 - 2,300MOQ: 1 Piece -
Double Buckets Automatic Feeding Concrete Spraying CarUS$ 7,500 - 8,500MOQ: 1 Piece
-
Two Bucket Automatic Feeding Concrete Spraying CarUS$ 7,500 - 8,500MOQ: 1 Piece
-
PZ7I Mobile Automatic Shotcrete Machine Tractor Mounted Cement Concrete Spraying Car Factory PriceUS$ 7,500 - 8,500MOQ: 1 Piece
-
NEWEST! PZ-7I Mobile Truck Mounted Automatic Feeding Concrete Shotcrete Equipment Gunite MachineUS$ 7,500 - 8,500MOQ: 1 Piece
specification
1. Gunite Swimming Pool Construction.
2. Soil Retention and Tetaining Walls.
3. Rockscaping.
4. Refractory Spraying.
5. Mine Support.
6. Tunnel Linings.
7. Concrete Repair.
8. Artificial Rocks and Caves.
9. Low-volume Refractory Spraying.
Dry or Wet Shotcrete Machine With Long-serving time
description

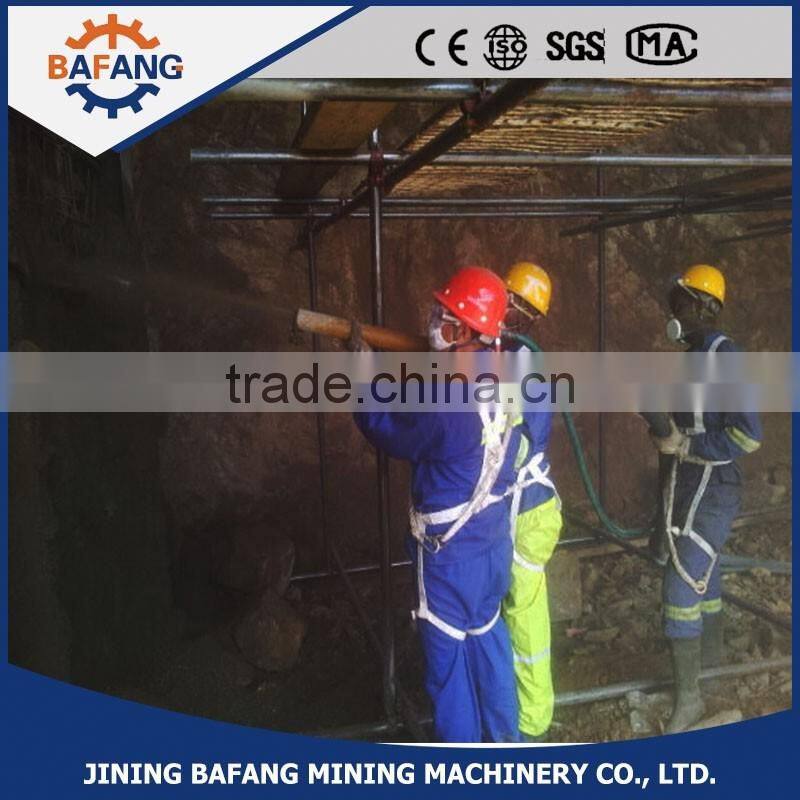

- Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
- Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
- Refractory spraying and repair for industrial kilns or kilns’ inner liner.
- Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
- Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

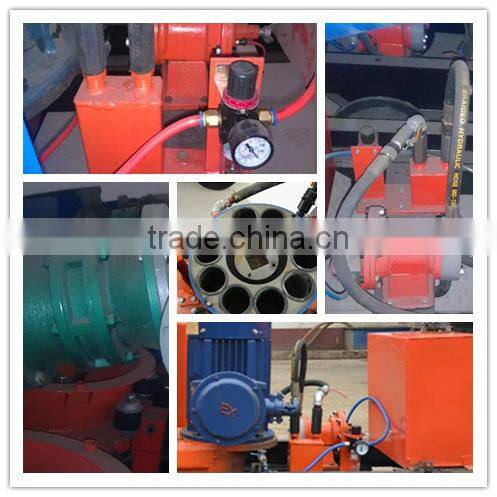

- Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
- Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
- Three drive models: by Electric motor, air motor or diesel engine.
Item
| PZ-3 | PZ-5 | PZ-7 |
Output | 3.5m3/h | 5m3/h | 7m3/h |
Max. conveydist | Horizontal:200m Vertical:20m | Horizontal:200m Vertical:20m | Horizontal:200m Vertical:20m |
Water cement ratio | ≤0.4 | ≤0.4 | ≤0.4 |
Max. Aggregate. size | 20mm | 20mm | 20mm |
Hose inner size | 38mm | 51mm | 64mm |
Operating air pressure | 0.4~0.6MPa | 0.4~0.6MPa | 0.4~0.6MPa |
Air consumption | 3-4m3/min | 7-8m3/min | 8-10m3/min |
Rotor diameter | 350mm(150) | 438mm | 480mm |
Motor power | Y112M-6-3KW | Y132-6-5.5(KW) | Y132-6-7.5KW |
Voltages | 380vor as your requirement | 380vor as your requirement | 380vor as your requirement |
Overall dimension(mm) | 1040*550*940 | 1280*700*1280 | 1500*700*1280 |
Whole weight | 260kg | 600kg | 700kg |
wheel | Nylon wheel ; Rubber wheel ; skid wheel ; Rail wheel | ||
