Double Buckets Automatic Feeding Concrete Spraying Car

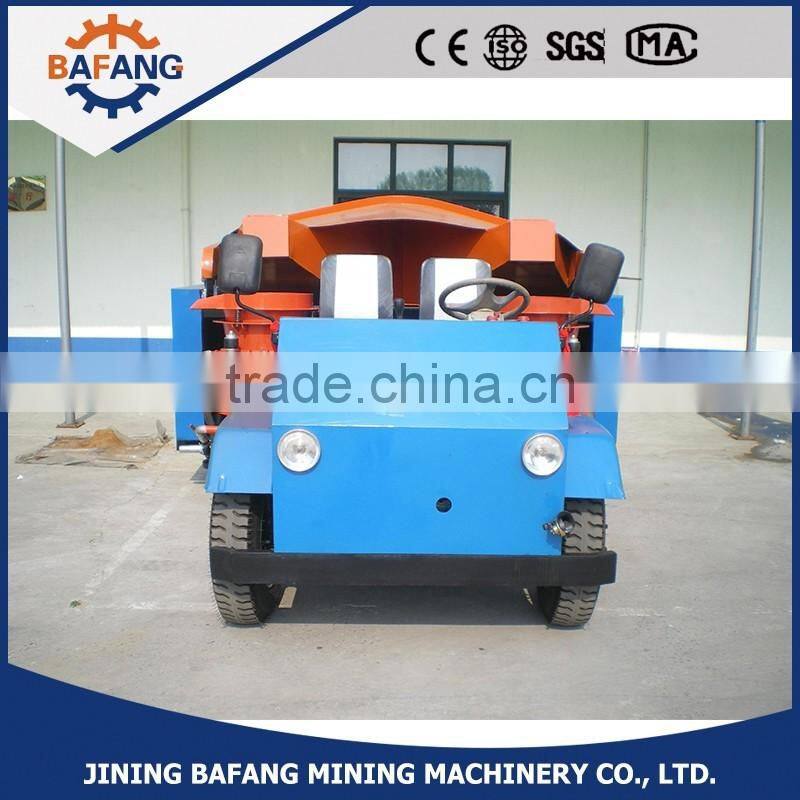

Double Buckets Automatic Feeding Concrete Spraying Car photo-1

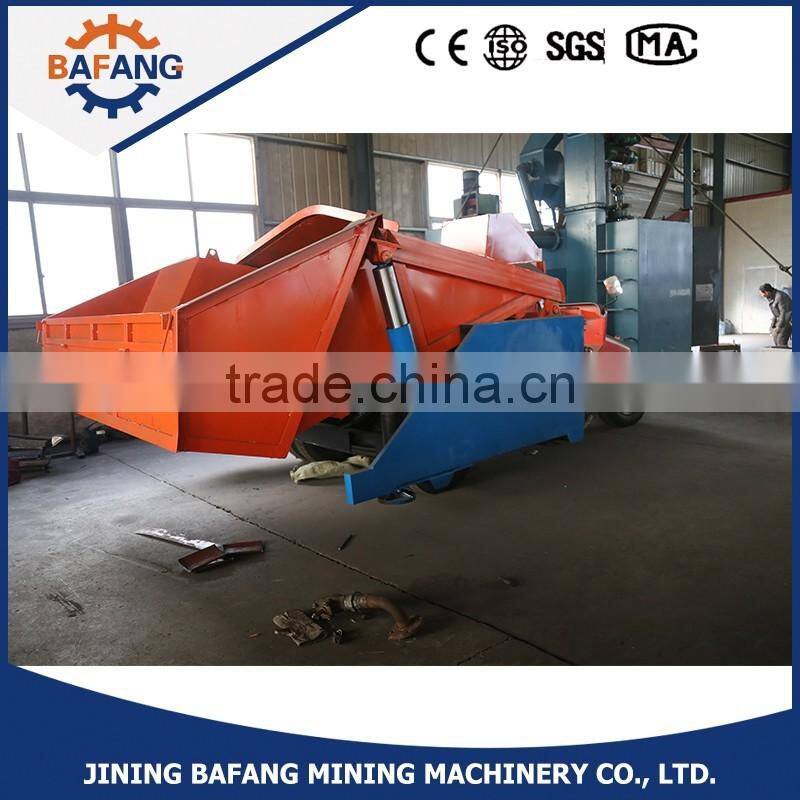

Double Buckets Automatic Feeding Concrete Spraying Car photo-2

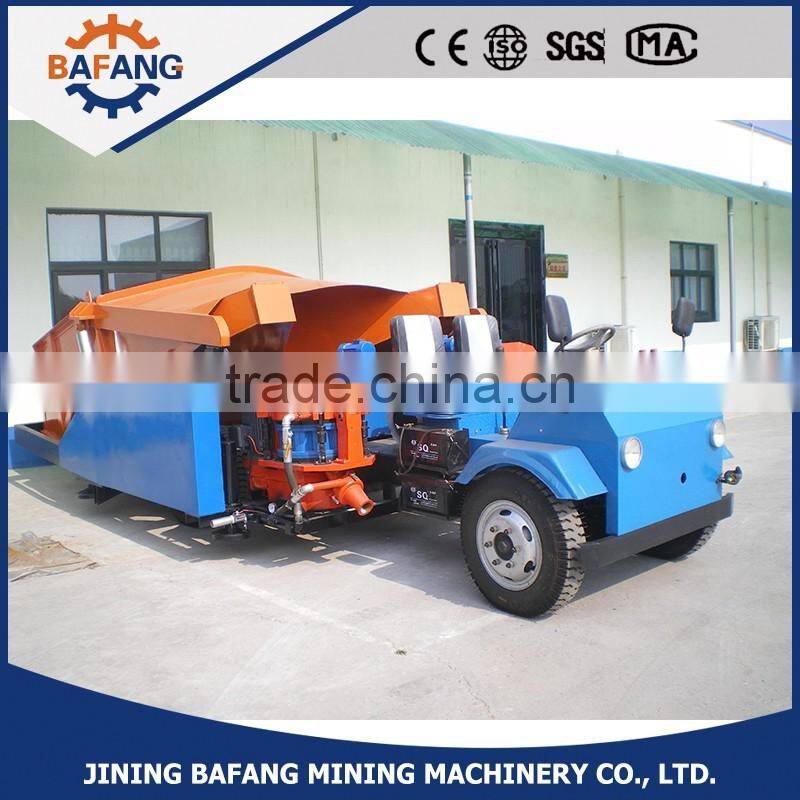

Double Buckets Automatic Feeding Concrete Spraying Car photo-3

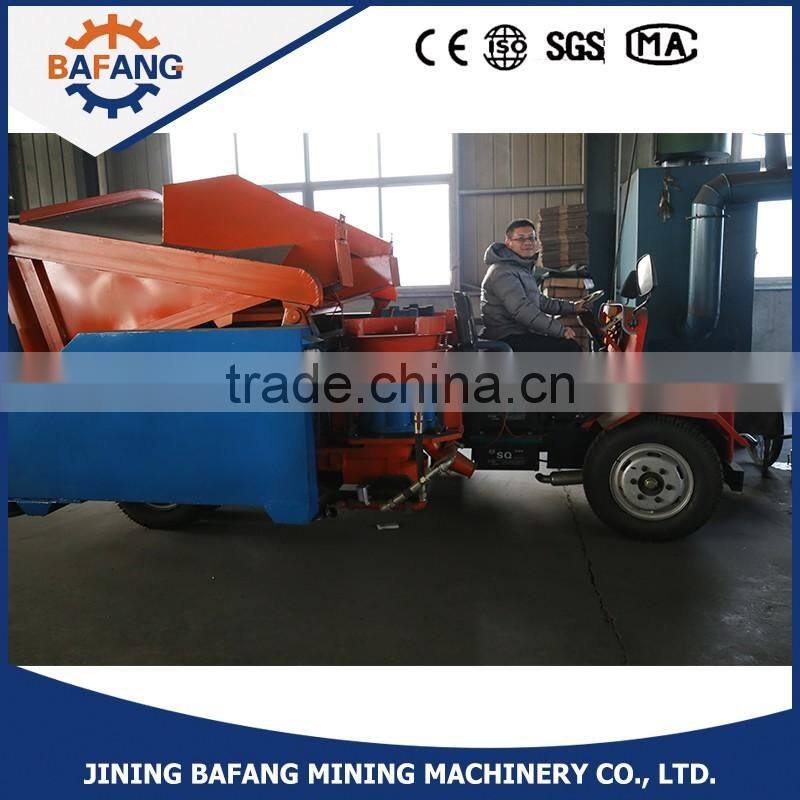

Double Buckets Automatic Feeding Concrete Spraying Car photo-4

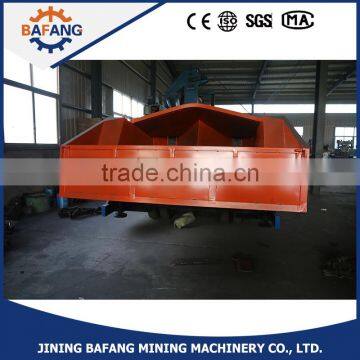

Double Buckets Automatic Feeding Concrete Spraying Car photo-5
Double Buckets Automatic Feeding Concrete Spraying Car photo-6
US$ 7,500 - 8,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Max. Conveying Distance:
100m
Max Aggregate Size:
20
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Max. Conveying Distance 100m
Max Aggregate Size 20
Hose Inner Diameter 51 mm
Air Consumption 10-15m3/min
Place of Origin Shandong, China
Brand Name BAFANG
Model Number PZ71
Voltage 380V
Power(W) 20kw
Dimension(L*W*H) 6100*2800*2000mm
Weight 6500kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Overseas third-party support available

Specifications



- Automatic Shotcrete Machine;
- Factory Supply;
- Favorable Factory Price;
- for Coal Mine
- ODM/OEM



double buckets automatic Feeding concrete Spraying car





double buckets automatic Feeding concrete Spraying car





 description





      Automatic material spraying car is a concrete spraying operation, It has automatic feeding



function shot Crete equipment. The product is  on the basis of traditional shot Crete machine ,



deriving from a new generation of spray equipment. The device collecting bin automatic



feeding,automatic filling, accelerator, automatic walking each, etc.





 Feature





1. We can change the color according to your actual requirements.


2. Customized the voltage motor based on your country.


3. Choose the different wheel according to your needs.





 Parameter







Model

PZ7I

Output

7m3/hx2

Max. Convey Distance

Horizontal:100m Vertical: 20m

Max. Aggregate Size

Ø 20mm

Working Pressure

0.5MPa

Air Consumpution

(10-15m3)x2/min

Motor Power

7.5Kwx2

Voltage

380V,50HZ,3Phase and can be customized

Dimension

6100x2800x2000(mm)

Net Weight

6500Kg





 Detailed picture





double buckets automatic Feeding concrete Spraying cardouble buckets automatic Feeding concrete Spraying cardouble buckets automatic Feeding concrete Spraying car

double buckets automatic Feeding concrete Spraying cardouble buckets automatic Feeding concrete Spraying cardouble buckets automatic Feeding concrete Spraying cardouble buckets automatic Feeding concrete Spraying car

Our Services

double buckets automatic Feeding concrete Spraying cardouble buckets automatic Feeding concrete Spraying cardouble buckets automatic Feeding concrete Spraying cardouble buckets automatic Feeding concrete Spraying cardouble buckets automatic Feeding concrete Spraying car



We have the professional production line for the wearing parts about shotcrete machine:



1.Delivery Rubber Hose: More durable than normal kind  rubber pipe,



weaved by the quality steel wire,



high resist  compression ability, high wear resistance.



2.Rubber Sealing Plate: Adopt  nature rubber,



working time  can meet 400m3.For the normal kind  can  only meet  130m3.



3.Rotor Disk: Casting by quality carbide tools, The working time is 3-5 times than normal kinds,



and can meet 600-800m3, it's prefect for the rotor type shotcrete machine.
