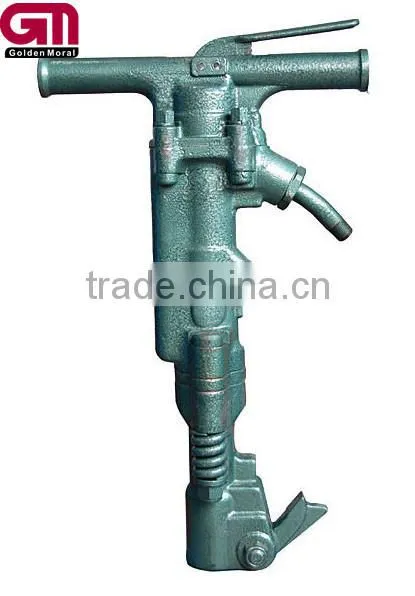

Air rock drill jack hammer manual rock drill TPB40
Specifications
TPB40 paving breaker
Drilling in mine and coal bed
Crashing concrete and clay
Blasting in civil engineering and underground
Operation Manual
Usage:
Drilling in mine and coal bed
Crashing concrete and clay
Blasting in civil engineering and underground construction
Instructions:
Compressor:
Capacity of the compressor is sufficient;
Whether the drain has been remoived;
Air hose:
Whether there is any damage to the air houe;
Whether the size and length is correct;
Clean the interior of the air hose when using compressed air;
Inspection of paving breaker:
Whether the is looseness in the screw thread areas;
Whether there is a crack or breakage in the maid body;
Inspection of chisel:
Whether the chisel is suitable for shank of paving breaker;
Whether the chisel is suitable for the work;
Whether there is wear of cracks;
Whether the chisel is mounted correctly;
Specifications:
Piston diameter |
44mm |
Piston stroke |
146mm |
Impact frequency |
1050N/MIN |
Net weight |
18KG |
Total length |
660mm |
Air consumption |
1.6m3/minute |
Shank specifications |
1×4-1/4 |
Inlet size |
3/4pt |
Air pressure |
6kg/cm2 |
