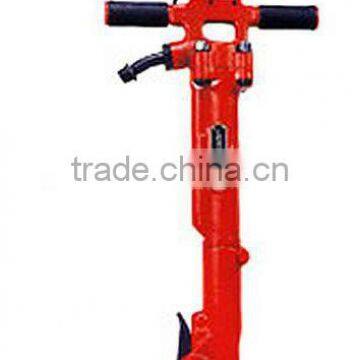

Pneumatic rock breaker TPB40 Paving Breaker Operation Manual
Usage:
Drilling in mine and coal bed
Crashing concrete and clay
Blasting in civil engineering and underground construction
Instructions:
Compressor:
Capacity of the compressor is sufficient;
Whether the drain has been remoived;
Air hose:
Whether there is any damage to the air houe;
Whether the size and length is correct;
Clean the interior of the air hose when using compressed air;
Inspection of paving breaker:
Whether the is looseness in the screw thread areas;
Whether there is a crack or breakage in the maid body;
Inspection of chisel:
Whether the chisel is suitable for shank of paving breaker;
Whether the chisel is suitable for the work;
Whether there is wear of cracks;
Whether the chisel is mounted correctly;
Specifications:
Piston diameter |
44mm |
Piston stroke |
146mm |
Impact frequency |
1050N/MIN |
Net weight |
18KG |
Total length |
660mm |
Air consumption |
1.6m3/minute |
Shank specifications |
1×4-1/4 |
Inlet size |
3/4pt |
Air pressure |
6kg/cm2 |
