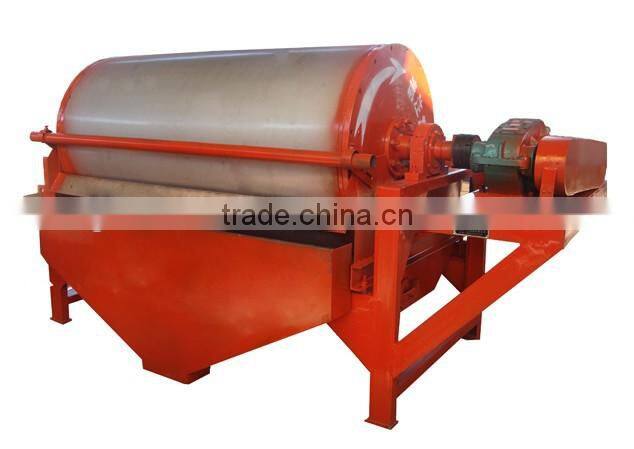

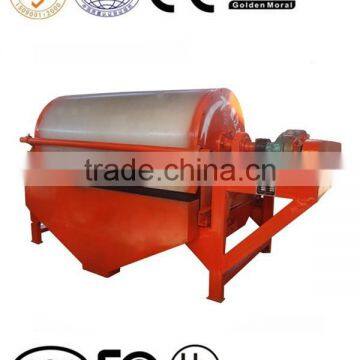

Magnetic Separator
Introduction:
Magnetic Separator is widely used in mineral processing, coal washing and chemical industry, for sorting the wet particle size of 6-10mm. The strong magnetic minerals and magnetic minerals are divided into two kinds of material: non-magnetic material and megnetic material. Magnetic separator is suitable for wet magnetic separation of materials such as magnetite, calcined ore, etc. and it can remove the iron in the coal, non-metal and construction industries.
The magnetic system is made from high quality ferrite magnetic materials or rare earth magnet steel. On the shell surface, the magnet intensity is 100-600mT. The wet type permanent magnet cylindrical separator is commonly used for iron ore separation. It is suitable for separating materials with high magnetism. In recent years, it has been used as the concentrating equipment in place of magnetic dewatering cell.
Features of Magnetic Separator:
1) High magnet intensity;
2) Low energy consumption;
3) High efficiency;
4) Simple structure;
5) Easy to operate and convenient to maintain.
Technical Parameters of Magnetic Separator:
Model |
Magnetic intensity (oe) |
Productivity (t/h) |
Motor power (kw) |
Weight (kg) |
CTB600*200 |
1450 |
8-15 |
1.5 |
910 |
CTB600*800 |
1500 |
15-25 |
2.2 |
1340 |
CTB750*800 |
1550 |
30-45 |
3 |
2050 |
CTB900*800 |
1650 |
35-60 |
4 |
3000 |
CTB1050*400 |
1650 |
60-95 |
5.5 |
5020 |
CTB1200*000 |
1650 |
80-150 |
7.5 |
7800 |
CTB1500*000 |
1650 |
120-200 |
11 |
9600 |
Technical Parameters of Wet Magnetic Separator:
Basic data |
Model |
|||||
GYC-60B |
GYC-60B-I |
GYC-2*0 |
GYC-3*0 |
GYC-3*0 |
GYC-4*0 |
|
Cylinder diameter*length MM |
Dia320*600 |
Dia320*600 |
Dia320*600 |
Dia320*600 |
Dia404*800 |
Dia404*800 |
Max. magnetic induction |
3500 |
1100 |
3500 |
110-3000-3500 |
110-3000-3500 |
110-3000-5000 |
Cylinder quantity |
1 |
1 |
2 |
3 |
3 |
4 |
Cylinder rotation speed r/min |
66.47.33 |
66.47.33 |
66.47.33 |
34.5-172 |
54.5-172 |
54.5-172 |
Sorting size mm |
0.05-25 |
0.063-25 |
0.05-25 |
0-8 |
0-8 |
0-8 |
Motor model |
Y801-4 |
Y801-4 |
Y801-4 |
ZBW-1.5 |
ZBW-1.5 |
ZBW-1.5 |
Power (kw) |
0.75 |
0.75 |
0.75 |
1.1 |
1.5 |
2.2 |
Productivity(t/h) |
0.5-2.5 |
0.1-3 |
0.5-2.5 |
0.8-2.5 |
1.5-2.5 |
1.5-2.5 |
Weight (t) |
0.25 |
0.65 |
0.5 |
1.2 |
1.5 |
2.4 |
Remark |
Fine selection |
Coarse selection |
Fine selection |
With vibrating feeder |
With vibrating feeder |
Fine selection |
