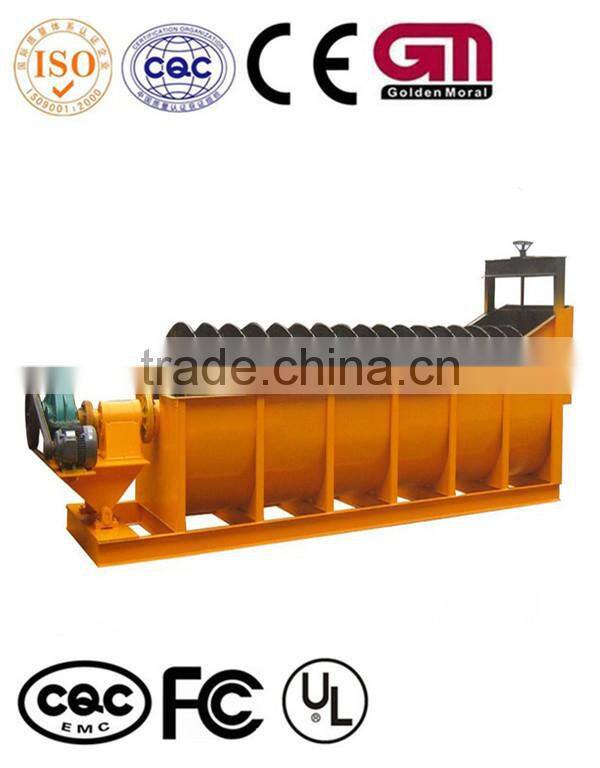

Spiral Classifier
Spiral Classifier Introduction:
Spiral classifier is widely used for classifying materials in the mineral processing flow as well as the desliming and dehydrating in the mineral washing operating process. The spiral classifier generally forms a closed processing flow. Spiral classifier is mainly composed by transmission device, screw, cell, movable lift, lower seat (bush) and discharge valve. Spiral classifier is a kind of classifying machine that adopt the principle of settling speed difference according to different material sizes and specific gravity.
Spiral classifier of Hongji Group is classified into two types: single spiral classifier and double spiral classifier.
Features of spiral classifier:
1) Simple structure;
2) Convenient to operate;
3) High efficiency;
4) Low cost.
Techincal Parameters of Spiral Classifier:
Model |
Spiral diameter(mm) |
Trough length(mm) |
Spiral rotation speed(r/min) |
Capacity(t/d) |
Power(kw) |
Weight (t) |
||
Return sand |
Overflow |
Driving |
Flifting |
|||||
FG7.5 |
750 |
5500 |
6-10 |
340-570 |
65 |
3.0 |
Manual |
2.7 |
FG10 |
1000 |
6500 |
5.0-8.0 |
675-1080 |
110 |
5.5 |
Manual |
4.43 |
FG12 |
1200 |
6500 |
5.0-8.0 |
1170-1870 |
155 |
5.5 |
1.5 |
8.7 |
FG15 |
1500 |
8400 |
4.0-6.0 |
1830-2740 |
235 |
7.5 |
2.2 |
12.5 |
FG20 |
2000 |
8400 |
4.0-6.0 |
3240-5400 |
400 |
11 |
2.8 |
20.5 |
FG24 |
2400 |
9210 |
3.6 |
4650-7450 |
580 |
15 |
3.0 |
25.6 |
FG30 |
3000 |
1250 |
3.2 |
11625 |
890 |
22 |
4.0 |
37.7 |
2FG12 |
1200 |
6500 |
5.0-8.0 |
2340-3740 |
310 |
5.5x2 |
1.5x2 |
14.0 |
2FG15 |
1500 |
8400 |
4-6.0 |
3660-5480 |
470 |
7.5x2 |
1.5x2 |
21.1 |
2FG20 |
2000 |
8400 |
3.0-5.5 |
7780-11880 |
800 |
11x2 |
2.8x2 |
36.5 |
2FG24 |
2400 |
9210 |
3.6 |
13600 |
1160 |
15x2 |
3x2 |
46.8 |
2FG30 |
3000 |
12500 |
2.0-3.2 |
14600-23400 |
1785 |
22x2 |
4x2 |
73.0 |
