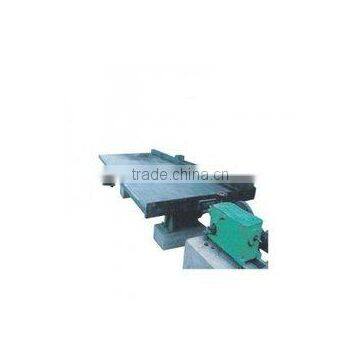

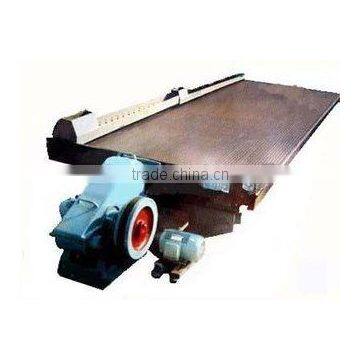

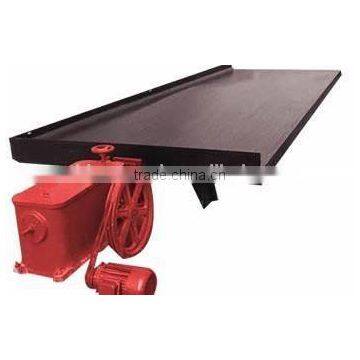

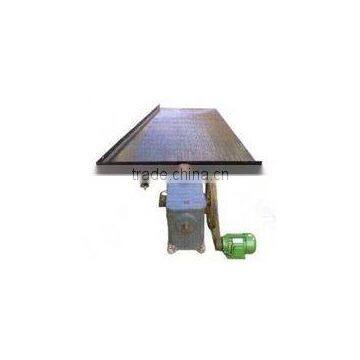

Shaking Table Introduction:
Shaking table (shake table) is one of the important dressing equipment depending on the gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.
The raw materials on the shaking table are with mixed densities, the suspending particles of the materials will leak down from the shaking table for its bearing the larger force. When the shaking table works, the raw materials on the table will tumbling and sliding with the shaking table. The different speed of the particles will lead the table expanding, then the particles with smaller size will screening out. The raw mineral materials will be selecting by adjusting the speed of the table.
Features of Shaking Table:
1) Big steel intensity;
2) Low water-absorptivity,anti-chemical corrosion acid;
3) High efficiency.
Technical Parameters of Shaking Table:
Model |
L-S type(6-S) |
Clean water(t/h) |
0.4-0.8 |
Stroke(mm) |
10-30 |
Table size (mm) |
1520*1825*4500 |
Frequency(time/min) |
240-360 |
Motor(kw) |
1.1 |
Horizontal obliquity(o) |
0-8 |
Capacity(t/h) |
0.5-1.2 |
Sorting size(mm) |
2-0.074 |
Weight (kg) |
1012 |
Feeding thickness(%) |
15-30 |
Dimension(mm) |
5454*1825*1242 |
