Exploration drilling rig XY-4easy to move, convenient repair.XY-4 type exploration rig can be used for solid deposit

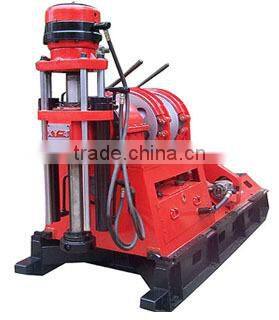

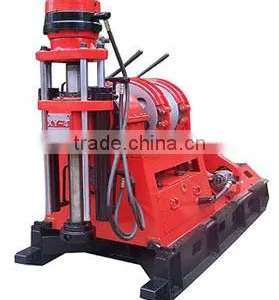

Exploration drilling rig XY-4
XY-4 exploration drilling rig China's first generation of vertical shaft diamond. Advanced design, reasonable layout, compact structure, flexible operation, rugged good removable, easy to move, convenient repair.XY-4 type exploration rig can be used for solid deposit exploration, engineering geology and groundwater exploration, shallow oil and gas exploration, dams perfusion, tunnel ventilation, drainage drilling.
The main technical parameters:
1, drilling depth
43mm drill pipe: 1000m
50mm drill pipe: 700m
2 gyrator
Speed: (Forward eight-speed) from 135 to 1588 r / min; (inverted two-speed) 110; 338 r / min
Spindle stroke: 600mm
Vertical shaft diameter: 68mm
Max Pressure: 54kN
Maximum pulling force: 72kN
3, winches
Lifting speed (third floor): 1.09; 2.02; 2.89; 4.18m / s
Maximum lift capacity (single rope): 30kN
4, the mobile device
Mobile Cylinder stroke: 400 mm
Rig left orifice distance: 250mm
5, power (according to user needs with)
Motor, 30kW, 1470r/min
Diesel engine, 36.75kW, 2000r/min
6, Weight (not including power machine): 1500 kg
Dimensions (L × W × H): 2640 × 1100 × 1750mm
