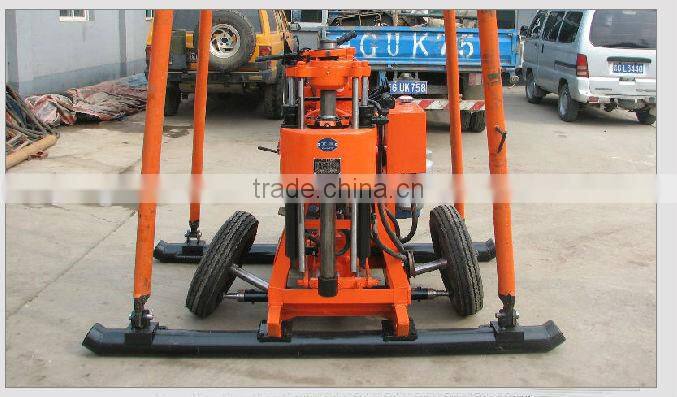

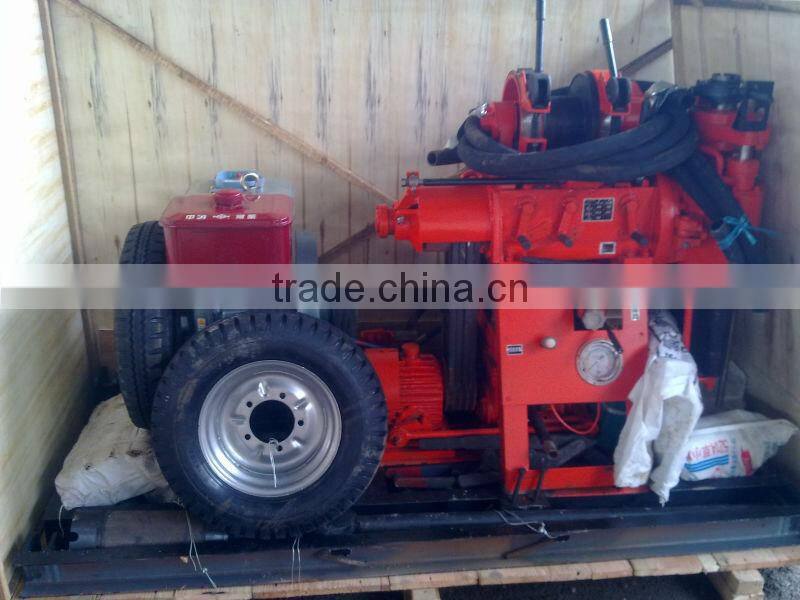

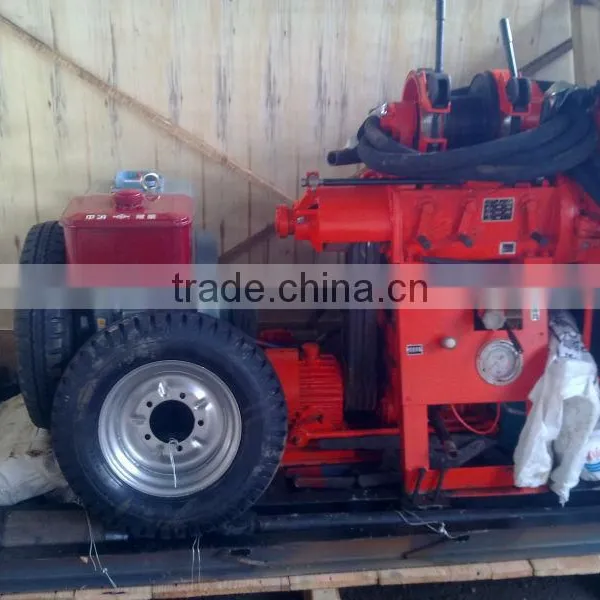

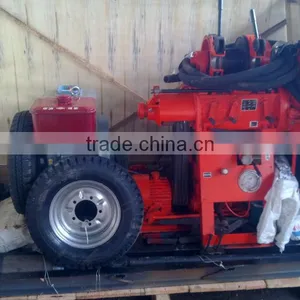

Core Drilling Rig XY-100
- ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Electric | Brand Name | GM | |
| Model Number | XY-100 | Usage | Water Well | |
| Weight | 510KG | Certification | CE | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
Core Drilling Rig XY-100All the drill, water pump and diesel engine installed on one base frame result in space-saving.Light.
Core Drilling Rig XY-100:
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.With hydro-automatic feeding device, and high drilling efficiency.Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.Close levers, convenient to operate, safe and reliable operations.Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
Model | XY-100Y |
Drilling depth | 100m |
Maximum open hole diameter | 200mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90°~75° |
Drill weight(No include power) | 510kg |
