Exploration Drilling Rig XY-6

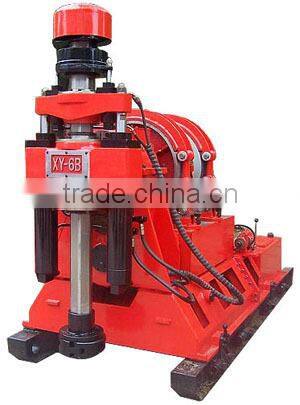

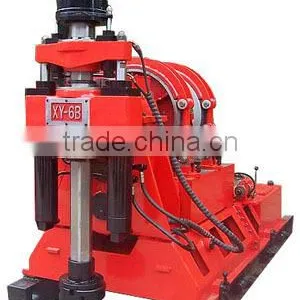

Exploration drilling rig XY-6

XY-6 Exploration drilling rig is mainly used for the oil fields of geology, metallurgy, coal, shallow, natural gas, and geothermal exploration of diamond drilling also meet the small-caliber, but also take into account the general hydrological well drilling and other engineering construction.XY-6 type of rig is mechanical - hydraulic drive spindle type core drilling rig. Rig reasonable structure, smooth operation, reliable work, easy to manipulate, strong and durable, the disintegration of performance, ease of installation, commissioning and repair characteristics.

The main technical parameters

1, drilling depth

Φ50 drill pipe: 2000m; Φ60 drill pipe: 1500m

2 gyrator

Spindle speed (4135 diesel engine)

Forward 8-speed: 80 ~ 1000r/min

Reverse 2-speed: 62; 170r/min

Spindle stroke: 600mm

Vertical shaft diameter: Φ96mm

Maximum lifting capacity: 200kN

Maximum pressure capacity: 150kN

3, winches

Lifting speed (third floor): 0.66; 1.44; 1.85; 2.13m / s

Maximum lift capacity (single rope): 60kN

4, the mobile device

Moving the cylinder stroke: 550mm

5, power (optional)

Motor: Y2-280S-4 75kW

Diesel Engine: R6105P 72kW

6, the rig weight (not including power): 3910kg

Dimensions (L × W × H): 3450 × 1500 × 2250mm
