GM XY-100 Core Drilling Rig
USD $4,000 - $8,000
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- Ningbo
- T/T Credit Card PayPal
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Fujian, China | Brand Name: | GM XY-100 Core Drilling Rig | Model Number: | GM XY-100 Core Drilling Rig |
| Usage: | Water Well | Weight: | 510 KG | Certification: | CE |
| Warranty: | 1 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
GM XY-100 Core Drilling Rig1,Max drill depth:100M
2,with two wheel to move easy

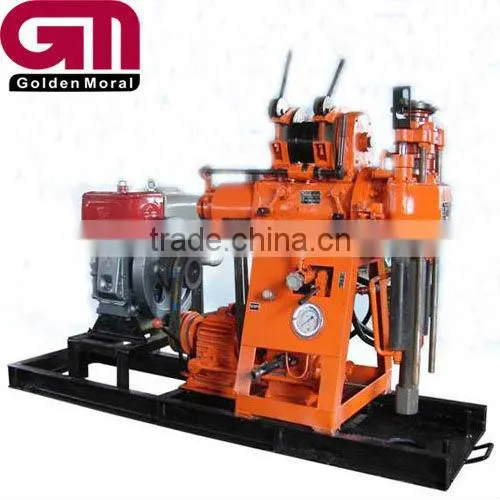

GM XY-100 Core Drilling Rig
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.With hydro-automatic feeding device, and high drilling efficiency.Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.Close levers, convenient to operate, safe and reliable operations.Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
Model | XY-100Y |
Drilling depth | 100m |
Maximum open hole diameter | 200mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90°~75° |
Drill weight(No include power) | 510kg |
