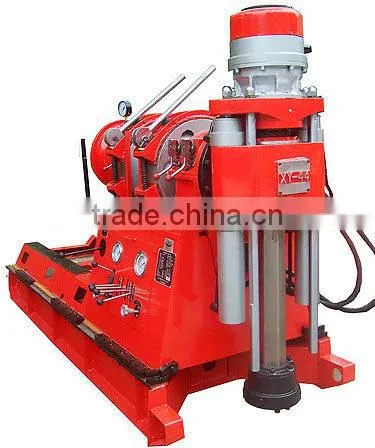

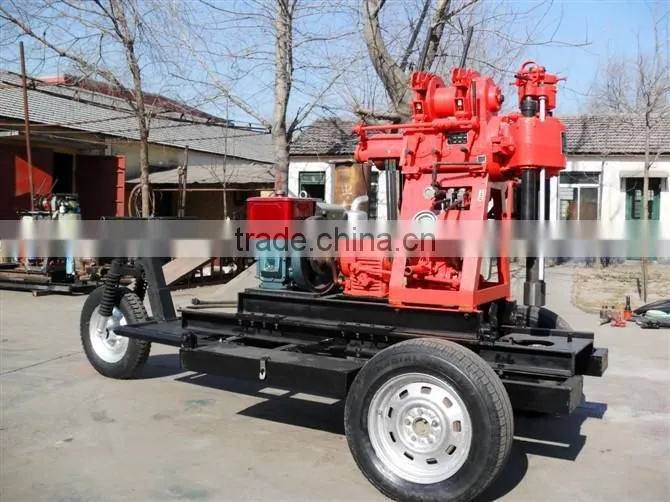

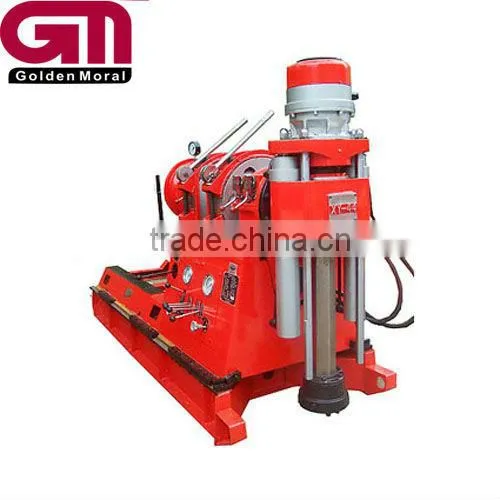

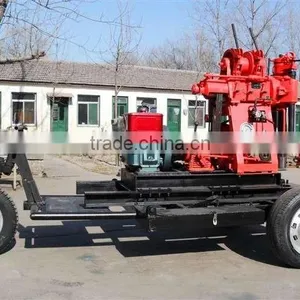

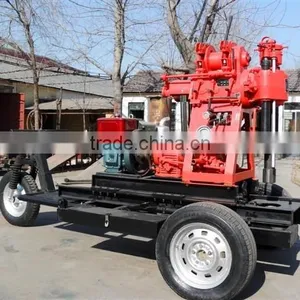

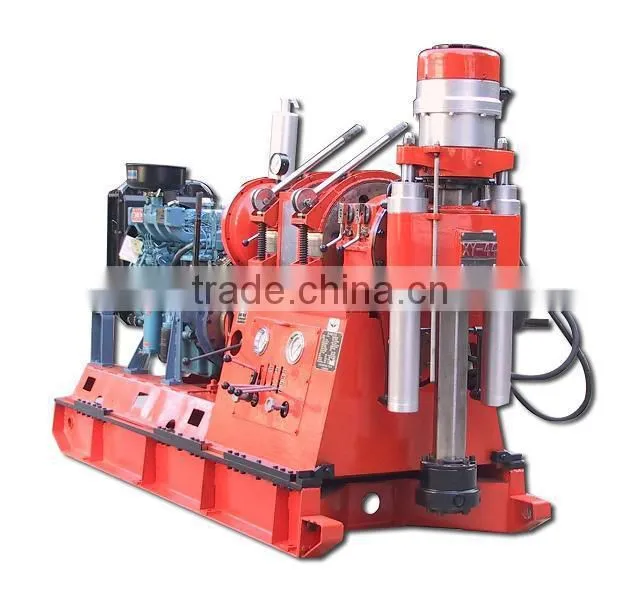

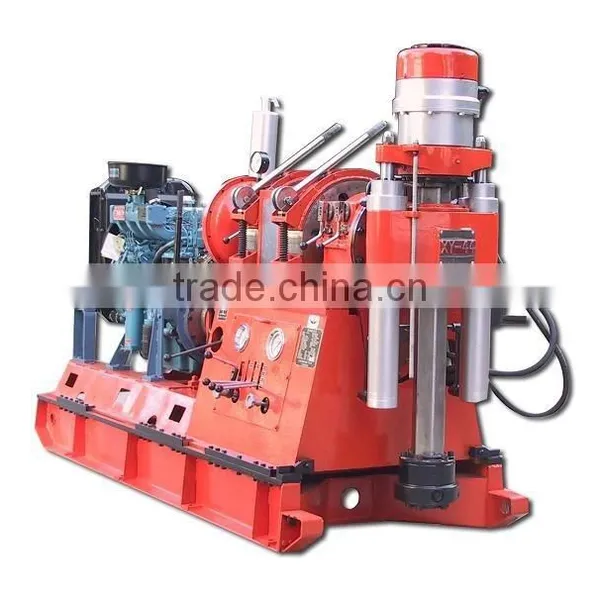

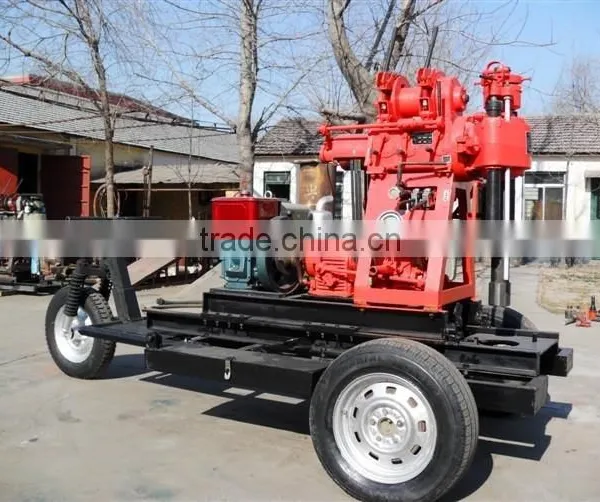

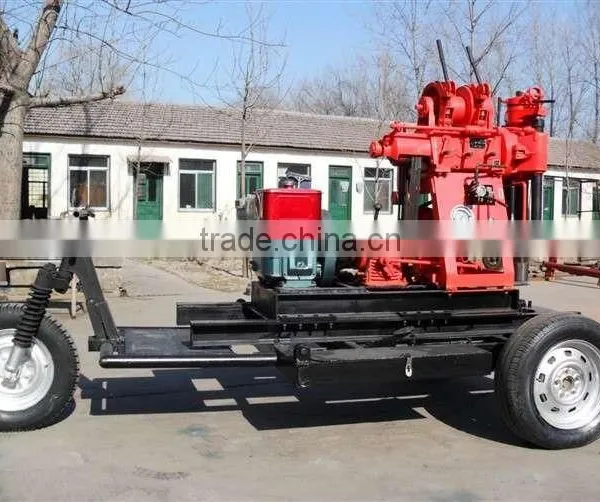

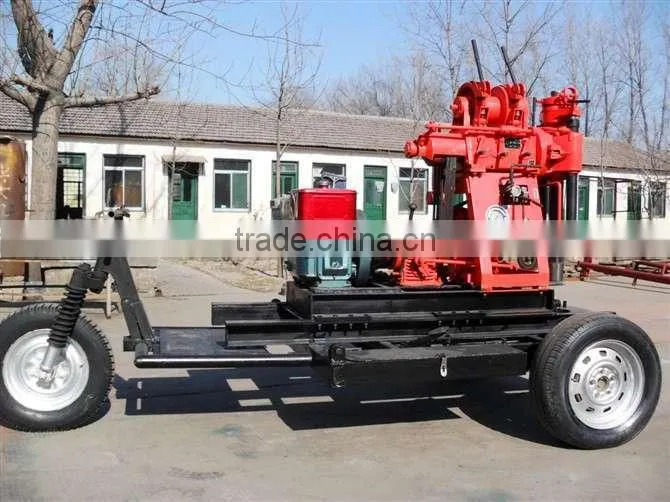

XY-4A Mine drill rig
- 100 Unit / Units per Month
- Ningbo
- T/T Credit Card PayPal
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
Place of Origin: | Fujian, China | Brand Name: | XY-4A Mine drill rig | Model Number: | XY-4A Mine drill rig |
Usage: | Ore | Voltage: | 220V/380V | Power(W): | 15KW |
Dimension(L*W*H): | 3030*1100*1890mm | Weight: | 3500kg | Certification: | CE |
Warranty: | 1 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

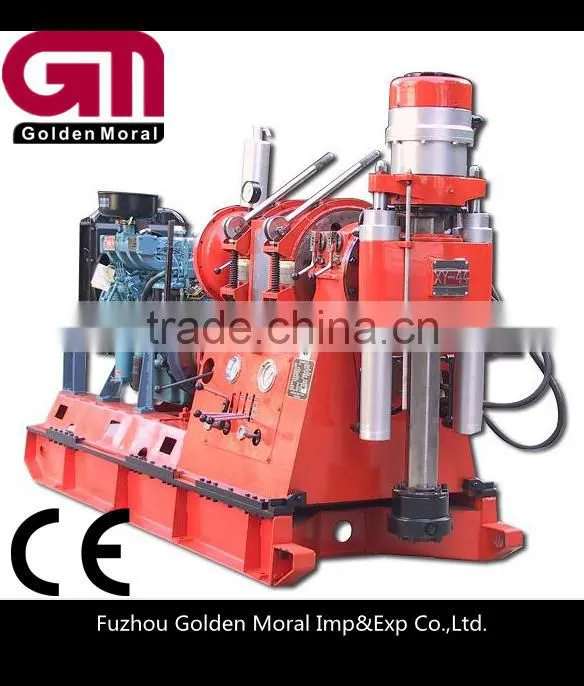

XY-4A Mine drill rig:
adapt to the needs of the current geological exploration ,develop a new product XY-4A type prospecting rig which based on a drilling capacity of XY-4 core drill. Addition to the main use in alloys, diamond core drilling, also be used for engineering geological survey,
Hydrology and water well drilling, as well as large-caliber foundation construction. It is reasonable structure, light weight, large capacity, versatile, stable performance, reliability, standardization, high level of generalization.
Main features:
1, has more speed series (8) and reasonable speed range, low-speed torque (maximum reached 3200N.m). Both suitable alloy, diamond core drilling, can also be used for engineering geological survey, hydrology and water well drilling into the foundation piles construction.
2, hanging scroll through holes large diameter (80mm), double cylinder hydraulic feed, the trip is longer (up to 600mm) process adaptability, especially for large diameter drill pipe rope core (upper coring) drilling, is conducive to improve drilling efficiency and reduce holes accident.
Drilling capacity diameter 71mm rope core drill pipe rated drilling depth of up to 1000m.
Light weight Detachable good, rig Net Weight 2150kg, the host can be decomposed into 10 components (maximum removable parts weight 300kg), removal convenient, appropriate for the mountain areas.
With water brake, deep hole drilling, drilling down smooth and safe.
6, Single Gear oil pump, simple to install, easy to use, less power consumption, the hydraulic system oil temperature is low and stable work. The system is equipped with a hand pump, can be used when the power does not work from the hand pump hole drilling.
Rig structure is compact and reasonable layout, all components revealed outside, do not overlap, ease of maintenance, maintenance and repair.
8, low center of gravity shift car long distance (up to 460mm) fixed firmly, and high-speed drilling and good stability.
9 with shockproof instrument, instrument life long conducive to grasp hole situation, manipulation handle less manipulation of a flexible and reliable.
1, drilling capacity
Drill pipe type drill pipe specifications drilling depth (m)
inside and outside Φ43 × 6 1400
Domestic drill pipe the flat drill pipe Φ54 × 6 1000
Φ67 × 6 830
Within the thicker drill pipe Φ50 × 5.4 1300
Φ60 × 6 950
Wireline coring drill pipe Φ55.5 × 4.75 1400
Φ71 × 5 1000
Φ89 × 5 800
Drilling angle: 0 to 360 °
3, power machine:
Motor Y225S-4 37kW 1480r/min
Diesel engine R4105G53 42kW 1500r/min
4 gyrator
Type: double cylinder hydraulic feed mechanical rotary
Hanging scroll through hole diameter: 80mm
Spindle speed: power head speed (r / min) 1480 (used for core drilling)
Forward low speed (r / min) 80; 148; 212; 308
Forward high-speed (r / min) 247; 456; 650; 945
Inversion (r / min) 66; 201
Vertical shaft Maximum torque: 3.2kN.m
Spindle stroke: 600mm
Hanging scroll largest since gravity: 120kN
The vertical shaft biggest plus pressure: 90kN
5, winch
Type: planetary gear
Rope diameter: 17.5mm6W (16) or 18.5mm6 × 19
Reel of wire rope capacity: (17.5mm) (170kg / square mm) 110m
(18.5mm) (170kg / square mm) 90m
Single rope lifting force: 45kN
When the power machine speed to 1500r/min: 0.70; 1.29; 1.84; 2.68m / s
6 clutch
Type: dry monolithic friction clutch
7 gearbox
Type: sliding gear transmission (n-1 anti-)
8 oil pump
Type: Single Gear oil pump
Displacement: 20ml / r
9, water brake
Operating speed: 700 ~ 1800r/min
Single rope balance speed: 3 ~ 8m / s
Single rope balancing load: 45kN
10, the rack
Type: Skid (skid-speed)
Rig Back Stroke: 460mm
11, Dimensions (L × W × H): 3030 × 1100 × 1890mm
