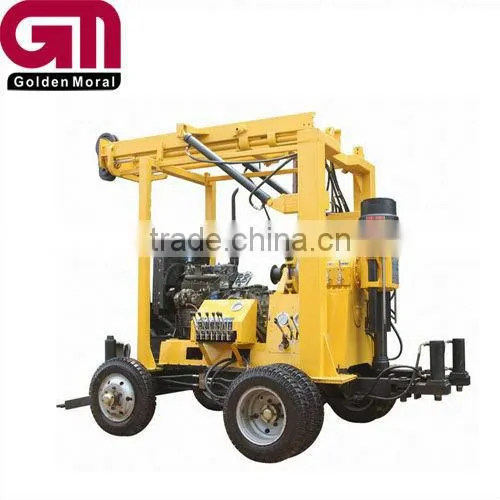

XYX-3 Core Drilling Rig
USD $3,000 - $10,000
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- Ningbo
- T/T Credit Card PayPal
You May Like
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
Place of Origin: | Fujian, China | Brand Name: | XYX-3 Core Drilling Rig | Model Number: | XYX-3 Core Drilling Rig |
Usage: | Ore | Weight: | 1450kg | Certification: | CE |
Warranty: | 1 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
XYX-3 Core Drilling Rig1,Electric start diesel engine
2,High efficiency
3,hydro-automatic feeding device
XYX-3 Core Drilling Rig
Application scope | |||||||
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc. | |||||||
With hydro-automatic feeding device, and high drilling efficiency. | |||||||
Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes. | |||||||
Close levers, convenient to operate, safe and reliable operations. | |||||||
Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving. | |||||||
Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas. |
Drilling depth | 300-600m | |
Maximum open hole diameter | 300mm | |
End hole caliber | 75 | |
Drill rod caliber | 60mm | |
Drilling angle | 90°~65° | |
Drill weight(No include power) | 1450kg | |
Diesel engine/Electric engine | R4105ZD 76HP/Y180L-4 22KW |
