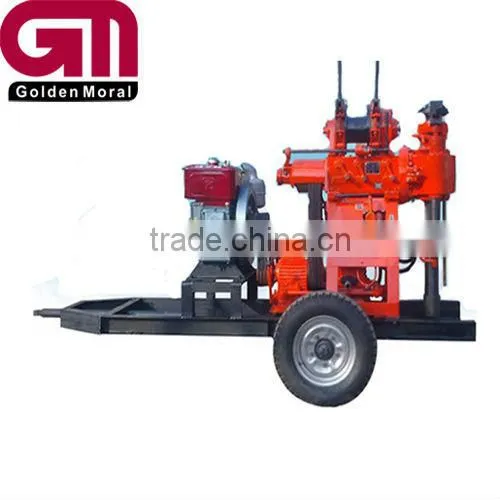

GM XY-180 Core Drilling Rig
- 100 Unit / Units per Month
- Ningbo
- T/T Credit Card PayPal
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
Place of Origin: | Fujian, China | Brand Name: | GM XY-180 Core Drilling Rig | Model Number: | GM XY-180 Core Drilling Rig |
Dimension(L*W*H): | 2.1*0.9*1.3m | Weight: | 610kg | Certification: | CE |
Warranty: | 1 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
GM XY-180 Core Drilling Rig1.failure is low,
2.the parts and durable
3. long service life
4.outstanding performance

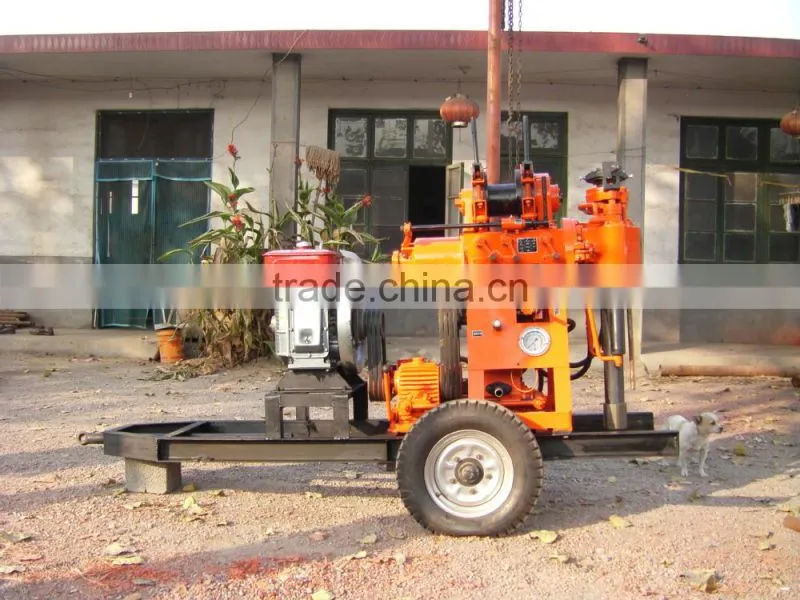

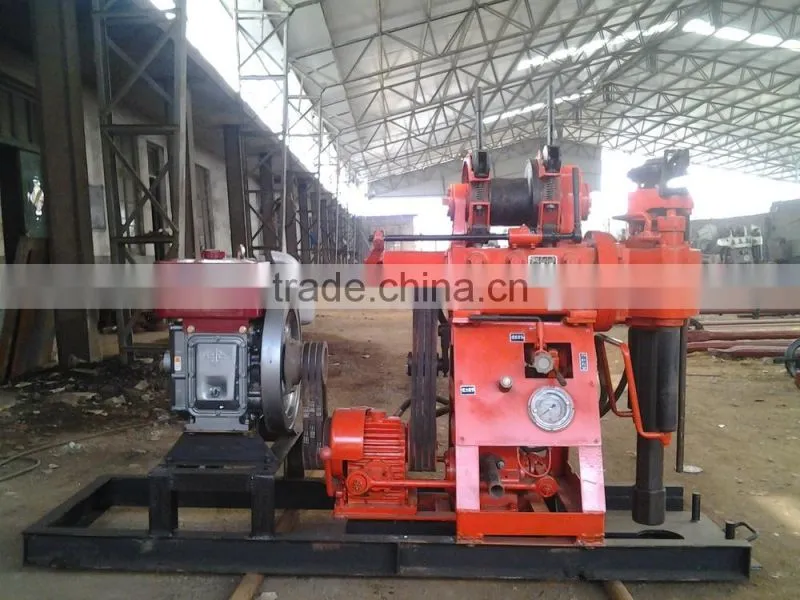

GM XY-180 Core Drilling Rig
Main Features
Easy operation and high efficency as the hydraulic feeding be taken;High speed,improve drilling efficiency;As the ball type chuck,it can complete no-stopping roating while the spindle relift;Two kinds of hexagonal driving lever,use for different geology condition;
Conicity clutch,strong torque and high quanlity
Geological exploration,rodabed and tall building groundsill geology investigation Kinds of survey hole in concrete structures.
Specifications | ||
Unity machine parameter | ||
Drilling depth | 100 180m | |
Drill rod caliber | 50 42mm | |
End hole caliber | 75 46mm | |
Maximum open hole caliber | 220mm | |
Drilling angle | 90°~75° | |
Unity machine dimensions | 2.1×0.9×1.3m | |
Drill weight (No include power) | 610kg | |
Spindle | ||
spindle speed | 130 300 480 730 830 1045r/min | |
Spindle stroke | 450mm | |
Hoist | ||
Max.single line hoisting capacity | 11KN | |
Single line lifting speed | 1.06 0.67 0.32m/s | |
Tightrope caliber | 9.3mm | |
Tightrope cubic measure | 35m | |
Hug floodgate belt width | 50mm | |
Hug floodgate caliber | 240mm | |
Mud pump | ||
Type | Horizontal single urn twin-action | |
Displacement | 95 77L/min | |
Diesle engine | s1105 18HP | |
Electric motor | Y160M—4 11KW | |
Maximum pressure | 1.2Mpa | |
Work pressure | 0.7Mpa |
