Specifications
SX956 Wheel Loader SX956 FRONT WHEEL LOADERDIMENSION: 8110*3070*3400mm
RATED LOAD: 5000KG
GOOD EQUIPMENT

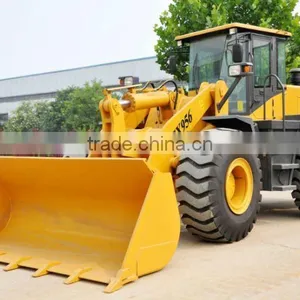

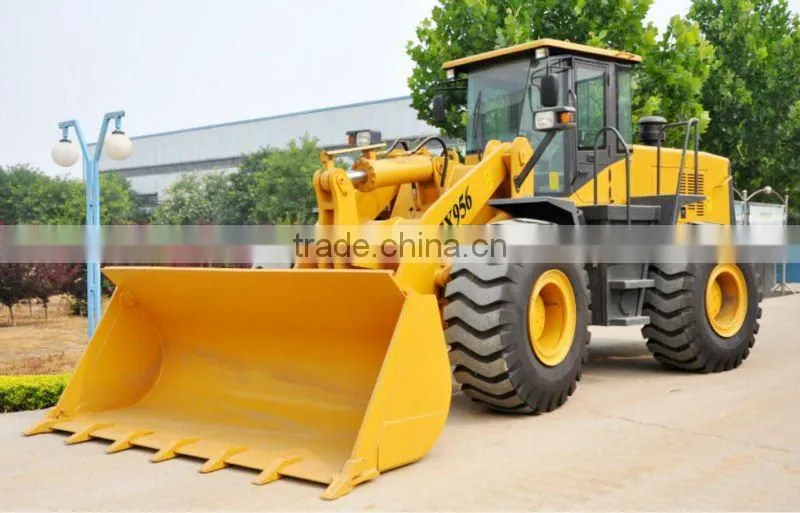

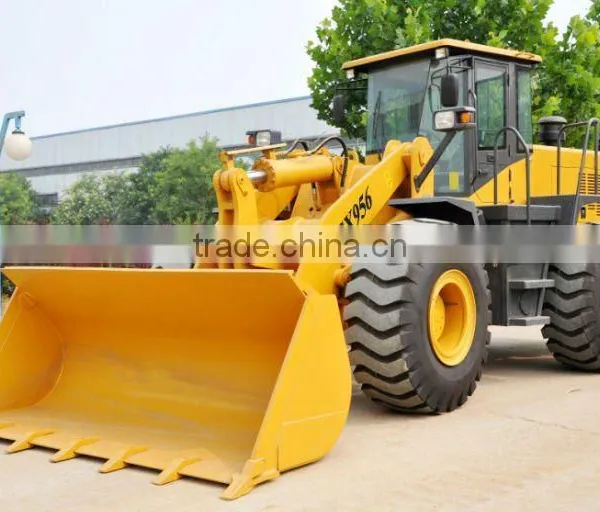

SX956 Wheel Loader SX956 FRONT WHEEL LOADER
Wheel Loader
SX956 Wheel Loader
SX956 wheel loader (king of high dump coal loader), whose bucket capacity has reached 3.5m³, dump height 3300mm, is specially used on coal yards, coke yards, goods yards and harbors for truck, cargo ship’s loading job. It owns lengthened moving arms, advanced performance, low energy consumption, and highest working efficiency.
Items | Specifications | Items | Specifications |
Rated capacity | 3.5 cubic metre | Transmission system | Gear box and torque-converter, the whole unit |
Rated weight | 5000kg | Torque-converter model | SWYJ315-6 |
Operating weight | 16500kg | Type | Double-turbine |
Automatic leveling ability | Yes | Transmission box type | Full power shift, planetary power chang-shift type |
Static tilting load | 110KN | Number of gear shift | 2forward and 1 reverse |
Max breakout force | 175KN | Max travel speed | 36km/h |
Max drawing force | 145KN | Front and rear axle |
|
Max grade ability | 30° | Main reducer type | Single stage spiral reduction |
Max.dump height | 3300mm | Final reducer | Single stage planetary |
Max.dump reach | 1285mm | Tire |
|
Min.ground clearance | 410mm | Size | 23.5-25 |
Wheel base | 3200mm | Front wheel air pressure | 343kpa |
Tread | 2250mm | Rear wheel pressure | 304kpa |
Lifting time | 6.5s(full load ) | Steering system |
|
Total cycle time(lifting, dumping, lowering) | 12s(full load) | Type | Coaxes flow-amplified, |
Overall dimensions (l×w×h)mm | 8110×3070×3400 | steering angle | 35°±1 respectively left/right |
Engine | Wei chai engine (Chinese famous brand) | Min turning radius | 6288mm(outside of rear wheel) |
Model | WD615G.20 | Hydraulic system |
|
Type | In line, water cooled, four stroke, direct inject | Type | Twin pumps merging |
Rated power | 162KW | Distribution valve | DF32.2 |
Rated rotation speed | 2200r/min | Gear pump | GBGj3100 |
Min oil consumption ratio | 214g/kw.h | Brake system |
|
|
| Service brake | Air assisted oil disc type four-wheel brake |
|
| Parking brake | Air off control inner expand hoof |
|
| Fuel tank capacity | 125L |
