Specifications
SX912 Wheel Loader SX912 front wheel loader Mini Wheel LoaderMini Wheel Loader wheel loader
Brand New wheel loader
front whe

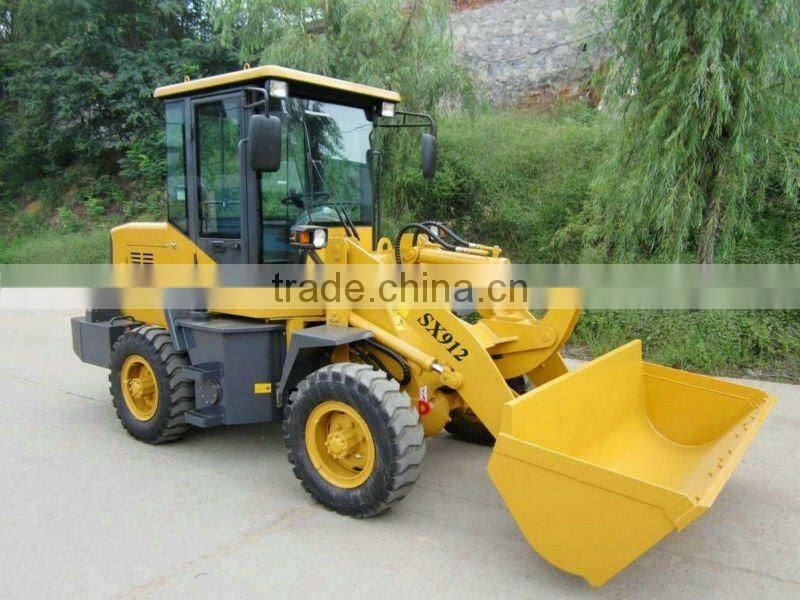

SX912 Wheel Loader SX912 front wheel loader
SX912 Wheel Loader
Wheel Loader
Mini Wheel Loader
Mini Wheel Loaderwheel loader
Brand New wheel loader
front wheel loader
Adopt Jiangsu Changchai four cylinder diesel engine.
*Adopt hydrodynamic drive, separate device, reliable, and easy for maintenance.
*Power-shift transmission technology, two forward and two reverse shift.
*Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
*Load sensing fully hydraulic steering system makes operation easy.
*Air over hydraulic brake system; Caliper disc brakes.
*Working device with automatically leveling ability at high position.
*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
*Integral, luxury instrument board; New, luxury cabin.
Item |
Specifications |
Item |
Specifications |
Bucket capacity |
0.6 m3 |
Min. turning radius (outside of rear wheels) |
3600mm |
Rated load |
1200 kg |
steering angle |
L/R 35º |
Dumping height |
2650 mm |
Min. ground clearance |
260mm |
Dumping reach |
900 mm |
Wheel base |
1820mm |
Boom lifting time |
4.0S |
Tread |
1400mm |
Total cycling time |
8 S |
Engine model |
4L68 |
Max. speed |
18km/h |
Rated power |
33kW/2400rpm |
Max. breakout force |
36 kN |
Tyre |
11.00-16 |
Max.drawing force |
26kN |
Overall dimensions |
5060*1680*2450mm |
Max. Gradeability |
28° |
Operating weight |
3200kg |
