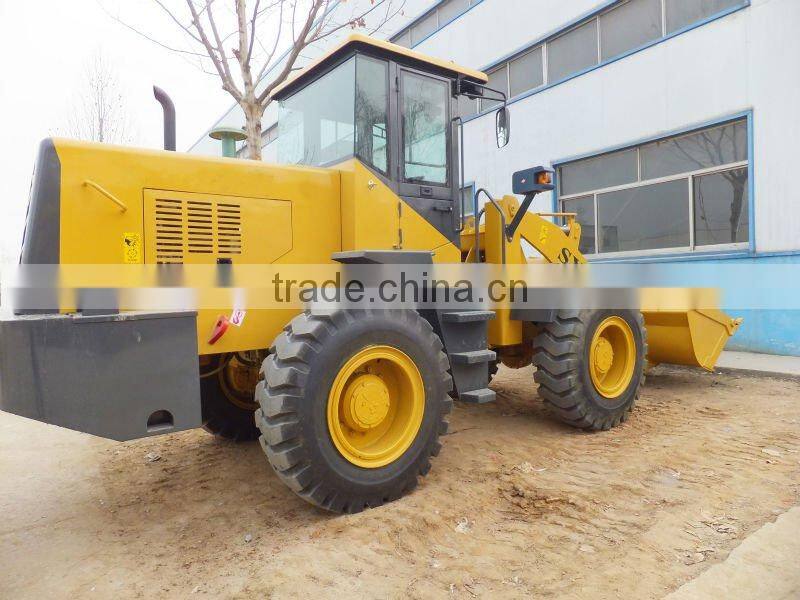

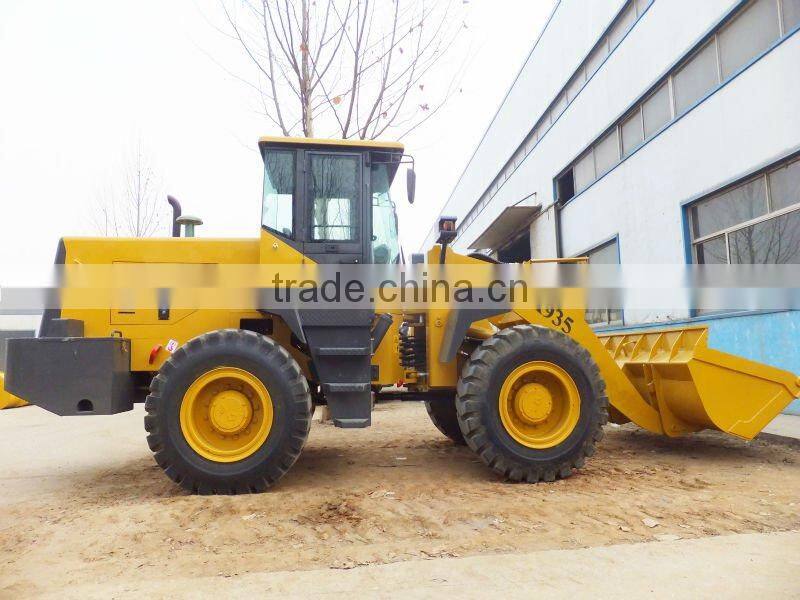

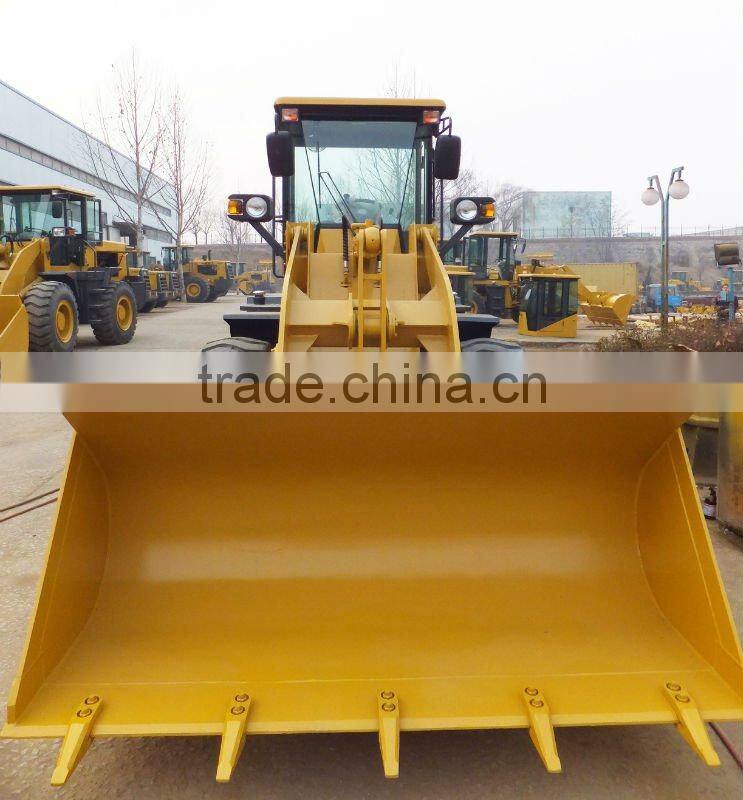

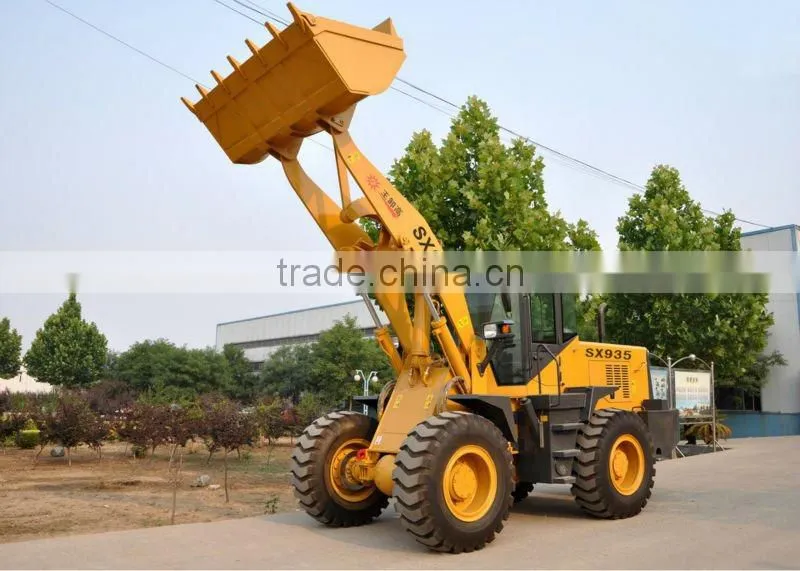

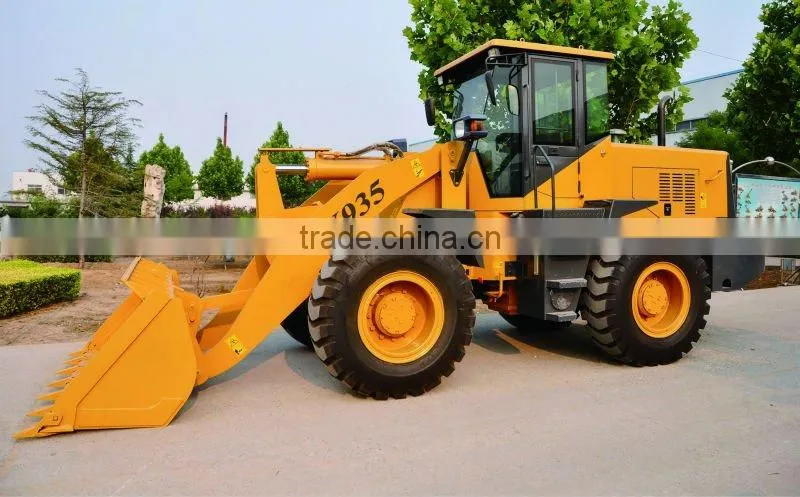

Help CenterCHINA Self-developed SX935 3.0T Wheel Loader(ZL30) With CE,construction Machine/equipment Parts
Related Products
-
5t Wheel Loader With CE(SX959),construction Machine/equipment PartsNegotiableMOQ: 1 Set -
3.5t Wheel Loader With CE(SX935),construction Machine/equipment PartsNegotiableMOQ: 1 Set
-
2.0t Mini Wheel Loader With CE(SX920),construction Machine/equipment PartsNegotiableMOQ: 1 Set
-
1.5t Mini Wheel Loader With CE(SX915),construction Machine/equipment PartsNegotiableMOQ: 1 Set
-
1.2t Wheel Loader, Industrial or Family Machine With CE,construction Machine/equipment PartsNegotiableMOQ: 1 Set
Specifications
1.3.0T Wheel Loader zl30 with ce2.Compective Price with OEM Self-developed
3.More optional can meet your requiry.
Main blade adopts wear-resisting material, added with replaceable auxiliary blade and bucket tooth, largely prolong the lifetime of work device.
Items |
Specifications |
Items |
Specifications |
Rated capacity |
1.7m³ |
Transmission system |
Gear box separated from torque-converter |
Rated weight |
3000kg |
Torque-converter model |
YJ315x |
Operating weight |
9800kg |
Type |
Three-element, single stage |
Automatic leveling ability |
Yes |
Transmission box type |
Full power shift, countershaft type |
Static tilting load |
58.8KN |
Number of gear shift |
4 forward and 2 reverse |
Max breakout force |
120KN |
Max travel speed |
36km/h |
Max drawing force |
90KN |
Front and rear axle |
|
grade ability |
30° |
Main reducer type |
Single stage spiral reduction |
Max.dump height |
3050mm |
Final reducer |
Single stage planetary |
Max.dump reach |
1105mm |
Tire |
|
Min.ground clearance |
410mm |
Size |
17.5-25 |
Wheel base |
2600mm |
Front wheel air pressure |
343kpa |
Tread |
1800mm |
Rear wheel air pressure |
294kpa |
Height with bucket at full raise |
4870mm |
Steering system |
Fully hydraulic steering |
Lifting time |
5.5s(full load ) |
steering angle |
35°±,135°±1 respectively left/right |
Total cycle time(lifting, dumping, lowering) |
9.67s(full load) |
Min turning radius |
5160mm
|
Overall dimensions (l×w×h)mm |
6990*2420*3000 |
Hydraulic system |
|
Engine |
Yuchai engine shares co.,ltd |
Distribution valve |
DF25.2C |
Model |
YC6B125-T10 |
Gear pump |
GBGV2100 |
Type |
In line, water cooled, four stroke, direct.inject |
Brake system |
|
Rated power |
92KW |
Service brake |
Air assisted oil disc type four-wheel brake |
Rated rotation speed |
2200r/min |
Parking brake |
Soft axis, cable control |
Min oil consumption |
235g/kw.h |
Fuel tank capacity |
125L |
THIS IS SHANDONG SENXIN CONSTRUCTION MACHINERY GROUP
1.SPECIAL IN EXPORTING ALL KINDS OF HEAVY CONSTRUCTION MACHINERY,(WHEEL LOADERS,LUXURY MINI LOADERS,SMALL EXCAVATORS,AND SOME OTHER ROAD CONSTRUCTION MACHINES)
2.GENUINE SPARE PARTS FOR SDLG,LIUGONG,LONGKING,XCMG,ZF TRANSMISSION AND OTHER CHINESE BRANDS ARE ALL AVAILABLE AT FAVORABLE PRICE FOR THE FIRST HAND FROM FACTORY.
3.8 YEARS EXPORTING EXPERIENCE CAN BRING YOU THE HIGH EFFICIENCY AND SAVE YOUR BUDGET
