Specifications
SXM610 MINI WHEEL LOADER MINI FRONT WHEEL LOADERDIMENSION: 4450/1430/2370mm
RATED LOAD 1000kg
SXM610 MINI WHEEL LOADER MINI FRONT WHEEL LOADER

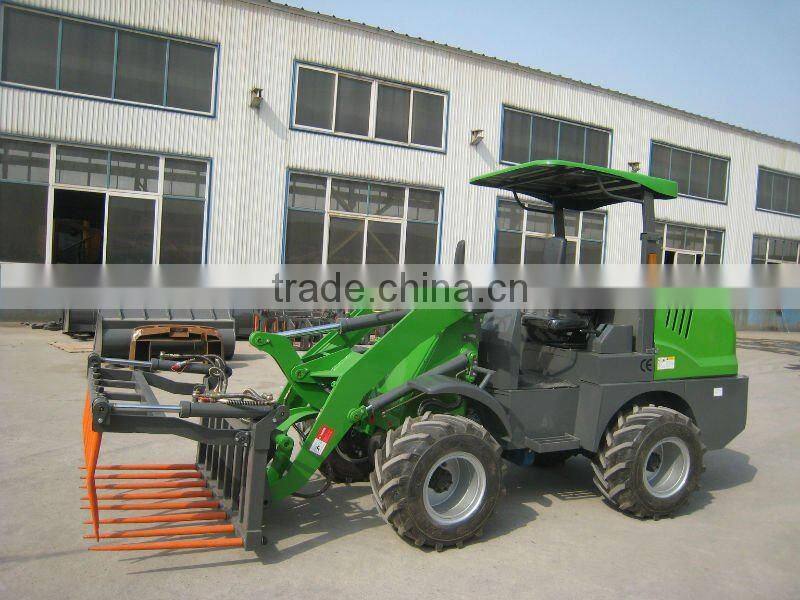

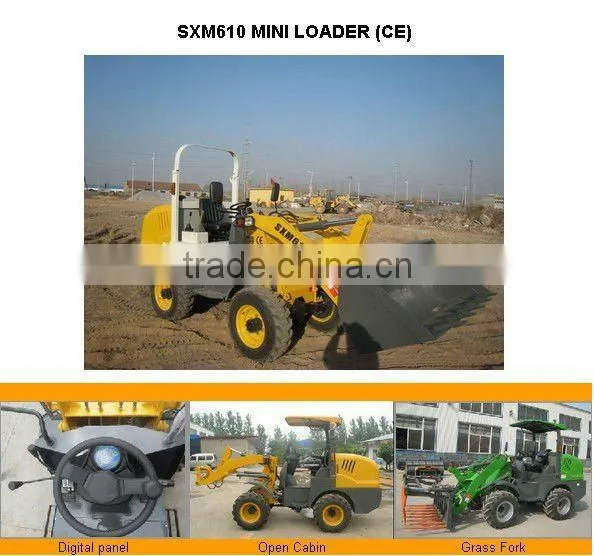

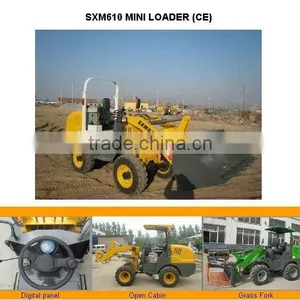

SXM610 MINI WHEEL LOADER
Shandong Senxin Construction Machinery Group and Shandong Senxin Trade Co.,Ltd . specialized in marketing of top quality heavy construction equipment from China, including China wheel loaders, mini loader,small wheel loader, backhoe loader, skid steer loader, excavator, motor graders, forklift, bulldozer
Features:
1. SXM610 small wheel loader uses the inline. Direct injection, water-cooled, four-stroke engine with excellent cod start performance. Powerful energy. Reliable function and efficient energy saving.
2. Full hydraulic drive system. Low consumption drive. Stable and simple operation, 2 gear hydraulic variable speed changes.
3. The streamline design makes the appearance attractive and modern.
4. The driving cab uses hardened molding glass with broad view and more safe.
5. SXM610 small wheel loader has flexible link and is equipped with new dashboard and adjustable steering column. Which can reduce vibration and make the operation convenient and comfortable.
6. SXM610 small wheel loader has quick change system. Can change the front part very fast.
7. Hydraulic brake system, Drum brake.
8. Manual quick change system. Very easy. One man can operate.
Rated load | 1000kg |
Bucket capacity | 0.5m3 |
Unload height | 2262mm |
Unloading Clearance | 741mm |
Max tractiv force | 35kN |
Kerb weight | 2690kg |
Turning Angle | 35° |
Mini Turning Radius | 3879 mm |
Ground Clearance mm | 240 mm |
Engine | XINCHAI EURO III, B490BPG, diesel, 4 cylinders, direct injection,32.4 kW/2400rpm, displacement 2.54l.OPTION Yanmar EURO III, 4TNV-88-BS, diesel, 4 cylinders, direct injection,25.2 kW/34.3HP/2200rmp, displacement 2.19l |
Transmission | Hydrostatic transmision . 4WD Fully hydraulic drive .2 gear hydraulic variable speed changes |
Speed |
|
Forward I | 0 - 7 km/h |
Forward II | 0 - 24 km/h |
Reverse I | 0 - 7 km/h |
Reverse II | 0 - 24 km/h |
Working Hydraulic Pressure | 22Mpa |
Lifting time | 4s |
Lowering time | 3.5s |
Three cycle time | 9s |
Tyres | 10.0-16.5 (optional 12.0-16.5, 16.5/70 tractive) |
(Length*width*height)mm | 4450/1430/2370 |
track base | 1160 mm |
wheel base | 1710 mm |
