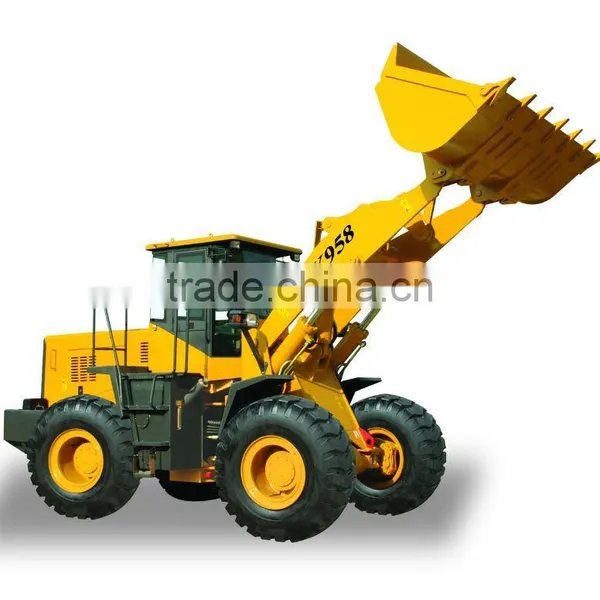

SX958 (5.0T 0.3CBM Capacity CE Approved) Wheel Loader

Items

Specifications

Items

Specifications

Rating carrying capacity(kg)

5000

Body steering angle(^oC)

38±1

Over all weight(kg)

17100

Rear axle swinging angle(^oC)

±12

Rating power(kw)

162

Wheel base(mm)

3200

Rating rotational speed(r/min)

2200

Wheel tread(mm)

2250

Maximum dump height(mm)

3150(Without tooth)

Minimum ground clearance(mm)

450

3018(With teeth)

Maximum climbing capacity(^oC)

30

Maximum dump reach(mm)

1250(Without tooth)

Digging Depth(mm)

220

1350(With teeth)

Rating bucket capacity(m³)

3

Maximum dig force

Oil cylinder of rotating bucket(KN)175

Angle of discharge at random position

≥45^o±1 ^o

Lifting oil cylinder(KN)115

Upturning Position angle of bucket

Highest position 54^o±1 ^o

Lowest position 45^o±1 ^o

Maximum tractive force(KN)

152

Bucket conveying position 50^o±1 ^o

Speed of respective gears(km/h)

Forward gear one8±1 Forward gear two 15±1

Function of leveling automaticlly

Yes

Forward gear three 23±1 Forward gear four 38±1

Minimum turning radius

6640±50

Reverse gear one8±1 Reverse gear two 15±1

Engine type

WD615G.220

Reverse gear three 23±1 Reverse gear four 38±1

Torque converter model

YJ375

Action time of work installment(s)

Lifting with full load 5.95±0.2

Gearbox mode

Power shift,normally engaged straight gear

Lowering time of moving arm 3.5±0.3

Drive axle

Main reducing spiral:Bevel gear grade 1 reduction

Discharge time of bucker1.5±0.1

Decelerating Mode:Planetary reduction,grade 1

Tyre model

23.5—25

Sum of the three

10.95±0.5

Extra dimension(mm)

Total length7920 Total width 2880(outboard side of the wheels) 3050(Width of bucket) total height 3400
