Specifications
Mini wheel loader own factoryAdopt 4 cylinder diesel engine
Rated load:2000kg
Adopt hydrodynamic drive
Delivery time:15days

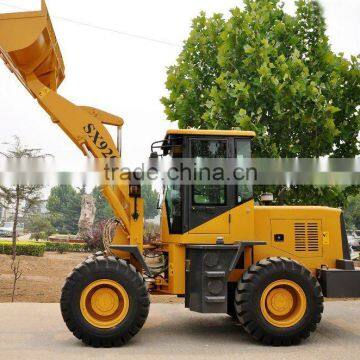

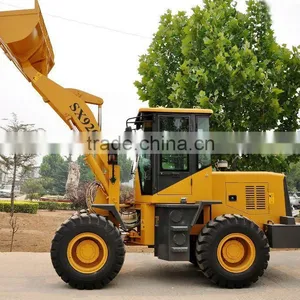

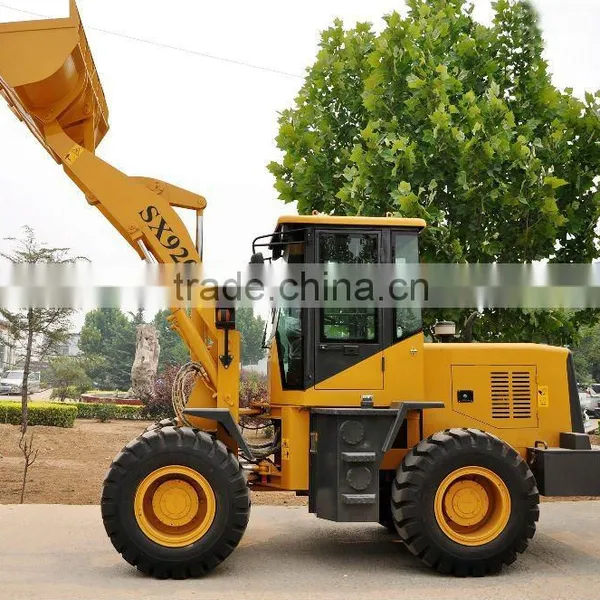

SX920 Mini Wheel Loader Parameter
1. YTO diesel engine is adopted, with strong power.
2. Applying hydrodynamic transmission technology, single stage, 3 elements torque
converter owns simple structure and high reliability.
3.Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.
4.Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
5.Mini wheel loader with double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
6.Load sensing fully hydraulic steering system makes operation easy.
7. Air over hydraulic brake system; Caliper disc brakes.
8. Mini wheel loader working device with automatically leveling ability at high position.
9.Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
10.Mini wheel loader with Integral, luxury instrument board; new luxury cabin.
Items | Specifications | Items | Specifications |
Bucket capacity | 1.1 m3 | Min. turning radius | 4600mm |
Rated load | 2000 kg | (outside of rear wheel) | |
Dumping height | 2750 mm | Steering angle | 35º each direction |
Dumping reach | 920 mm | Min. ground clearance | 320mm |
Bucket lifting time | 5 S | Wheel base | 2350mm |
Total cycle time | 9 S | Tread | 1500mm |
(lifting+ dumping+ lowering ) |
| Engine model | LR4018G |
Max. travel speed | 25km/h | Rated engine power | 60kW@2400rpm |
Max. breakout force | 55 kN | Tire | 16/70-20 |
Max.drawing force | 45 kN | Overall dimensions (L*W*H) | 5880*2060*2750mm |
Max. grade ability | 30° | Operating weight | 6000kg |
