Specifications
Wheel Loader SX912Rated load:1200 kg

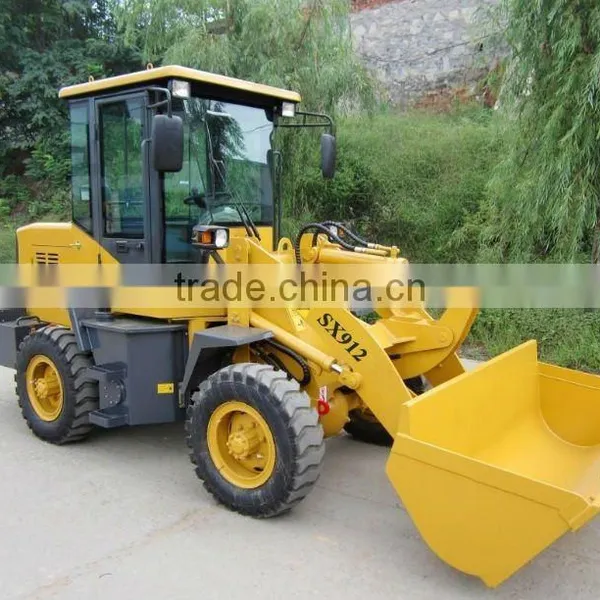

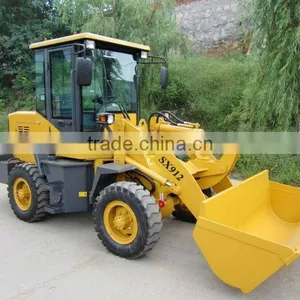

SX912 WHEEL LOADER
*Adopt Jiangsu Changchai four cylinder diesel engine.
*Adopt hydrodynamic drive, separate device, reliable, and easy for maintenance.
*Power-shift transmission technology, two forward and two reverse shift.
*Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
*Load sensing fully hydraulic steering system makes operation easy.
*Air over hydraulic brake system; Caliper disc brakes.
*Working device with automatically leveling ability at high position.
*Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
*Integral, luxury instrument board; New, luxury cabin.
Item |
Specifications |
Item |
Specifications |
Bucket capacity |
0.6 m3 |
Min. turning radius (outside of rear wheels) |
3600mm |
Rated load |
1200 kg |
steering angle |
L/R 35º |
Dumping height |
2650 mm |
Min. ground clearance |
260mm |
Dumping reach |
900 mm |
Wheel base |
1820mm |
Boom lifting time |
4.0S |
Tread |
1400mm |
Total cycling time |
8 S |
Engine model |
4L68 |
Max. speed |
18km/h |
Rated power |
33kW/2400rpm |
Max. breakout force |
36 kN |
Tyre |
11.00-16 |
Max.drawing force |
26kN |
Overall dimensions |
5060*1680*2450mm |
Max. Gradeability |
28° |
Operating weight |
3200kg |
