We, Shandong Senxin Construction Machinery Group is the professional supplier of the heavy equipment and related spare parts.
Heavy equipment: Wheel loader, Backhoe loader, Skid steer loader, Excavator, Road roller, Bulldozer
and Motor grader.
Brand: SDLG, XCMG, SHANTUI, LIUGONG,SENX.

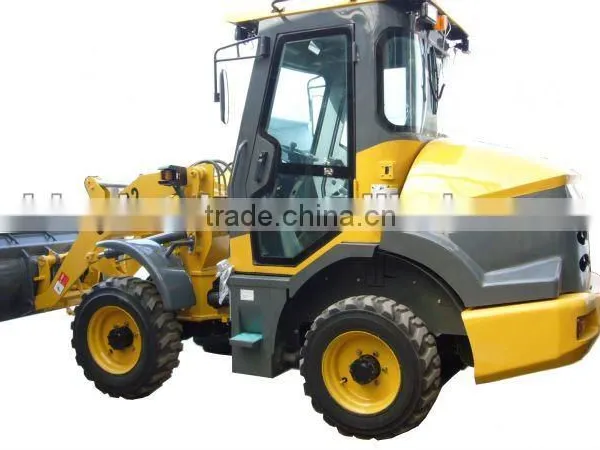

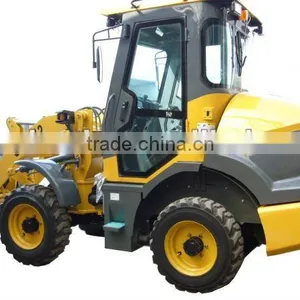

Articulated Mini Loader Self-developed Small Wheel Loader
Technical specificaitons
Rated load |
1200kg |
Bucket capacity |
0.54m3 |
Unload height |
2420mm |
Unloading Clearance |
850mm |
Max drawing force |
35kN |
Operating weight |
2910kg |
Turning Angle |
35° |
Mini Turning Radius |
3750 mm |
Mini Ground Clearance mm |
230 mm |
Engine |
Xinchai B490BPG engine,32.4KW |
Transmission |
Hydrostatic transmision . 4WD Fully hydraulic drive .2 gear hydraulic variable speed changes |
Speed |
|
Forward I |
0 - 7 km/h |
Forward II |
0 - 24 km/h |
Reverse I |
0 - 7 km/h |
Reverse II |
0 - 24 km/h |
Working Hydraulic Pressure |
22Mpa |
Lifting time |
4s |
Lowering time |
3.5s |
Three cycle time |
9s |
Tyres |
10.0-16.5 (optional 12.0-16.5, 16.5/70 tractive) |
(Length*width*height)mm |
4450/1430/2470mm |
track base |
1160 mm |
wheel base |
1710 mm |
Optional: XINCHAI EURO III engine,Japan Yanmar engine.Hydraulic quick hitch, Pilot Control & Joystick, Canopy,Cabin, Pallet Fork, Grass Fork, Wood Grapple, Snow Dozer, 4 in1 Bucket, Sleeve Bucket, Bigger Tyre
