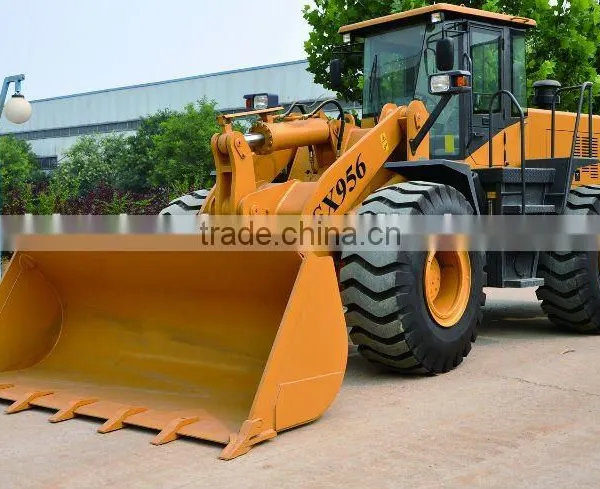

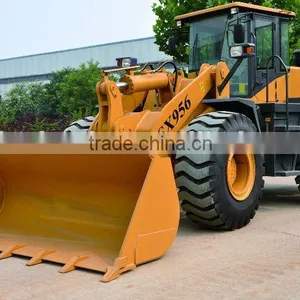

Self-developed SENX SX956 5.0T Large/super Wheel Loader With ce

Name: Self-developed SENX SX956 5.0T Large/super Wheel Loader With ce
Brand: SENXIN WHEEL LOADER
SKU: 141078500
Availability: InStock

US$ 16,000 - 19,000 MOQ: 1 Set

Key Specifications

Condition:

New, New

Brand Name:

SENXIN WHEEL LOADER

Model Number:

SX956 WHEEL LOADER

Shandong Senxin Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Brand Name SENXIN WHEEL LOADER

Model Number SX956 WHEEL LOADER

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8110*3070*3400

Rated Load 5.0T

Specifications

1.Super wheel loader
2.4102G diesel engine
3.Double sealed hydraulic pipline
4.Self-developed loaders

Items	Specifications	Items	Specifications
Rated capacity	3.0m³	Transmission system	Gear box and torque-converter, the whole unit
Rated weight	5000kg	Torque-converter model	SWYJ315-6
Operating weight	16500kg	Type	Double-turbine
Automatic leveling ability	Yes	Transmission box type	Full power shift, planetary power chang-shift type
Static tilting load	110KN	Number of gear shift	2forward and 1 reverse
Max breakout force	175KN	Max travel speed	36km/h
Max drawing force	145KN	Front and rear axle
Max grade ability	30°	Main reducer type	Single stage spiral reduction
Max.dump height	3300mm	Final reducer	Single stage planetary
Max.dump reach	1285mm	Tire
Min.ground clearance	410mm	Size	23.5-25
Wheel base	3200mm	Front wheel air pressure	343kpa
Tread	2250mm	Rear wheel pressure	304kpa
Lifting time	6.5s(full load )	Steering system
Total cycle time(lifting, dumping, lowering)	12s(full load)	Type	Coaxes flow-amplified, pressure-compensated
Overall dimensions (l×w×h)mm	811030703400	steering angle	35°±1 respectively left/right
Engine	Wei chai engine (Chinese famous brand)	Min turning radius	6288mm(outside of rear wheel)
Model	WD615G.20	Hydraulic system
Type	In line, water cooled, four stroke, direct inject	Type	Twin pumps merging
Rated power	162KW	Distribution valve	DF32.2
Rated rotation speed	2200r/min	Gear pump	GBGj3100
Min oil consumption ratio	214g/kw.h	Brake system
		Service brake	Air assisted oil disc type four-wheel brake
		Parking brake	Air off control inner expand hoof
		Fuel tank capacity	125L
