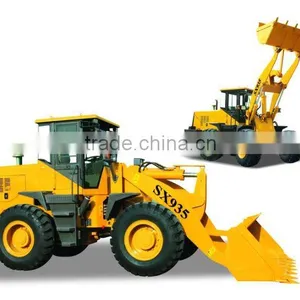

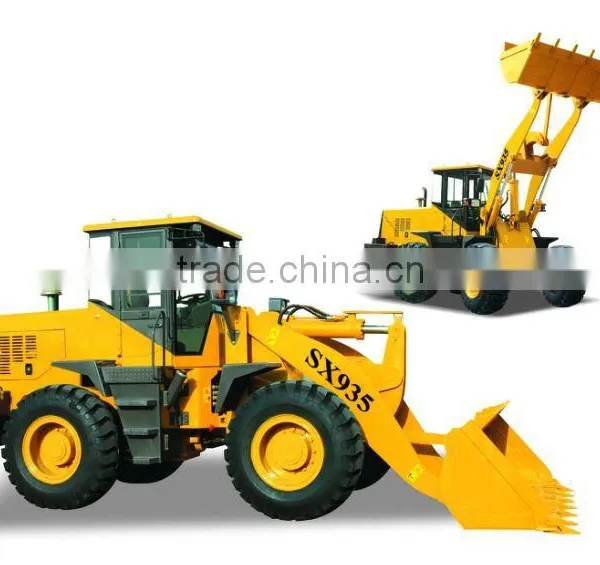

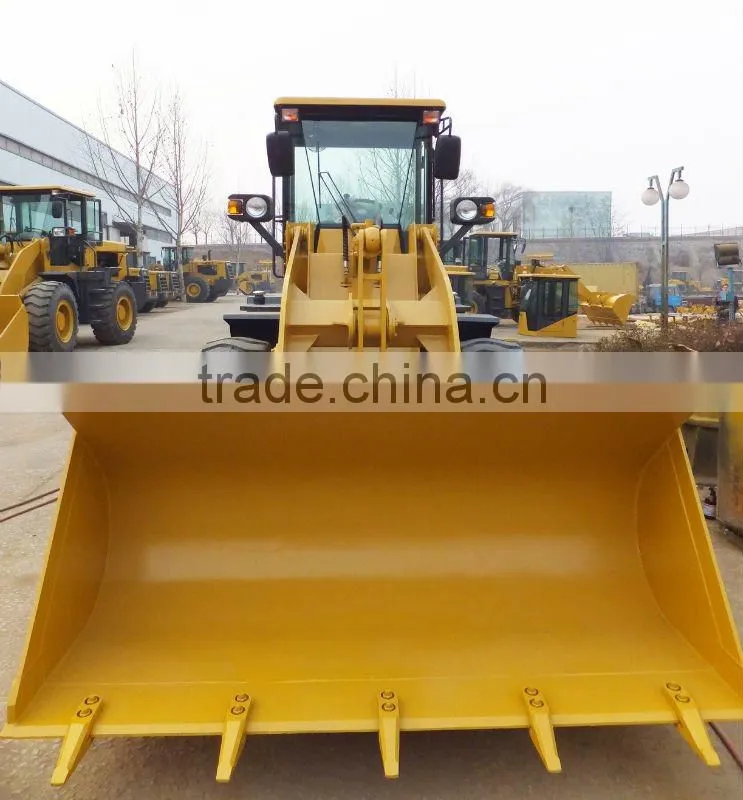

CHINA Self-developed SX935 3.0T Front Wheel Loader With CE

Name: CHINA Self-developed SX935 3.0T Front Wheel Loader With CE
Brand: SENXIN
SKU: 141078502
Availability: InStock

US$ 15,000 - 19,500 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

SENXIN

Model Number:

SX935 wheel loader

Shandong Senxin Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SENXIN

Model Number SX935 wheel loader

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 6990*2420*3000

Rated Load 3000kg

Specifications

1.3.0T Wheel Loader (CE Approved)
2.Compective Price with OEM Self-developed
3.More optional can meet your requiry.

Main blade adopts wear-resisting material, added with replaceable auxiliary blade and bucket tooth, largely prolong the lifetime of work device.

Items	Specifications	Items	Specifications
Rated capacity	1.7m³	Transmission system	Gear box separated from torque-converter
Rated weight	3000kg	Torque-converter model	YJ315x
Operating weight	9800kg	Type	Three-element, single stage
Automatic leveling ability	Yes	Transmission box type	Full power shift, countershaft type
Static tilting load	58.8KN	Number of gear shift	4 forward and 2 reverse
Max breakout force	120KN	Max travel speed	36km/h
Max drawing force	90KN	Front and rear axle
grade ability	30°	Main reducer type	Single stage spiral reduction
Max.dump height	3050mm	Final reducer	Single stage planetary
Max.dump reach	1105mm	Tire
Min.ground clearance	410mm	Size	17.5-25
Wheel base	2600mm	Front wheel air pressure	343kpa
Tread	1800mm	Rear wheel air pressure	294kpa
Height with bucket at full raise	4870mm	Steering system	Fully hydraulic steering
Lifting time	5.5s(full load )	steering angle	35°±,135°±1 respectively left/right
Total cycle time(lifting, dumping, lowering)	9.67s(full load)	Min turning radius	5160mm
Overall dimensions (l×w×h)mm	699024203000	Hydraulic system
Engine	Yuchai engine shares co.,ltd	Distribution valve	DF25.2C
Model	YC6B125-T10	Gear pump	GBGV2100
Type	In line, water cooled, four stroke, direct.inject	Brake system
Rated power	92KW	Service brake	Air assisted oil disc type four-wheel brake
Rated rotation speed	2200r/min	Parking brake	Soft axis, cable control
Min oil consumption	235g/kw.h	Fuel tank capacity	125L
