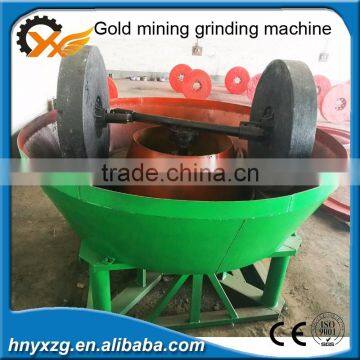

Yuxiang machinery Good profit stone mill china wet pan mill for gold
here goes the product working viedo: https://youtu.be/Z_PzLuXl1_k
|
Wet pan mill/Gold grinding machine is the best equipment to replace ball mill. because it have small investment, high output, low production cost, good efficiency and easy installation. And the machine is the ideal beneficiation equipment for small and medium-sized enterprise. Gold grinding machine is mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. |
| The wet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore. Above all, 1200a type is the most popular and widely use. | |
In Sudan, at least 85% gold miners are using the Gold Grinding Machine (wet pan mill) in there gold processing system.
Working principle of wet pan mill
|
The machine repeatedly squeeze and mill gold ore through the weight of the wheels until the gold ore has been crushed completely. And then add 1 kg mercury into the water . Meantime, every 5-10 minutes, add gold ore to the machine. After 24 hours, recycle mercury. Then pack mercury with big density of cloth. Twist the cloth and let the mercury come out. The gold will be left in the cloth. |
| Model | Dia of grinding wheel(mm) | Thickness of grinding wheel(mm) | Dia of grinding pan(mm) | Thickness of grinding pan(mm) | Working surface of wet pan mill(mm) |
Speed (r/min) |
Power (kw) |
Weight (t) |
| YX-1600A | 1600±10 | 400±10 | 2100±10 | 200±10 | 500±10 | 20-22 | Y6-37 | 14.5 |
| YX-1500A | 1500±10 | 400±10 | 2050±10 | 200±10 | 460±10 | 20-22 | Y6-30 | 13.5 |
| YX-1400A | 1400±10 | 250±10 | 2000±10 | 170±10 | 350±10 | 16-18 | Y6-15 | 8.5 |
| YX-1300A | 1300±10 | 250±10 | 2000±10 | 150±10 | 250±10 | 16-18 | Y6-15 | 7.5 |

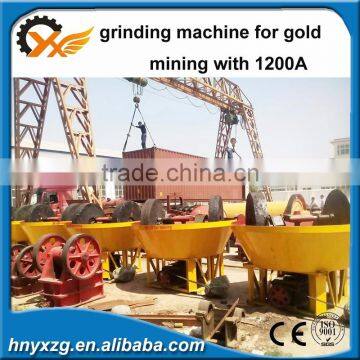

| YX-1200A | 1200±10 | 200±10 | 1800±10 | 90±10 | 250±10 | 17-19 | Y6-7.5 | 5.5 |
| YX-1200B | 1200±10 | 200±10 | 1800±10 | 90±10 | 250±10 | 23-25 | Y6-7.5 | 5.5 |
| YX-1100A | 1100±10 | 200±10 | 1800±10 | 90±10 | 250±10 | 17-19 | Y6-7.5 | 5 |
| YX-1000 | 1000±10 | 200±10 | 1700±10 | 90±10 | 250±10 | 13-15 | Y6-7.5 | 4.5 |
| YX-900 | 900±10 | 180±10 | 1700±10 | 80±10 | 250±10 | 13-15 | Y6-5.5 | 4.5 |
|
Grinding base For model 1200A, the diameter of grinding base is 1800mm and the the thickness is 90mm. The material could be high Mn and White irone. |
|
|

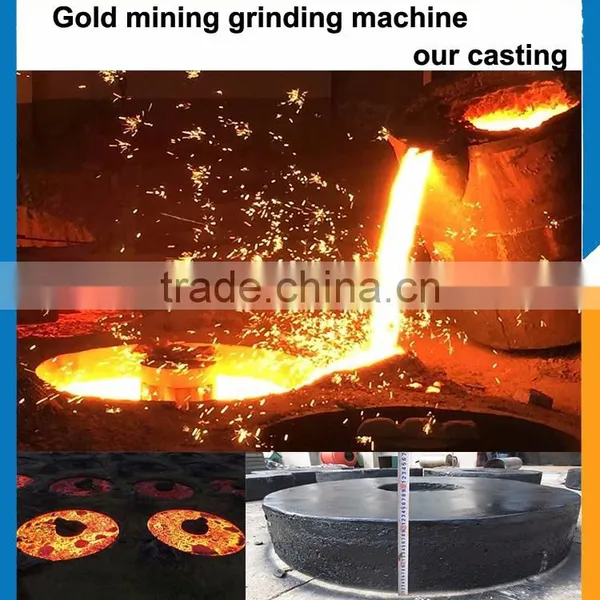

Grinding roller The smooth surface design will be good for the grinding efficiency.The material could be high Mn and White iron. For 1200A model grinding roller, the diameter is 1200mm, thickness is 200mm. weight is 1.5t/pcs. |
|
Water pan The edge of the water pan is specially processed with the edge protecting. |
|

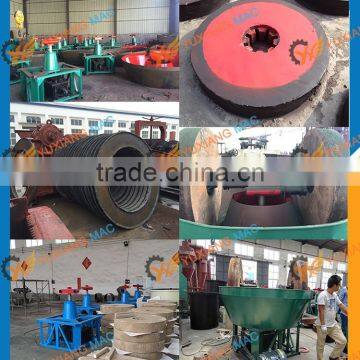

The working site of wet pan mill
The customer visit our company
|
1400 A working site
|
|
|
hammer crushers also called hammer mill,is suitable for crushing various hard and brittle materials. Weight:3.5t,0.8t Capacity:5-75t/h More details>>>
Get Quotation |
|
Jaw Crusher is suitable for crushing big size lumps in large quantity, is configured for primary crushing of even the hardest rock. Weight:10.3t Capacity:50-60 t/h Max Feeding Size:850mm More details>>>
Get Quotation |
|
|
Ball mill Yu Xiang's major product, professional technology support and all-around service can be offered to you Weight:37000KG Capacity:0.65-90T/H More details>>>
Get Quotation |
We know well the problems you will meet during the equipment working,know the mentaince ways and the spear parts needed.Of course,We would like to recommend suitable equipment according to your requirement
Gongyi city Yuxiang Heavy Machinery Co,Ltd has established more than 20 years, which is a professional manufacturer and exporter that is concerned with R&D, production, sales and service. In the past 20 years, our mainly product Mining series equipment, Charcoal briquette machine series, Carbonization furnace equipment, Dryer series equipment, Grinding machine series,oil press machine/oil filteration machine etc. We are located in Gongyi city, Henan, China. We will provide convenient transportation including expressway,railway and waterway. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching India, Indonesia, Vietnam, Bangladesh, Pakistan, Sultan, Cambodia, Philippines, Iran, Sri Lanka, Africa, Russia, the United Kingdom, the United States, Brazil, Australia etc. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
