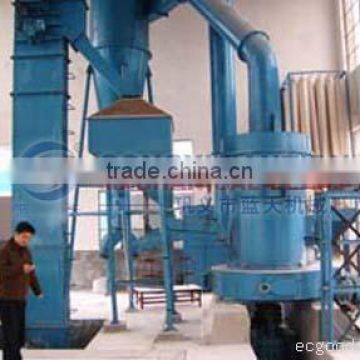

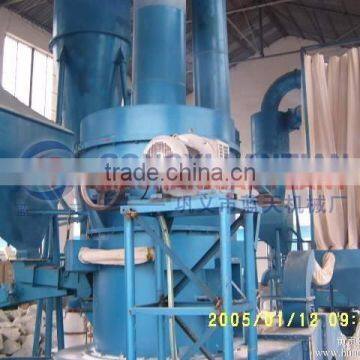

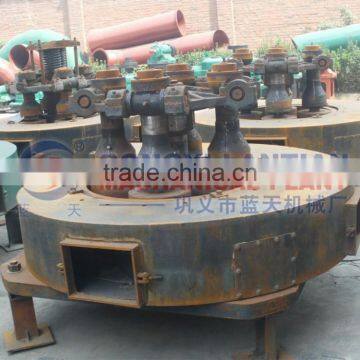

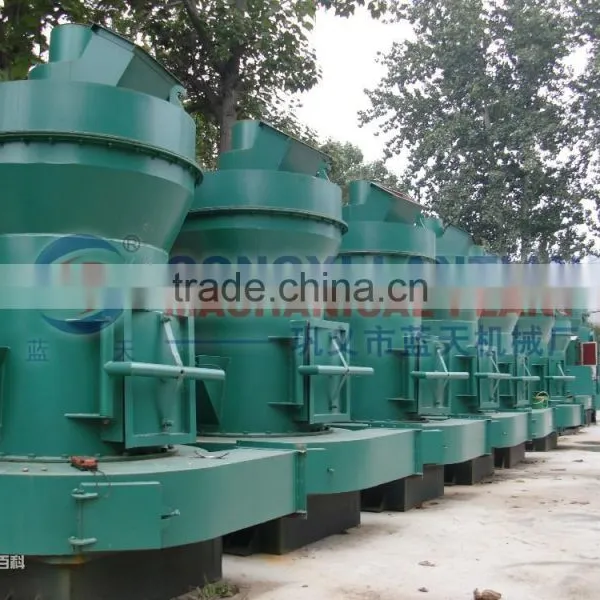

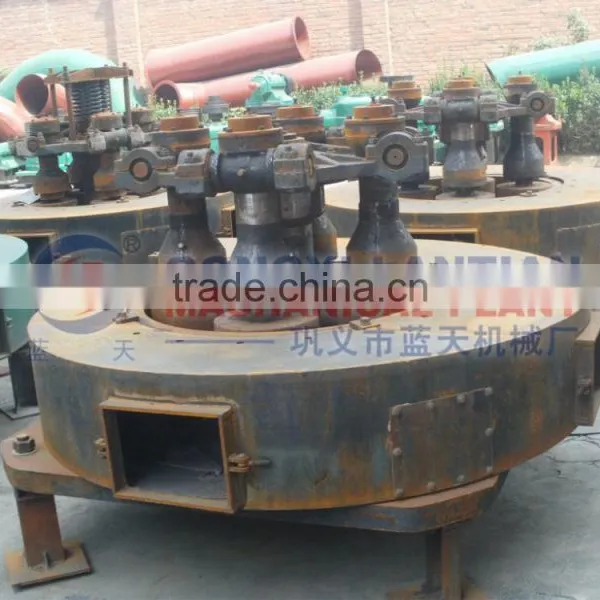

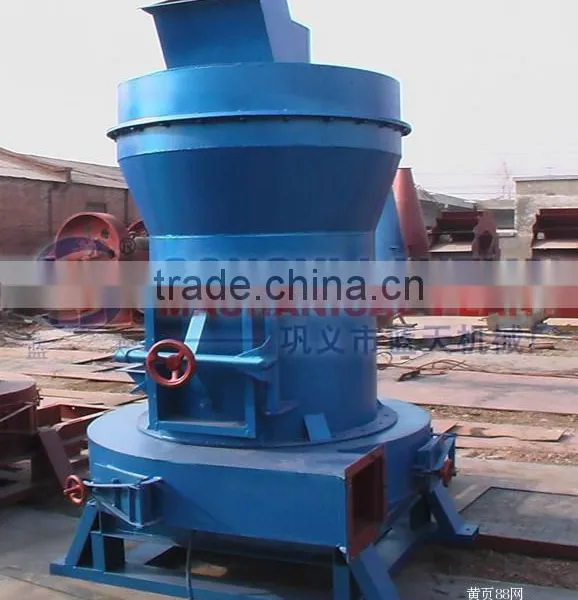

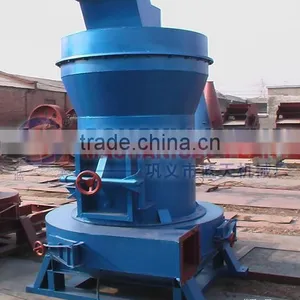

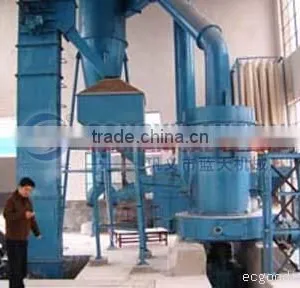

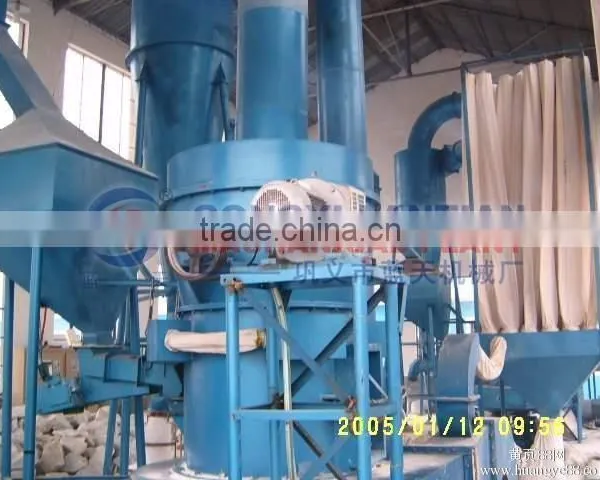

Raymond machine simple introduction
This High-pressure Raymond Mill is used to grind materials in the fields of metallurgy,buliding materials,chemical and mining industry. It used to grind the materials which are non- inflammable and non-explosive with the hardness below 7-8 Mohs and moisture level less than 6%,such as feldspar, clay, bentonite, calcite, talc, barites, fluorite, marble and limestone, dolomite, lime, activated carbon, kaolin, phosphate rock, glass, manganese, refractory materials, insulation materials, causticization, mullite and medical stone, blood attapulgite, iron ore, copper ore, silicon ore, ferric oxide magnesium, Barium salt etc.
Raymond mill features

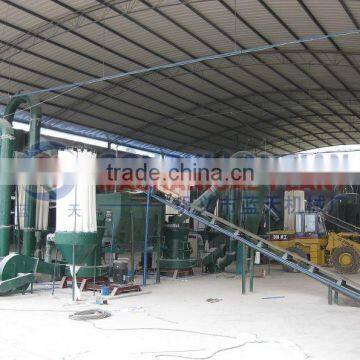

1.The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.
5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.

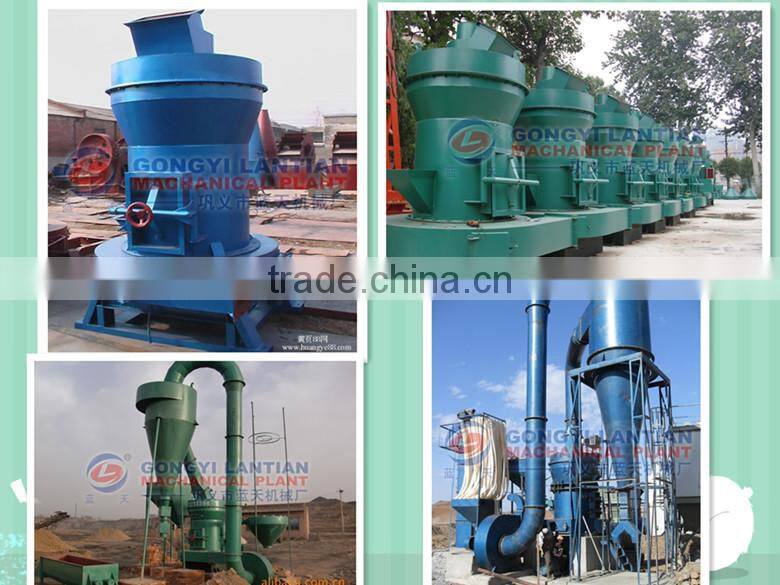

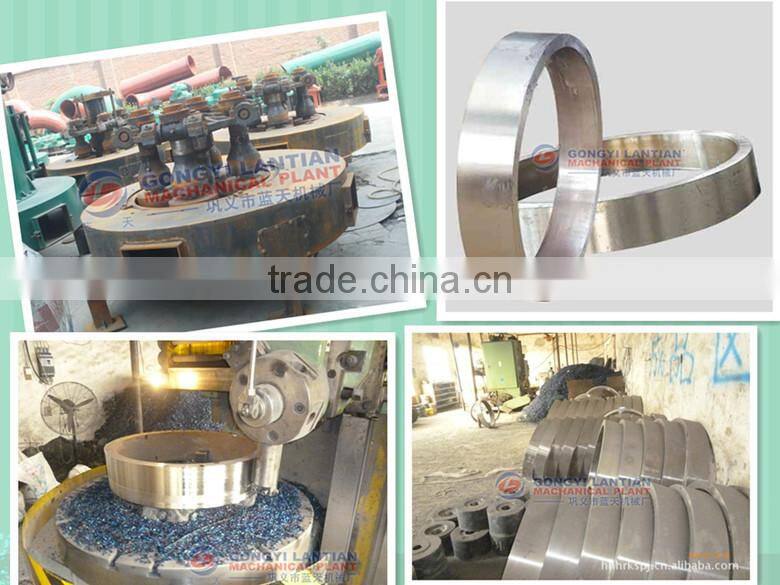

The important parts

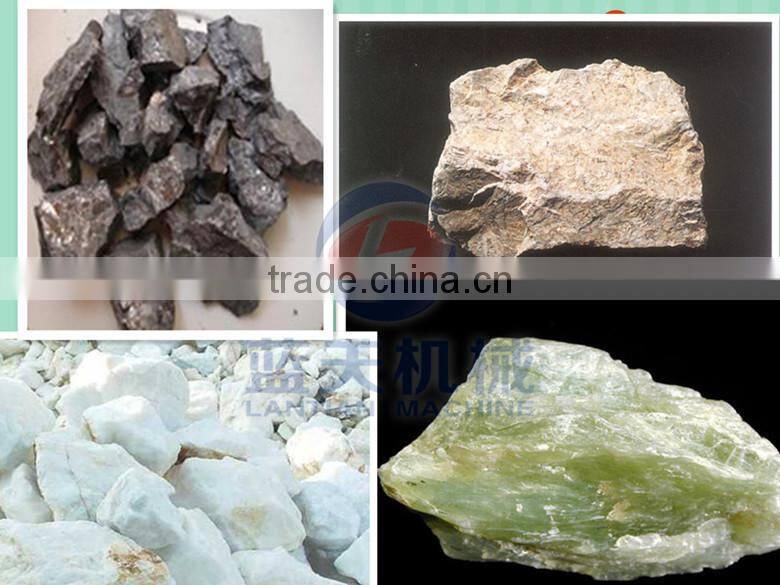

Part can be processed raw ore

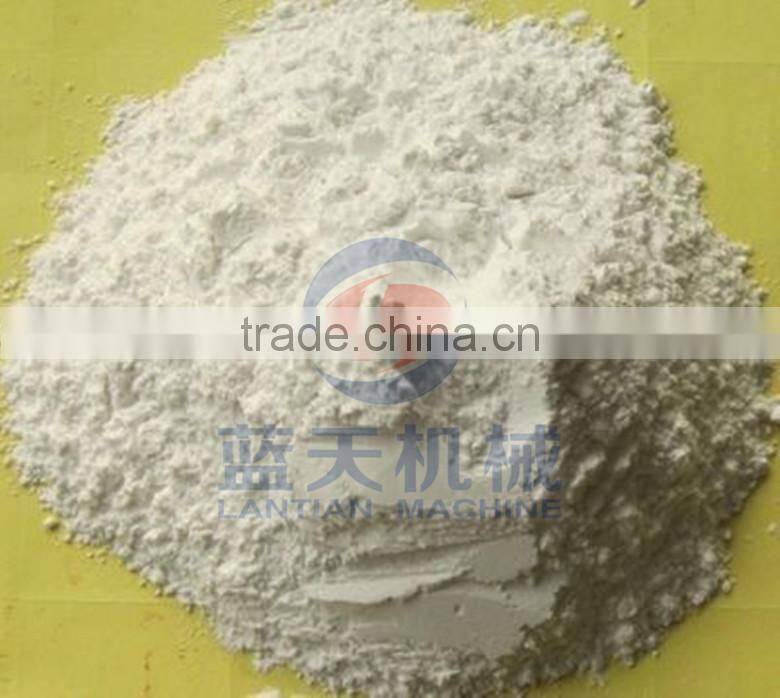

Finished powder
Technical parameters
Type |
The grinding roller |
Grinding ring |
Feed particle size (mm) |
The finished product (mm) |
Yield (t/h) |
power (kw) |
size (mm) |
|||
Number |
Diameter (mm) |
Height (mm) |
Outer diameter (mm) |
Height (mm) |
||||||
3R1410 |
3 |
140 |
100 |
495 |
100 |
<8 |
0.613-0.044 |
0.15-1.2 |
14.1 |
3340×2200×3200 |
3R2115 |
3 |
210 |
150 |
726 |
150 |
<15 |
0.613-0.044 |
0.28-1.8 |
28.2 |
4480×3100×3970 |
3R2615 |
3 |
260 |
150 |
865 |
150 |
<15 |
0.613-0.044 |
0.35-2.8 |
35.7 |
5000×4100×4850 |
3R2715 |
3 |
270 |
150 |
884 |
150 |
<15 |
0.613-0.044 |
0.40-3.4 |
42.7 |
5050×4150×4900 |
3R3015 |
3 |
300 |
150 |
965 |
150 |
<15 |
0.613-0.044 |
0.45-3.7 |
55 |
5200×4200×4950 |
4R3016 |
4 |
300 |
160 |
990 |
160 |
<20 |
0.613-0.044 |
0.6-4.5 |
55 |
5250×5000×5500 |
4R3216 |
4 |
320 |
160 |
1073 |
160 |
<25 |
0.613-0.044 |
1.0-5.2 |
72.5 |
7700×7200×8800 |
5R4119 |
5 |
410 |
190 |
1400 |
190 |
<30 |
0.613-0.044 |
2.0-9.0 |
157.5 |
7900×8800×9650
|
The service:
1.we will recommend the proper machine for the clients according to your needs
2.in the manufacturing, we have the strict production system and the production technology to promise the good quality of products
3.after the sale, we will assign technologists for installation and debugging. If the product have any problem at the following time, we will solve it for you timly
Why choose Lantian machinery
A. 20-year’s experience in heavy machinery.
B. Customers from more than 130 countries.
C. Professional team offers technical support to customers.
D. 24hours online services from our professional foreign trade department.
