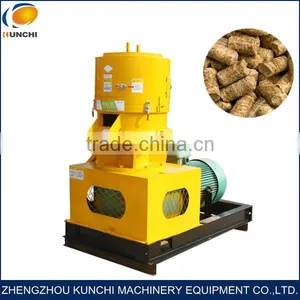

Help CenterComplete Automatic and Longlife Wood Pellet Hammer Mill
Related Products
-
High Efficiency Self Feeding Disc Wood Chipper for SaleUS$ 1,500 - 5,000MOQ: 1 Set -
2013 Newest and Compact Structure Disk Type Wood ChipperUS$ 1,500 - 5,000MOQ: 1 Set
-
Drum and Mini Disc Wood ChipperUS$ 1,500 - 5,000MOQ: 1 Set
-
Easy to Operate Dry Method Peanut Skin Peeler MachineUS$ 1,000 - 2,800MOQ: 1 Set
-
Compact Structure and Stable Running Dry Method Peanut Peeling MachineUS$ 1,000 - 2,800MOQ: 1 Set
Specifications
Wood pellet mill1. low wearing rate
2. long life of pressure wheel die plate
3. High capacity
4. Suitable

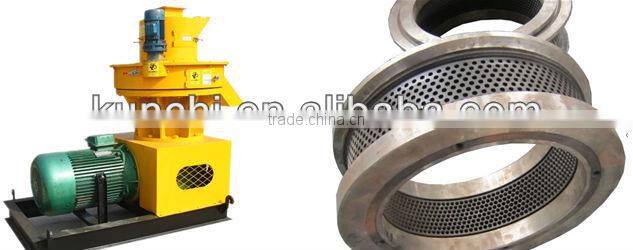

Best Quality Wood Pellet Mill
Introduction of wood pellet mill:
The machine is produced on the basic of advanced technology from German and through continuously improvement and innovation .The machine meets the international demand of biomass energy regeneration and is the latest product of making compressed briquette.
Application of wood pellet mill:
The pellet mill is mainly suitable for crude fiber granulator, such as sawdust, rice husk, cotton seed and all kinds of crop straw,garbage, the factory waste,difficult-to-be-formed materials, biological fertilizer, organic fertilizer, compound fertilizer and other low temperature granulation.
Features of pellet mill:
1.wood pellet mill can press biomass materials, such as sawdust, straw and rice husk pellet.
2.wood pellet mill adopts advancedtechnology from Germany. Beautiful appearance, compact structure.
3.High output, low energy consumption, low noise, low mistakes.
4.The wood pellet mill adopts center of pressure regulating structure to adapt to different material and ensure the suppression effect.
5.The wood pellet mill has 2-30 mm different diameter molds and can compress various kinds of shapes.As long as you change the mold ,you can compress different pellet.

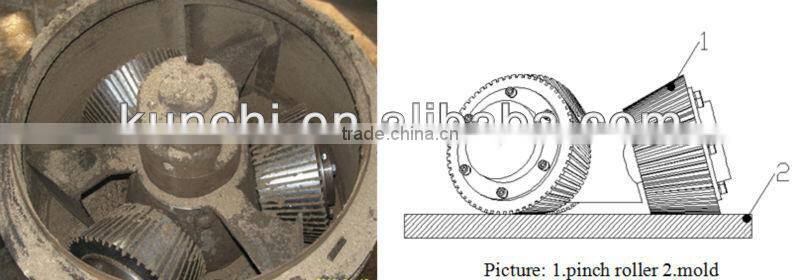

6.This roller adopts bevel wheel.And the mold plate consistent with the outer wire-speed line so it does not appear dislocation friction between wheel and die and reduces resistance and energy consumption. Then prolonging the service life of the die.
Flat Die Wood Pellet Mill:
Specification of wood pellet mill:
Model | PL-320 | PL-420 | PL-550 | PL-650 |
Motor | 22kw | 37kw | 55kw | 75kw |
Voltage | 380v/50hz/3phase | 380v/50hz/3phase | 380v/50hz/3phase | 380v/50hz/3phase |
Capacity | 250-350kg/h | 350-450kg/h | 600-700kg/h | 1000kg/h |
Flat die diameter | 320mm | 420mm | 500mm | 650mm |
Flat die speed | 300r/min | 300r/min | 70r/min | 66r/min |
Die hole diameter | 2-20mm | 2-20mm | 2-20mm | 2-20mm |
Dimension | 150×65×130cm | 180×100×160cm | 200×115×170cm | 210×126×188cm |
Weight | 648kg | 930kg | 1800kg | 2530kg |
Ring Die Wood Pellet Mill:
Specification:
Model | Motor | Voltage | Main shaft speed | Die hole diameter | Capacity | Dimension | Weight |
HL-550 | 75kw | 380v/50hz | 66r/min | 2-30mm | 1-1.5t/h | 2030*1000*1825mm | 2650kg |
Finishes Picture:
