2013 newest and compact structure disk type wood chipper

Specifications

wood chipper
1.dedicated device
pact structure
3.reasonable layout
4.high productivity

  2013 newest and compact structure disk type wood chipper

Introduction of wood chipper

Disk chipper is a special equipment to produce wood chips, which is widely used in particleboard, medium and high density fiberboard factory and other wood industries.

It has advanced and compact structure, high-quality chipping, widely applicable of raw materials, easy operation and low maintenance.

Application of wood chipper

The main raw material is small diameter wood, processing residues (such as branches, slab, crates, logs, core and waste veneered.)

t also can be used to cut non-wood raw materials (such as sugar cane, reed, bamboo etc).

Features of wood chipper

1. A dedicated device for fine chip production, which can be widely used to the industrial material preparation section of paper-making,

shaving and fiber board as well as single wood chip production.

2. Its feeding covers horizontal and vertical types. And discharging has upper and  bottom types.
3. It has a compact structure, reasonable layout, simple installation, convenient maintenance and high productivity.

When chipping timber, the chip is high in quality and adjustable in specific length range, which is an advanced domestic disk type timber chips making machine.
4. It has an output of 2t-15t/h. Customers may choose the proper model according to requirements.
5. It is made up of base plate, cutter head, feed inlet, cover piece and electric control system.

Main technical parameter of wood chipper

Model	DC400	DC600	DC800	DC950	DC1150	DC1410
Diameter of Cutter (mm)	400	600	800	800	1150	1410
Number of cutters	4	3	4	4	4-6	4
Rotary Speed of Cutter (r/min)	600	650	550	550	600	600
Capacity (t/h)	0.4-0.8	1-1.5	3-6	5-8	8-13	10-15
Equipped Power (kw)	11	18.5	30	37-45	75	90
Weight (kg)	120	380	550	800	2400	2800

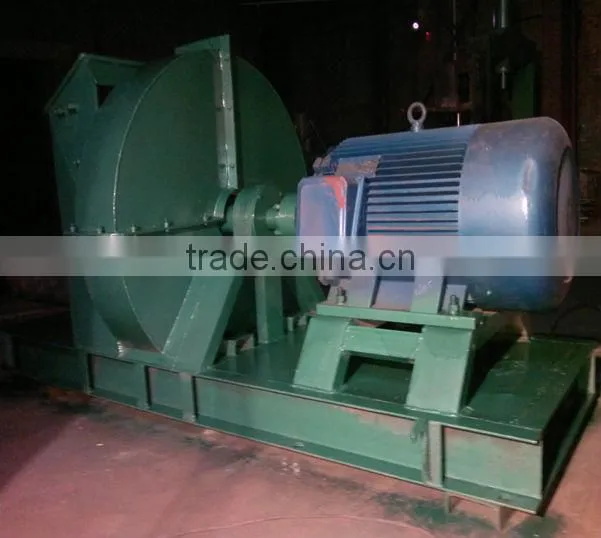

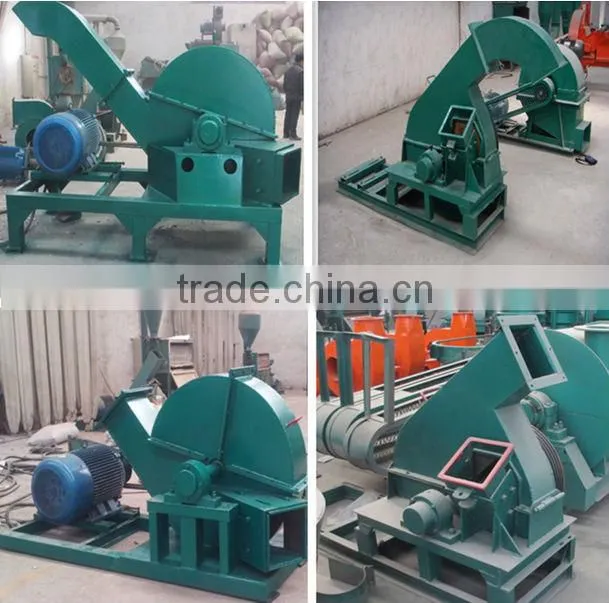

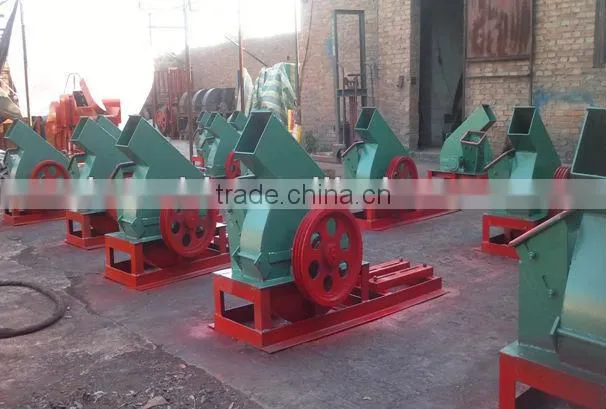

picture show of wood chipper









In stock





The product





  Kind Remind:

 If you are interested in this machine, please detail your requirements while you are sending your inquiry,

the more, the better, so that we can give you the best recommendation.

 Our Service & Cooperation:

  1. Pre-sales service:

 ü Sales person, project manager, technology engineer, accountant staff

 ü Professional responsing-team: would be very fastly and exactly to send your offers

 2. Online/sale service

 ü Super and solid quality

 ü Fastly delivery

 ü Standard export package or as your demand

 3. After-sales service

 ü Assistance to build factory

 ü Repairing and maintenance if any problem occur in warranty

 ü Installation and clerks training

 ü Spare and wearing parts for free or with big discount

 ü Any feedback of machines can be told us, and we will try our best to support

 4. Other cooperation service

 ü Technology knowledge share

 ü Factory building advising
