ZBJ-60 High Effective Wood Charcoal Machine From Wood Dust for Sale

ZBJ-60 High Effective Wood Charcoal Machine From Wood Dust for Sale photo-1
US$ 5,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
KUNCHI
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name KUNCHI
Model Number ZBJ-60
After-sales Service Provided Engineers available to service machinery overseas

Specifications

wood charcoal machine
1.screw type
2.during this process
3.no binder needs to be used

High effective wood charcoal making machine from wood dust for sale

Product Introduction of wood charcoal making machine

This machine is screw type, which can process any kinds of agricultural and forestry wastes into bio-fuel hollow briquettes of external diameter 30-90 mm, internal 15-20 mm.

Briquetting is a process that biomass is compressed under high pressure and high temperature. The machine uses a large screw to grind, compress and extrude the biomass materials into briquettes. The natural lignin content in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, binds the particles of wood together, thus binding, compressing the biomass to form into high density briquettes. During this process, no binder needs to be used. And the finished biomass briquettes are non-conventional source of energy, renewable in nature, Eco-friendly, and non-polluting and economical. In the whole process no binders and chemicals are needed, 100% natural ensured.

Application scope of wood charcoal machine machine

bamboo dust

 tea waste

wheat waste

straw

sugarcane residue

coffee husk

cotton stalks

tobacco waste

rice husk

wood chips and waste

mustard stalk

jute waste

palm husk

soybeans husk

Biomass Charcoal Making Process

1. Crush the raw material into small pieces (diameter is about 3-5mm)

2. Dry the material by machine or dried it in the sun, till the moisture is less than 12%

3. Produce the briquette stick from biomass material without any additive

4. Carbonized the briquette stick

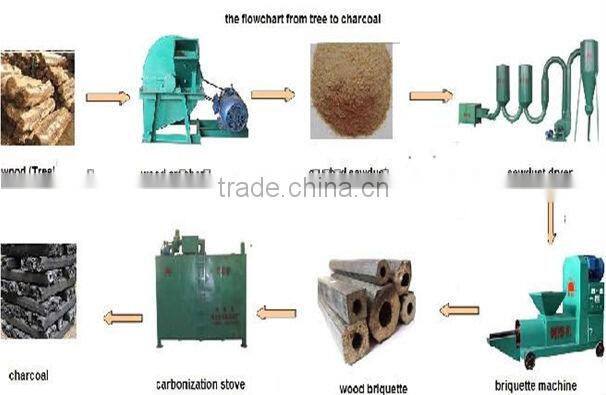

Flowing chart

ZBJ-60 High effective wood charcoal machine from wood dust for sale



Main technical parameter of wood charcoal making machine

Model

Power

Capacity

Weight

Dimension

Note

ZBJ50

11KW

120-150

450kg

1.68*0.72*1.25

Charcoal size:50mm

ZBJ50-2

15KW

180-200

550KG

1.68*0.72*1.25

Charcoal size:50mm

ZBJ60

15/18.5KW

200-240

620kg

1.68*0.72*1.25

Charcoal size:60mm

ZBJ70

18.5KW

280-350

680KG

1.86*0.72*1.32

Charcoal size:70mm

ZBJ80

18.5KW

320-380

750kg

1.96*0.72*1.32

Charcoal size:80mm































Remarks:

The above technical data is just for your reference. Any questions about Sawdust Briquette Charcoal Making Machine , just contact us freely.

Some points on biomass charcoal briquette machine :

The whole line includes mainly five machines:

1) Wood crusher

2) Rotary screen (sieving machine)

3) Air flow sawdust dryer

4) Sawdust briquetting machine

5) Wood briquettes carbonization furnace

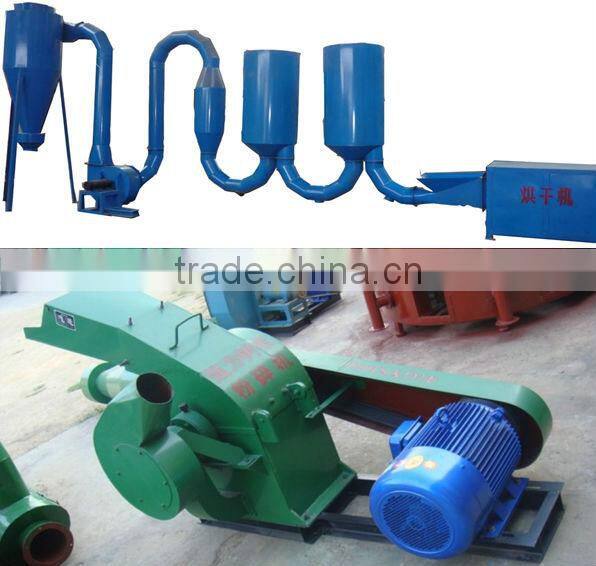

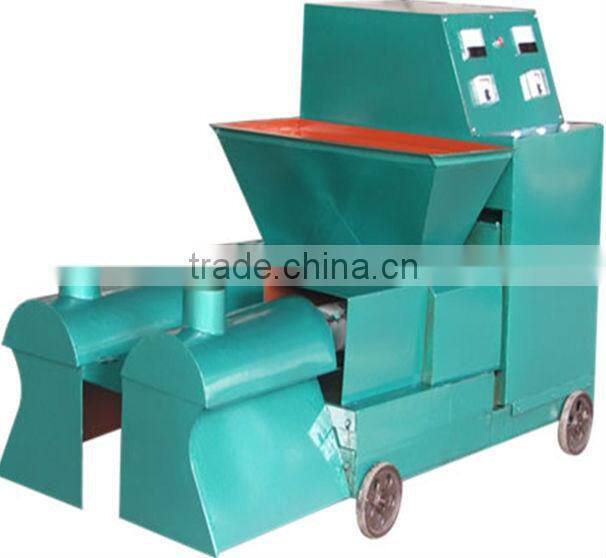

Picture show of wood charcoal making machine



ZBJ-60 High effective wood charcoal machine from wood dust for sale





ZBJ-60 High effective wood charcoal machine from wood dust for sale







ZBJ-60 High effective wood charcoal machine from wood dust for sale

Kind Remind:

If you are interested in this machine, please detail your requirements while you are sending your inquiry, the more, the better, so that we can give you the best recommendation.



Our Service & Cooperation:

1. Pre-sales service:

 ü Sales person, project manager, technology engineer, accountant staff

 ü Professional responsing-team: would be very fastly and exactly to send your offers

 2. Online/sale service

 ü Super and solid quality

 ü Fastly delivery

 ü Standard export package or as your demand

 3. After-sales service

 ü Assistance to build factory

 ü Repairing and maintenance if any problem occur in warranty

 ü Installation and clerks training

 ü Spare and wearing parts for free or with big discount

 ü Any feedback of machines can be told us, and we will try our best to support

 4. Other cooperation service

 ü Technology knowledge share

 ü Factory building advising
