Specifications
Wood Sawdust /Crushing Machine1.Good economic returns.
2.Easy maintenance
3.High efficient and yield

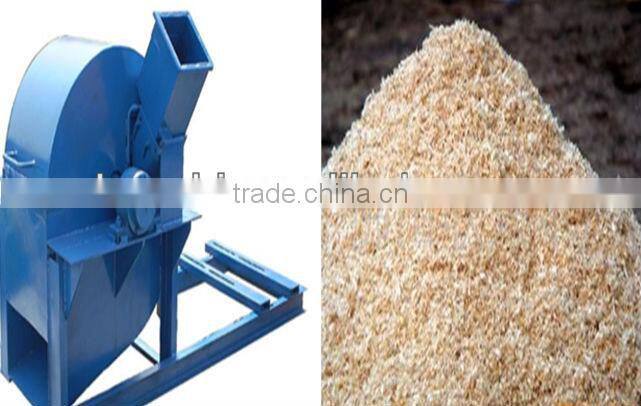

Hot sale Wood Sawdust /Crushing Machine
Application of wood sawdust/crushing machine
It is widely used to producing wood sawdust as the mushroom bed in the edible mushrooms industry, as well as the shaving board, density board, paper making industry.
Working Principle of wood sawdust/crushing machine
This wood sawdust machine adopts automatic feeding equipment, driven by the motor, the crushing rotor rotates with high speed, meanwhile, the high speed air-flow which generated by the rotor rotates in the direction of the knife, the materials speed up in the air-flow and strike, shave repeatably, then flowing the air-flow, the crushed materials go into the analysis equipment to be analysed. Due to be affected by both the centrifugal force of the rotor and the centripetal force of the air-flow , when the centrifugal force is bigger than the centripetal force, the tiny particles are going to the powder collector by the force of the air-flow, the bigger ones are going back to be crushed again until they meet the requirement.
Component
The machine mainly consists of three parts: 1. Cutting equipment 2. Crushing equipment 3. Draught fan
Specification of wood sawdust/crushing machine
Model | Power | Rotate Speed | Number of knife | Capacity | Weight |
WS-420 | 11kw | 2800r/min | 4 | 0.6-1t/h | 160kg |
WS-500 | 15kw | 2800r/min | 4 | 0.8-1.2t/h | 180kg |
WS-600 | 18.5kw | 2700r/min | 4 | 1.0-1.5t/h | 260kg |
WS-700 | 30kw | 2600r/min | 4 | 1.2-1.8t/h | 450kg |
WS-800 | 37kw | 2400r/min | 4 | 2.0-2.6t/h | 650kg |
WS-1000 | 75+7.5kw | 2000r/min | 4 | 2.4-3.0t/h | 1100kg |

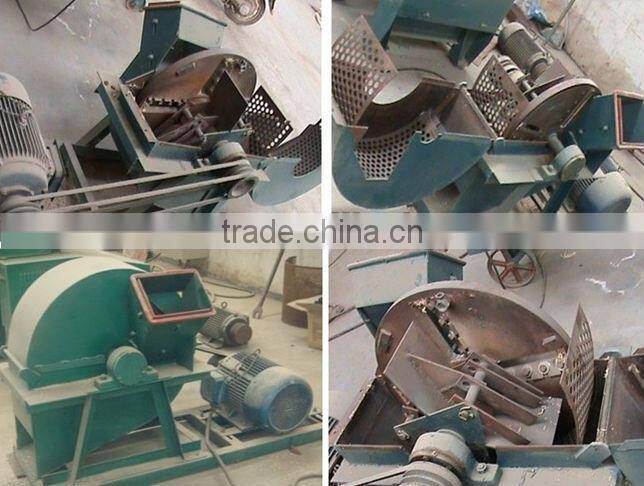

Picture Show of wood sawdust/crushing machine

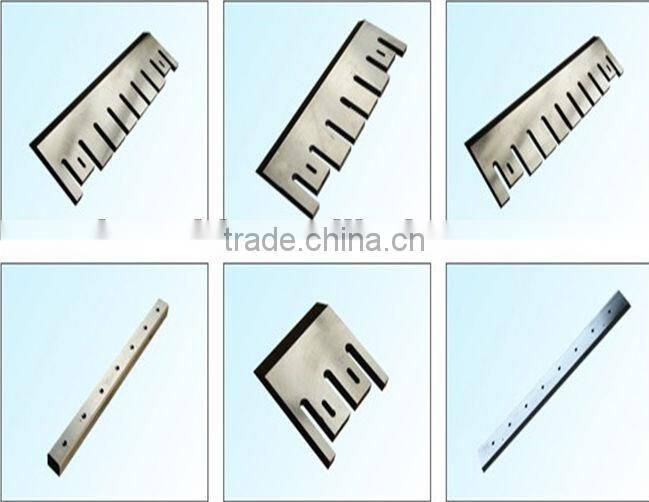

quick-wear part
Kind Remind:
If you are interested in this machine, please detail your requirements while you are sending your inquiry,
the more, the better, so that we can give you the best recommendation.
Our Service & Cooperation:
1. Pre-sales service:
ü Sales person, project manager, technology engineer, accountant staff
ü Professional responsing-team: would be very fastly and exactly to send your offers
2. Online/sale service
ü Super and solid quality
ü Fastly delivery
ü Standard export package or as your demand
3. After-sales service
ü Assistance to build factory
ü Repairing and maintenance if any problem occur in warranty
ü Installation and clerks training
ü Spare and wearing parts for free or with big discount
ü Any feedback of machines can be told us, and we will try our best to support
4. Other cooperation service
ü Technology knowledge share
ü Factory building advising
