Newest Designed Screw Press Solid Liquid Separating Machine for Cow / Pig / Chicken Manure With Great Performance

Newest Designed Screw Press Solid Liquid Separating Machine for Cow / Pig / Chicken Manure With Great Performance photo-1
US$ 4,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
KUNCHI
Model Number:
LX-200-3
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name KUNCHI
Model Number LX-200-3
Type Other, Manure processing machine
Product Description



The Third Generation Screw Extruding Type Solid Liquid Separator

(Cattle/Cow/Pig/Chicken/Poultry Manure/Dung/Feces Dewatering Machine)





Advantages of screw press solid liquid separating machine

*The screw and the filter screen are made of thicken SUS304 which is specially processed.

*Advanced “V “shape strip filter screen making technology, no blocking during working.

*The machine adopts new type convenient washing hole and larger bowl, it is easier to maintain and clean.

*Integrated hopper design, larger application scope.



Working principle of LX series screw press solid liquid separating machine

The LX series solid liquid separator is a screw squeezing type separating equipment, which uses a submerged pump to pull the flush fowl manure, cow manure, pig manure, etc. into the squeezing bowl, the materials are pressed and pushed by the screw , the dry materials will be discharged through the discharge hole at the end of the machine, meanwhile, the liquid will be squeezed out of the screen and discharged through the pipes . After processed by this machine, water content in manure is less than4050%.

Application of solid liquid separator

The LX series solid liquid separator is used to separate solid content from liquid, it can reduce the water content of animal(cow, pig, chicken,etc.) dung/manure/feces, acid sludge, medicine dregs, kitchen rubbish, and many other dregs. The solid content of the raw material can be 30-40%, and the moisture of the final product is about 40-50%,that means you can not press out any water by hands.

The liquid material can be directly used for crops, the solid one can be sent to the regions that is lack of fertilizer to improve the soil structure. What is more, after fermentation, the solid organic fertilizer can be made into organic compound fertilizer.



Main models and specification of screw press solid liquid separating machine

Model

 LX-200-3

LX-280-3

Main motor power

4kw

5.5kw

Voltage

380v /50hz(customized)

380v/50hz(customized)

Screw&Screen

Stainless steel

Stainless steel

Screen Size

0.5/0.7/1.0mm

0.5/0.7/1.0mm

Working capacity

Cow manure

7-10m3/h

10-15m3/h

Chicken manure

2-3m3/h

5-7m3/h

Pig manure

8-12m3/h

15-25m3/h

Dimension

2050*800*1450mm

2100*900*1550mm

Weight

500kg

630kg

Spare parts

No.

Item

Type

Quantity

1

Submerged Pump

3kw

1set

2

Wire braided rubber hose

/

10m

3

Electric control cabinet

/

1 set

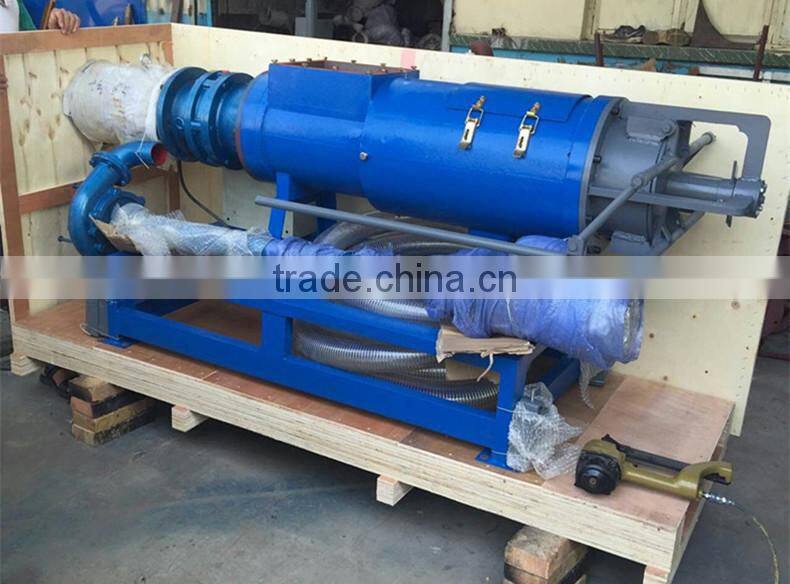

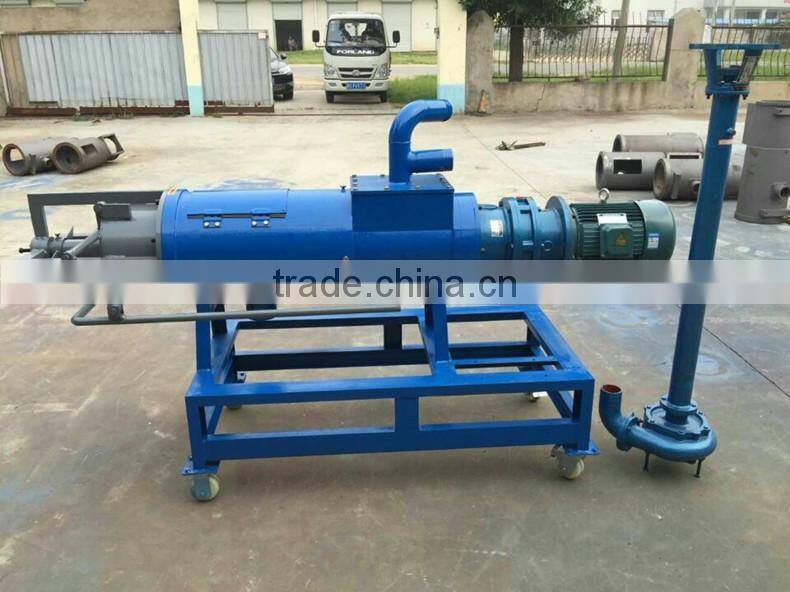

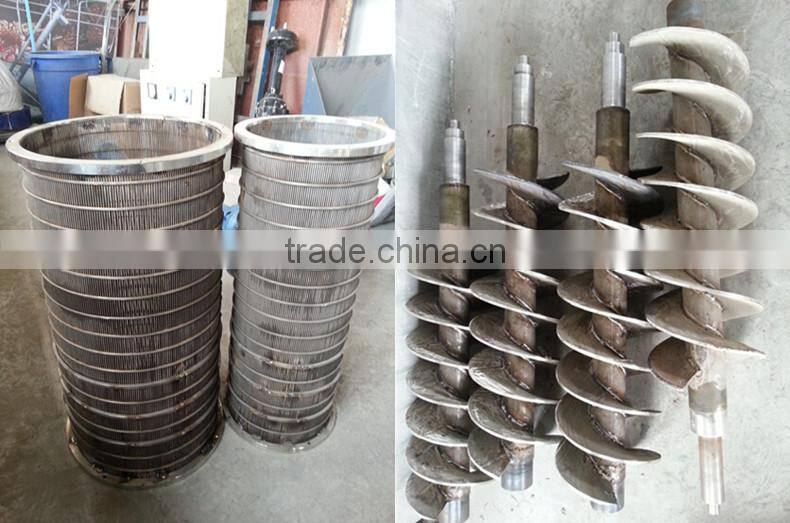

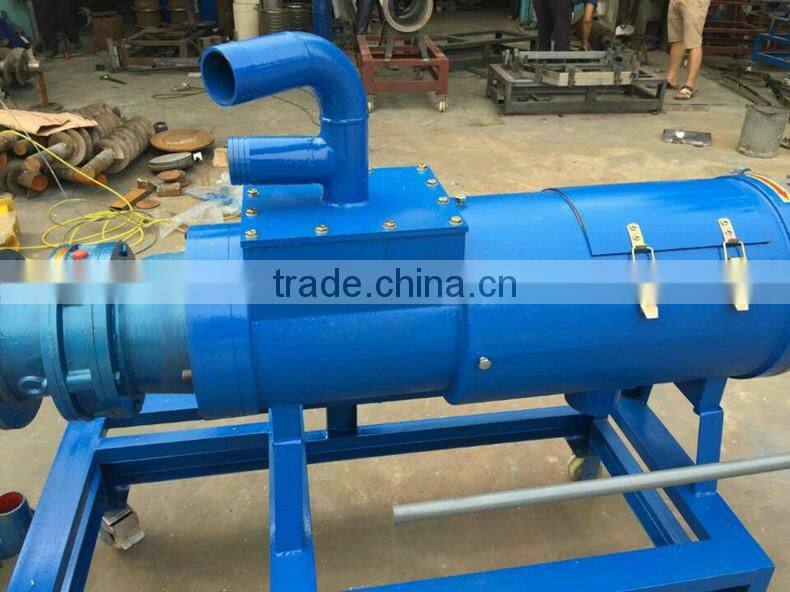

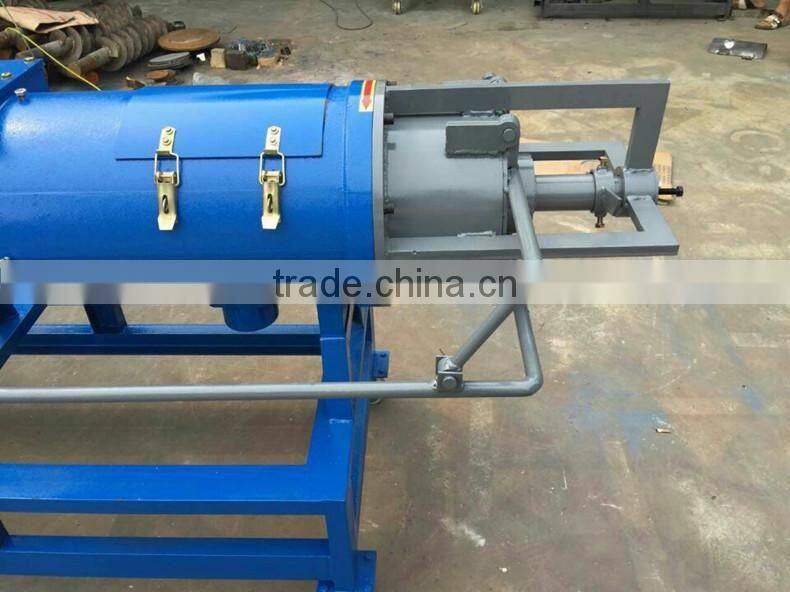

Pictures of screw press solid liquid separator

Newest designed screw press solid liquid separating machine for cow / pig / chicken manure with great performance

Newest designed screw press solid liquid separating machine for cow / pig / chicken manure with great performance

Newest designed screw press solid liquid separating machine for cow / pig / chicken manure with great performance

Newest designed screw press solid liquid separating machine for cow / pig / chicken manure with great performance

Newest designed screw press solid liquid separating machine for cow / pig / chicken manure with great performance

Newest designed screw press solid liquid separating machine for cow / pig / chicken manure with great performance

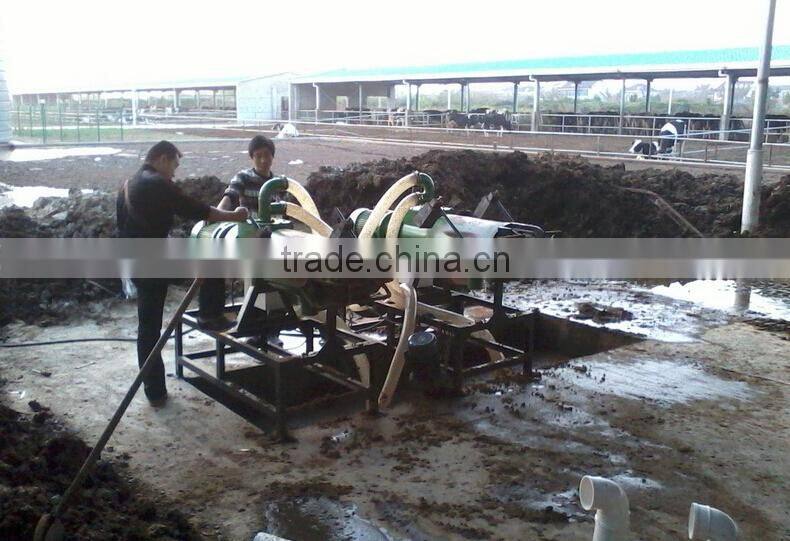

Appliation of solid liquid separator(livestock manure / dung dewatering machine)

Newest designed screw press solid liquid separating machine for cow / pig / chicken manure with great performance

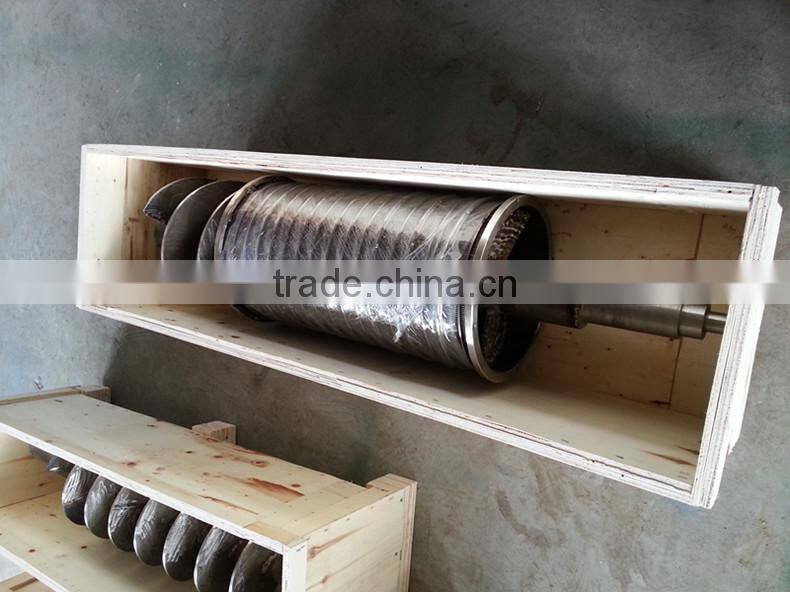

Packaging & Shipping

All the goods exported are packed in wooden case or carton with export standard except naked package when necessary.

We have our own professional shipping company which could deliver the goods to every corners in the world with safety and speed, and aslo can supply the services of solving the problems occured during the transaction, such as customs cleaning.

Newest designed screw press solid liquid separating machine for cow / pig / chicken manure with great performance





FAQ

*How do you guarantee I can receive the goods that ordered after make the payment?

Please be rest assured that you will receive the goods in time, we are a legally established company supervised by the government, and is registered in customs of China and China Chamber of International Commerce. Besides, we are the golden member of Alibaba and has been checked by the third party as the real and legal company, what is more important, honesty and trustworthiness is our basic principle and our company life.

Fow now, you can place the order through Trade Assurance system on Alibaba, we supply the Trade Assurance service with the refund limit on our Alibaba page, if the goods is not shipped on time or quality is not conformed with that listed in the contact, you can apply for a refund with the total value of the goods.

*How to make the payment?

Normally, when the order value is below USD10,000, we accept the payment by T/T or Western Union or Cash, L/C will be accepted when the order value is over USD10,000. For T/T, the customer can choose 100% in advance or 30% in advance, and pay the 70% balance before shipment.

*Date of delivery?

We will arrange the production and shipment as soon as possible when we received the deposit, and update the information with the customer on line.

*Suitability of motor?

As there are many voltage standards in different countries in the world, so the original motor equipped on the machine would not suitable to be used with the customer's local power supply, when this situation happened, please send us your exact information of the power supply available, then we can modify the motor accordingly.

*After sale service?

For most of the machines, the quality is guaranteed for one year since the date of shipment except wearing parts, we supply the on-line service for all the machines, and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too.
