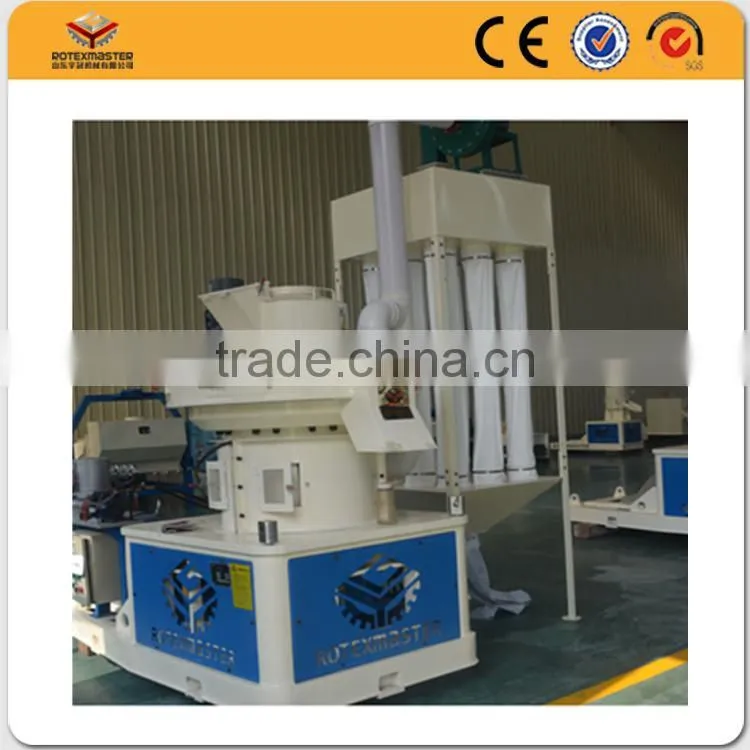

Rotexmaster Rice Husk Ash /biomass vertical ring die Pellet Making Machine
please pay attention to our brand and logo:ROTEXMASTER
Wood pellet machine is used for making wood pellet from wood waste,such as rice husk,wood sawdust, wood branches , wood chips , palm fiber,grass ,alfafa ,empty fruit bunch,straw, olive waste and bagasse etc.

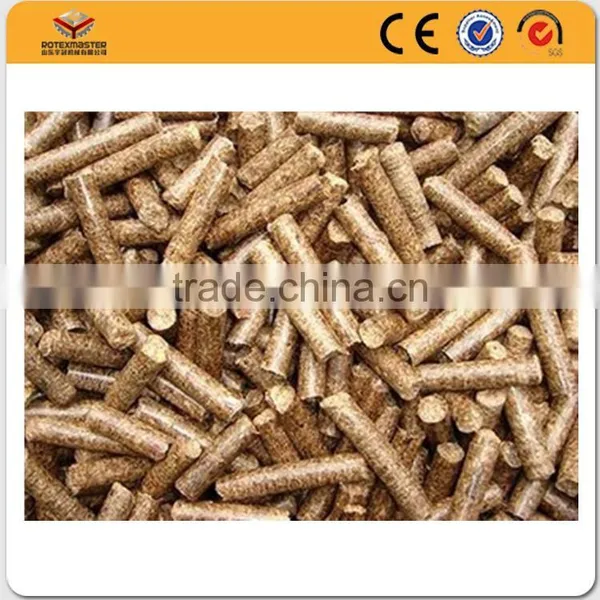

Finished wood pellet usually 6-8mm diameter,moisture is 8% -10%,wood pellets is widely used in home stove,hotel ,bath place,factory,electric power generator ,cabinet,boiler,horse bed,et
our main Vertical fing die wood pellet machine is YGKJ560, YGKJ680,YGKJ850
the wood pellet machine's color can be specially made

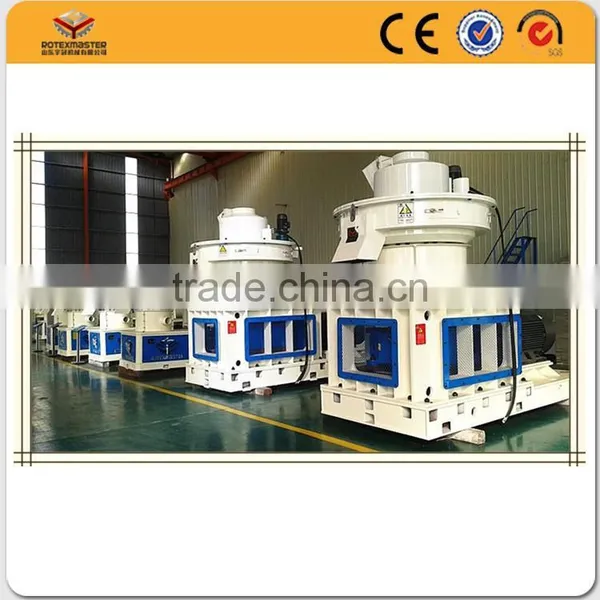

Vertical ring die wood pellet machine features
- Vertical ring die , vertical structure, Material feed directly in pellet forming chamber.
- Double layers ring die mold, down & up dual-use, low cost, high efficiency and energy saving.
- Die static, two roller rotating, great force, and material centrifugal, evenly around.
- The main press parts use wear resistant material--alloy steel, after heat treat ment and process several times , the service life of wearing parts is longer than other alloy dies .
- Fully automatic lubrication pump,you just add enough high temperature oil,then it lubricate the two roller and main shaft automatically with timming time,make sure the sawdust pellet machine can work continuously more than 20hours.
- Accuracy gear reducer box drive ,reducer all sealed ,save power ,make sure the ring die wood pellet machine work more efficiency and stable.
Parameter of wood pellet mill
Model | Power KW | Diameter mm | Output t/h | Dimension mm | Weight t |
YGKJ560 | 90+1.5+0.37+1.5+0.55 | 4-12 | 1-1.5 | 2600*1300*2300 | 5.8 |
YGKJ680 | 160+1.5+0.37+1.5+0.55 | 4-12 | 1.5-2.5 | 3300*1500*2300 | 8.5 |
YGKJ850 | 220+3+0.55+2.2+0.55 | 4-12 | 2.5-3.5 | 3800*1830*3080 | 15 |
Q1: what is the raw material to make wood pellet , if any requirements for the raw material?
A1: raw material can be wood waste , shells, tree branch , straw, stalk, bamboo, etc including fiber .
the raw material is no limitation , but the direct material to make wood pellet is wood powder ()not more than
8m), and mositure is 12%-20%,
so if your material is not wood powder and moisture is more than 20%,u need other machines, such as wood crusher
,wood hammer mill and dryer etc
Q2: if your wood pellet machine can make EN plus standard pellet ?
A2:yes, our veertical ring die wood pellet machine can make density 1.3kg/m^3 wood pellet , mositure is 8% , ash
<1%(decided by raw material)

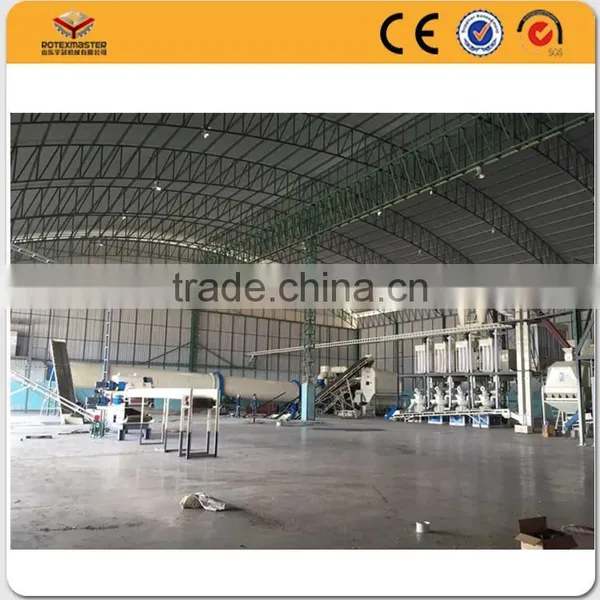

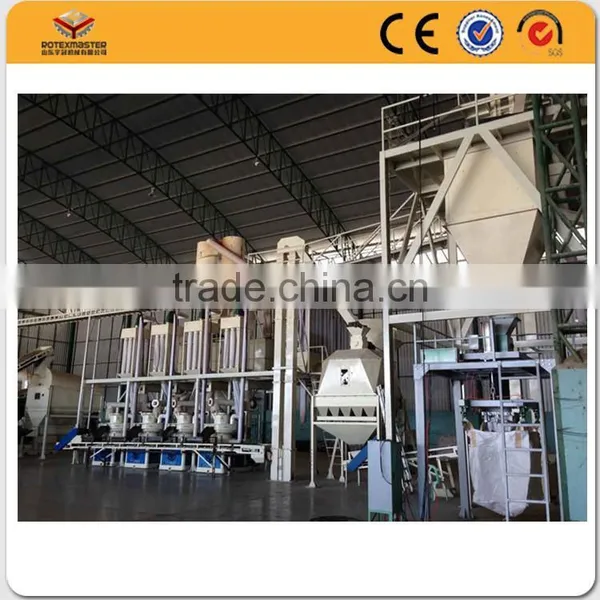

Q3: will u install the wood pellet line overseas ?
A3: yes, we have 6 installation teams, they have experience in installation in overseas
Q4:How can I visit your company ?
A4: our company is near Jinan International Airport and Jinan Train Station , we will pick u up when u arrive in
Jinan city
Rotexmaster wood pellet machines
1. professional guide
2. engineers available to service machinery onverseas
3. warranty 1 year , except for wear parts
fessional after sale servive team , solve your problems
