Specifications
1. High Performance2. High Capacity
3. Professional Manufacture
4. Export More than 30 Countrys
Slurry Rotary Dryer
Skype: zkbm1998
Slurry Rotary Dryer Introduction:
Slurry Rotary Dryer is mainly used for drying materials with some moisture and granularity in ore beneficiation,
building material, metallurgy and chemical department. Rotary dryer has high adaptability to the materials
so that it can be used for drying all kinds of materials, and in addition, the operation of this equipment is
simple and reliable, for this reason, it get wide application.
Slurry Rotary Dryer Performance Characteristics:

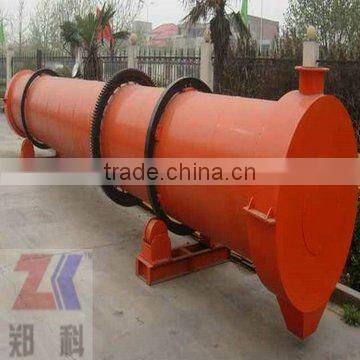

Slurry Rotary Drier is mainly composed of cylinder, under frame, feeding and discharging devices, transmission
device, gear cover, etc. (Optional auxiliary equipment includes combustion chamber, feeder and discharging
device, and dust collection equipment). Rotary drier manufactured by us adopts new lifting plate, which
is of functions like guiding, currentsharing, and material raising. The materials are raised and evenly drop so
that they are in full contact with heat for better drying efficiency. Our slurry rotary drier is designed with the
best working conditions, which enables it to save 10-15% of energy and increas10-15% of productivity compared with common dryers.

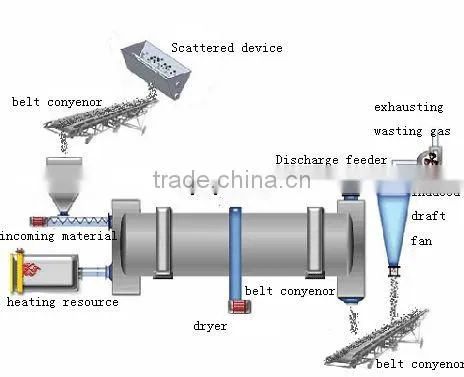

Slurry Rotary Dryer Working Principle:
The heat source of the dryer machine comes from the combustion device and this dryer uses co-current heating method, so that when the materials to be dried go into the cylinder from the feeding
box or feeding chute, they are pushed back by the spiral lifting board. Since the dryer machine is
obliquely installed, the materials flow to the lower end of the machine under the gravity and the
rotation of the machine, and on the other hand, the materials are repeatedly lifted by the lifting board
to the higher end and then spread down constantly, so that the materials will form a even curtain inside
the cylinder and conduct heat exchange with the hot air inside the cylinder. Since the materials constantly
spread and the water contained in them will be dried, thus achieving the aim of drying.
Main Technical Parameters:
Model | Gradient (°) | Speed (R/min) | Volume (m³ ) | Power (kw) | Capacity (t/h) | Weight (t) |
Φ0.6×8m
| 3-5 | 8 | 2.26 | 4 | 1-3 | 2.9 |
Φ0.8×10 m
| 3-5 | 7.2 | 5.02 | 4 | 4-6 | 4.5 |
Φ1.0×10 m
| 3-5 | 6.73 | 7.85 | 5.5 | 5-8 | 5.6 |
Φ1.2×12 m
| 3-5 | 5.8 | 13.31 | 11 | 8-12 | 14.8 |
Φ1.5×12 m
| 3-5 | 4.8 | 21.2 | 15 | 10-15 | 17.8 |
Φ1.8×14 m
| 3-5 | 3.2 | 48.22 | 30 | 12-18 | 27 |
Φ2.2×18 m | 3-5 | 3 | 70.43 | 37 | 15-20 | 53.8 |
Φ2.4×20 m
| 3-5 | 2.83 | 90.43 | 45 | 20-25 | 60 |
Φ2.8×24 m
| 3-5 | 2.59 | 147.8 | 75 | 25-30 | 67 |
Φ3×20 m
| 3-5 | 1.5-5 | 141.3 | 55 | 25-35 | 78 |
Φ3×25 m
| 3-5 | 1.5-5 | 176.6 | 75 | 32-40 | 104 |
