Specifications
Briquette belt dryer:Reasonable price.
Long working life.
Delivery in time.
Stocks in our factory.

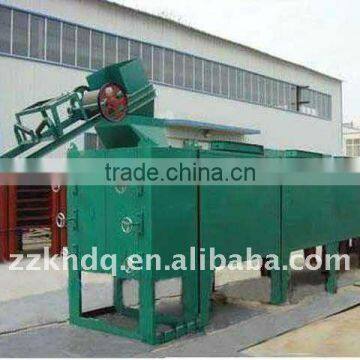

The Briquette belt dryer is a kind of batch, continuous production drying equipment, mainly for better ventilation sheet, strip, granular materials, such as: cassava slice, briquettes, fruits, vegetables, herb, pepper, potato chips, grain straw etc. It has the features of high efficiency, high-yield, high evaporation intensity, standardization of production and the capacity could be increased according to the number of segments. The main types of heating include electric heating, steam heating and hot air heating.
The principle of Mesh belt dryer: materials are uniformly put on the mesh-belt by the feeder. The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device. The drier is composed of several units. For each unit, the hot air is circulated separately. Some exhaust gas is discharged with a special moisture elimination blower. The waste gas is controlled through an adjustment valve. The hot air passes through the mesh-belt covered with the material from the top to the bottom or from the bottom to the top and this will complete the heat and mass transfer process. This process will bring the material water away. The mesh-belt moves slowly, Running speed can be freely adjusted according to the material temperature. The final products after drying will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the users’ demand. The unit number can be selected according to the demand.
Main specification:
Model | KHWD6 | KHWD8 | KHWD10 | KHWD12 | KHJWD16 | KHWD20 | KHWD24 | KHWD30 |
width of Net belt(mm) | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 | 3000 |
Length of drying section(m) | 6-12 | 6-12 | 6-16 | 8-16 | 8-22 | 10-26 | 12-30 | 12-40 |
Length of feeding section(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Length of transmitting section(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Drying area(m2) | 3.6-36 | 4.8-48 | 6-80 | 7.2-96 | 12.8-105.6 | 20-260 | 28.8-360 | 36-600 |
Unit mumber | 1-5 | |||||||
Interlamellar spacing (mm) | 400-600 | |||||||
Carrying capacity | 90-200 Kg/m2 | |||||||
Operation temperature (°C) | carbon steel≤400 C°,stainless steel≤600 C° | |||||||
Drying strength((kgH2O/h) | 5-20kg H2O/m2.h | |||||||
heat source | hot wind,electricity,steam | |||||||
Running speed | 0.06-1m/min | |||||||
Transmission powder(kw) | 1.1-2.2 | 1.1-2.2 | 1.1-2.2 | 1.1-3 | 1.5-3 | 1.5-4 | 3-7.5 | 5-11 |
Remarks: Based on different materials, capacity, moisture content, the technical parameter is adjustable.
