Wood Charcoal Carbonization Furnace For Hot Sale

Wood Charcoal Carbonization Furnace For Hot Sale photo-1

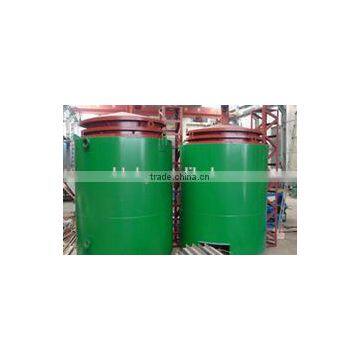

Wood Charcoal Carbonization Furnace For Hot Sale photo-2

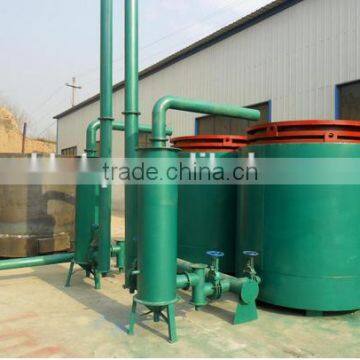

Wood Charcoal Carbonization Furnace For Hot Sale photo-3

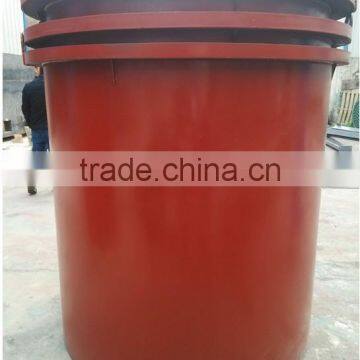

Wood Charcoal Carbonization Furnace For Hot Sale photo-4

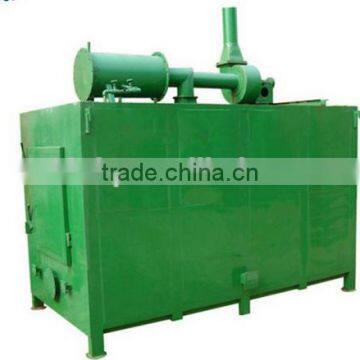

Wood Charcoal Carbonization Furnace For Hot Sale photo-5

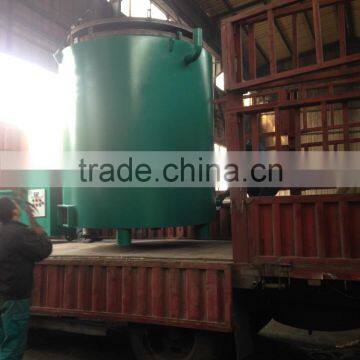

Wood Charcoal Carbonization Furnace For Hot Sale photo-6
US$ 2,100 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Flow
Application:
Making Charcoal
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin / QingDao / ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Air Flow
Application Making Charcoal
Place of Origin Henan, China
Brand Name zhengke
Model Number THL
Effective Volume 3CBM
Dimension(L*W*H) based on different madel
Weight 3.5T
Voltage 220v/380v
Power(W) 7.5kw
Certification CE, ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

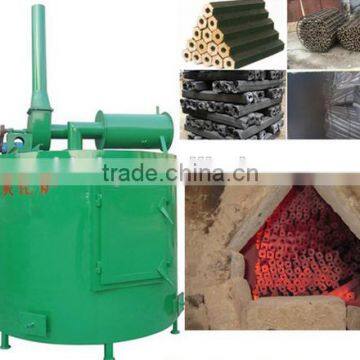

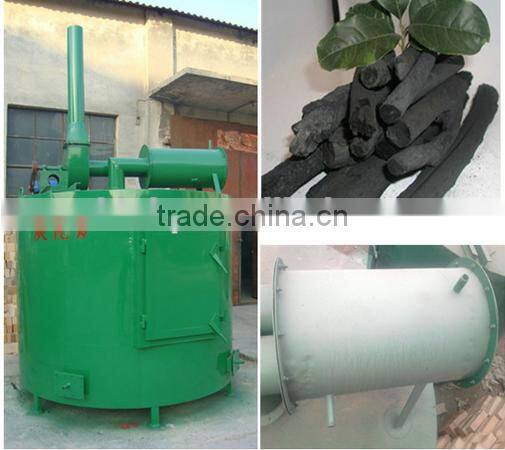

Wood Charcoal Carbonization Furnace

Wood charcoal carbonization furnace is a kind of new air flow type carbonization stove, can also be called as charcoal carbonization stove. It is used to make charcoal from wood and all kinds of biomass. It adopts new advanced hot air carbonizing technology, greatly improves the carbonization rate to 99%, compared with the carbonization rate 80% of traditional carbonization stove! Its charcoal making time is short .This kind stove is safe and easy to operate ,the charcoal made from the carbonization furnace can be the material of activated carbon. thus it is very famous among many industries like charcoal making industry and boiler industry!

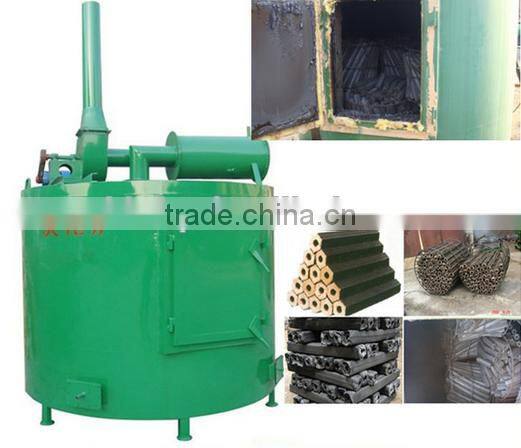

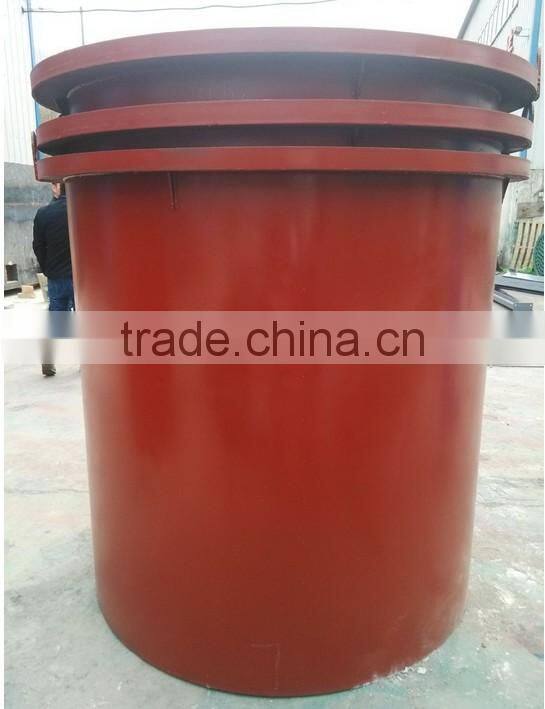

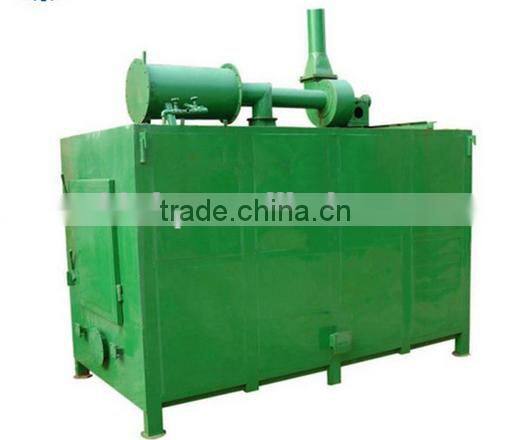

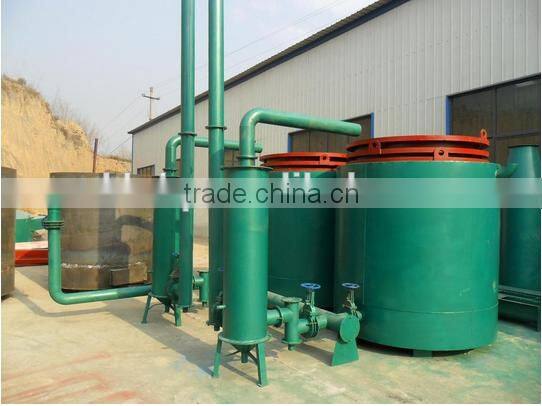

Detailed Images

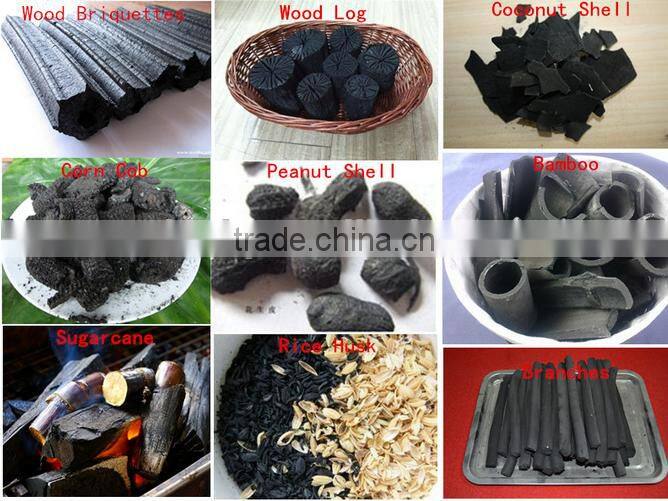

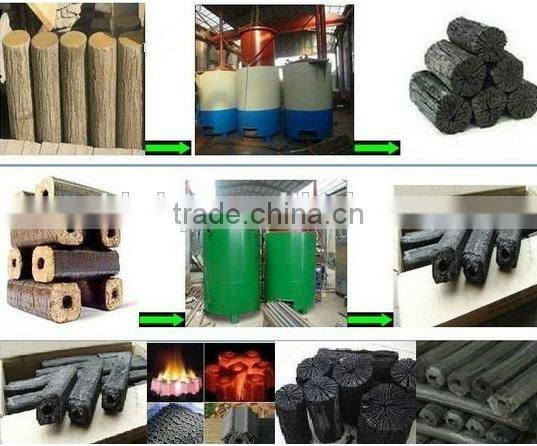

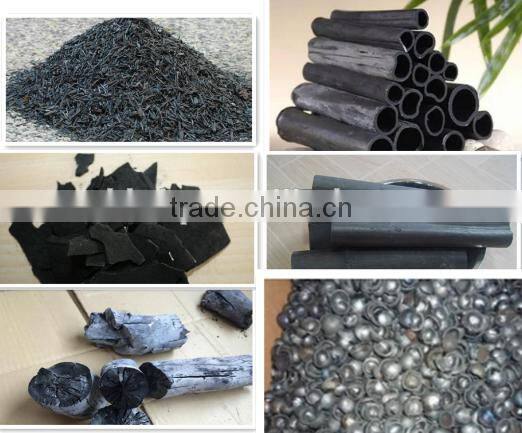

Raw materials

All kinds of wood, wood chips, wood branches, wood sawdust, wood wastes and other kinds of biomass like rice husks, peanut shells, coconut shells, wheat brans, bamboo, sugar cane, stalks, etc. And, the biomass briquettes like rice husk briquettes, wood briquettes can also be carbonized by our machine!



Features

1. Energy conservation environment protection, easy operate and maintain, higher safety,
2. High carbonization rate, no smoking, no pollution,
3. Newly developed carbonization stove, which can dry the materials with the superfluous energy               produced in the process of carbonization. 6-8 hours per stove and can work continuously

4. the tube of fume extraction will recycle the gas flow which come from the inner stove during the             carbonizing process for continue warming the stove, and it will save 70% energy consumption and           recycle 95% smoking

Technical parameter
Model
Size(m)
Volume(m3)
Capacity
Power (kw)
Temperature in the stove, °C
THL-3
2.3*1.6*2.1
3
0.8-1ton/24hrs
1.5
420-480
THL-5
2.4*1.8*2.2
5
1-1.5ton/24hrs
1.5
420-480
THL-6
3*2.2*2.2
6
1.5-2ton/24hours
1.5
420-480

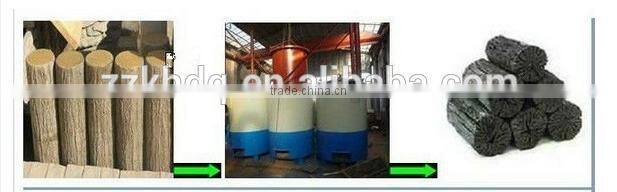

Working principle

 The surface of wood (bamboo, wood briquette, nut shell, etc) will ignite spontaneously in the hypoxic condition. And this spontaneous combustion will produce heat. This heat and the external heat source will heat the stove at the same time, when the temperature reach 280 degree, the chemical structure of the wood will be changed by the high-temperature, and after long time heating, changing and decomposing, then we will get the black charcoal, combustible gas, and wood tar. This model furnace will use the fume extraction tube to recycle all the combustible gas and smoking from the entire heat source.

Our company

Zhengzhou Kehua Industrial equipment Co.,Ltd rely on quality guarantee system established under complete process technologies, strong technical strength, advanced manufacturing technique, scientific management, perfect quality monitoring system and strict ISO9001 standard ,our company ,cooperating with state institute of mechanical research, has developed and produced briquetting equipment, briquetting presses. We can meet the demand of markets and satisfy clients’ needs.

Our products have been widely sold in over 20 provinces and regions in china and are export to Malaysia, India, Philippine, Northern Ireland of United Kingdom, Indonesia, Australia, Israel, Moldova, Oman, Egypt, United States, Mongolia, Tanzania, Russia, South Africa, Morocco, Middle East, Dubai etc. Our products are popular in the field and well accepted by new and existing customers.
