1.Specialized in study and machinery of pellet mill
2.ISO,CE,SGS certification
3.Can be customized
High quality biomass wood pellet fuel mill/pellet granulator is detailed as follows:
Specifications of high quality biomass wood pellet fuel mill/pellet granulator:
Type | Output (T/H) | Power (KW) | Processing Size (mm) | Weight (T) | Overall Size (mm) |
JKER560 | 1~1.5 | 90 | 4~12mm | 6.1 | 2600*1300*2300 |
JKER850 | 2.5~3.5 | 220 | 4~12mm | 14.5 | 3300*1400*3100 |
Its brief introduction is as follows:
This pellet mill absorbs the quintessence at home and abroad,the head part adopts "double-layer die" as the unique structure;The rollers are made of abrasion-proof alloy steel,improving the using lifetime of spare parts greatly;For the drive parts,the grease is filtrated automatically lubricated properly.Special design,rational structure,low power consumption,high efficiency,durable use,supplying the blank of vertical feeding of ring-die pellet mill at hone,reach the international advanced level.
Features of high quality biomass wood pellet fuel mill/pellet granulator:
1.-Vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.
2.-Ring Die fixed,rollers rotating,materials centrifugal,evenly distributed around.
3.-Double-layer dies,up and down dual-use,high efficiency,saving energy.
4.-Independent Iubrication,high pressure filtration,clean and unblocked.
5.-Independent changeable frequency device,ensure formation rate of pellets.
Application of high quality biomass wood pellet fuel mill/pellet granulator:
This pellet mill is suitable for pressing the materials which is hard bonding, difficult forming, such as the shells of rice husk, sunflower seed, wood fiber materials of branches, tree trunk, bark, tree, ect, crop straws; chemical materials of rubber ,cement, ash. It is widely used in biomass fuel factory, power plant, wood processing plant, fertilizer plant, chemical factory.
Sample of pellets:
Assistant machinery for JKER Series Ring Die biomass wood pellet fuel mill:
After-sale Service:
| Service is available to each customer.The after-sale service provided engineers available to service machinery overseas. |
| One-year warranty is provided. (The detailed reference will be written into the final contract.) |
| Professional staff for installation and training if needed. |
| Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
| Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
About Zouping Jinkun Machinery Production CO.LTD:
Zouping Jinkun machinery is established in the year 1999,with occupies a total area of about 122000 square meters and gross building area of 17000 square meters.It has more than 220 employees and over 80 of are mechanical creation design and engineering technical personnels.
We have been certified by CE ISO9001 and ISO14001.Our products sell well in more than 20 provinces in China.At the same time,our products enjoy good reputation in over 10 countries and areas in Africa,South America,Eastern Europe,Southeast Asia.

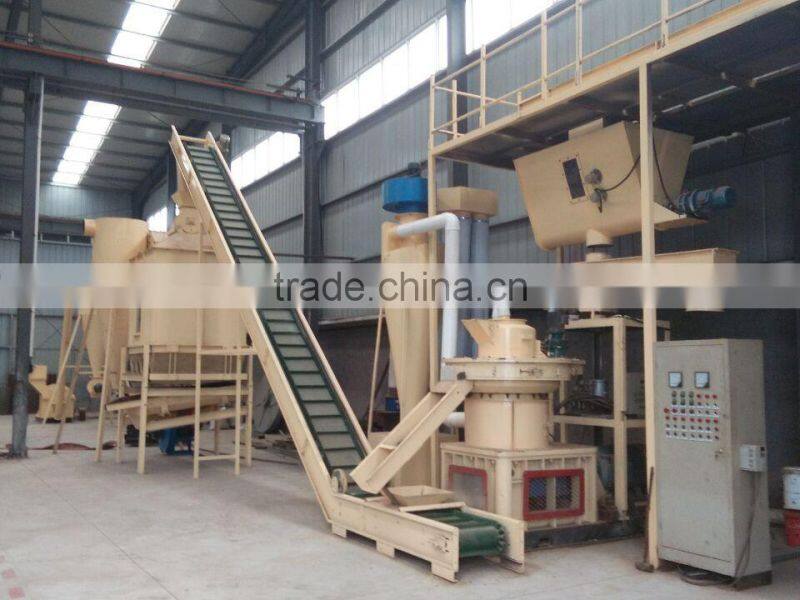

Successful case of JKER560 ring die biomass wood pellet fuel mill/pellet granulator:
About Jinkun Machinery:
If you need,pls conact us.Jinkun machinery is looking forwards to getting your equirey.
