2017 Biomass Pelletsmaking Machine

2017 Biomass Pelletsmaking Machine photo-1
2017 Biomass Pelletsmaking Machine photo-2
2017 Biomass Pelletsmaking Machine photo-3
2017 Biomass Pelletsmaking Machine photo-4
2017 Biomass Pelletsmaking Machine photo-5
2017 Biomass Pelletsmaking Machine photo-6
US$ 21,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
JINKUN
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name JINKUN
Model Number JKER560
Voltage 380V/220V
Power(W) 90KW
Dimension(L*W*H) 2600*1300*2300
Weight 6.1t
Certification ISO,CE,SGS
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Biomass fuel pellets making machine,timber pellet mill is detailed as follows:

2017 Biomass pelletsmaking machine

Specifications of biomass fuel pellets making machine,timber pellet mill:

Type

Output

(T/H)

Power

(KW)

Processing Size

(mm)

Weight

(T)

Overall Size

(mm)

JKER560

1~1.5

90

4~12mm

6.1

2600*1300*2300

JKER850

2.5~3.5

220

4~12mm

14.5

3300*1400*3100

2017 Biomass pelletsmaking machine

Its brief introduction is as follows:

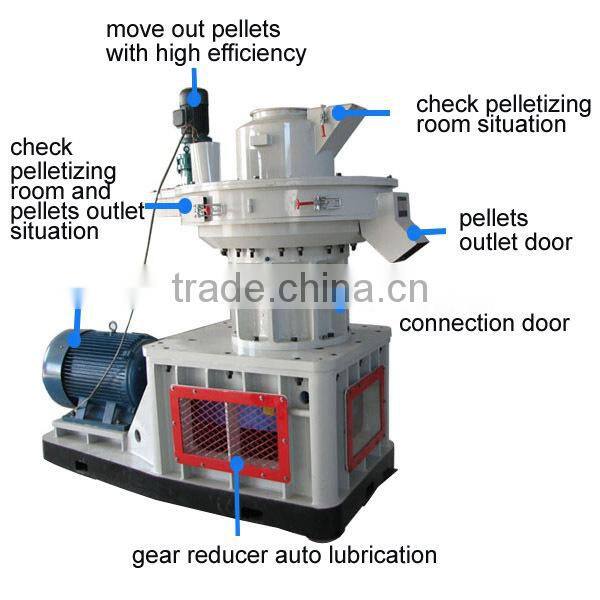

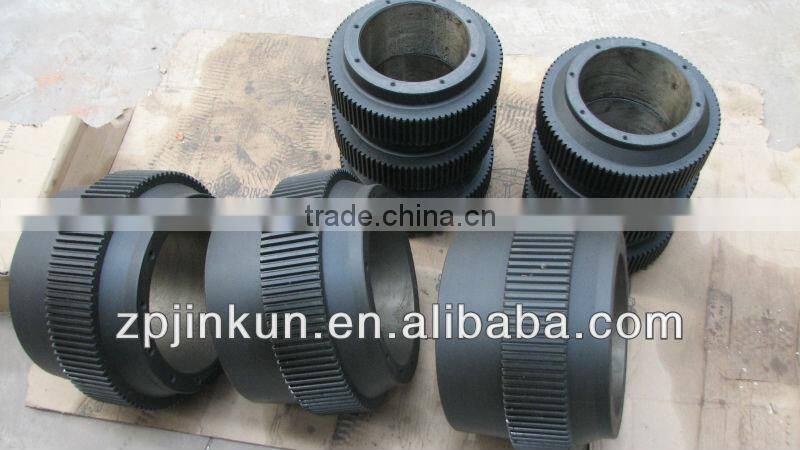

      This biomass fuel pellets making machine absorbs the quintessence at home and abroad,the head part adopts "double-layer die" as the unique structure;The rollers are made of abrasion-proof alloy steel,improving the using lifetime of spare parts greatly;For the drive parts,the grease is filtrated automatically lubricated properly.Special design,rational structure,low power consumption,high efficiency,durable use,supplying the blank of vertical feeding of ring-die pellet mill at hone,reach the international advanced level.

Features of biomass fuel pellet making machine,timber pellet mill:

1.-Vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.

2.-Ring Die fixed,rollers rotating,materials centrifugal,evenly distributed around.

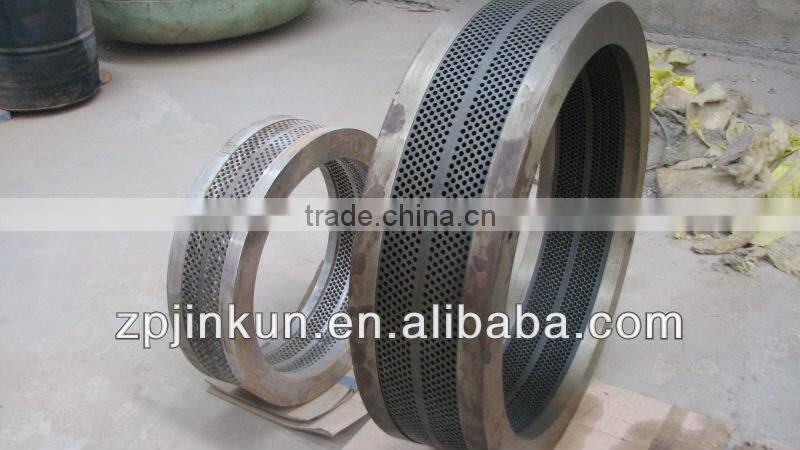

3.-Double-layer dies,up and down dual-use,high efficiency,saving energy.

4.-Independent Iubrication,high pressure filtration,clean and unblocked.

5.-Independent changeable frequency device,ensure formation rate of pellets.

2017 Biomass pelletsmaking machine

2017 Biomass pelletsmaking machine2017 Biomass pelletsmaking machine

Application of biomass fuel pellet making machine,timber pellet mill:

       This pellet making machine is suitable for pressing the materials which is hard bonding, difficult forming, such as the shells of rice husk, sunflower seed, wood fiber materials of branches, tree trunk, bark, tree, ect, crop straws; chemical materials of rubber ,cement, ash. It is widely used in biomass fuel factory, power plant, wood processing plant, fertilizer plant, chemical factory.

2017 Biomass pelletsmaking machine

Sample of pellets:

2017 Biomass pelletsmaking machine

Assistant machinery for JKER series biomass fuel pellet making machine production line:





Other pellet mill about Jinkun:

                                                            Flat die pellet mill



After-sale Service:

Service is available to each customer.The  after-sale service provided engineers available to service machinery overseas.
One-year warranty is provided. (The detailed reference will be written into the final contract.)
Professional staff for installation and training if needed.
Spare parts are supplying on time or doing some inventory if promising certain sales volume.
Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.



About Zouping Jinkun Machinery Production CO.LTD:

        Zouping Jinkun machinery is established in the year 1999,with occupies a total area of about 122000 square meters and gross building area of 17000 square meters.It has more than 220 employees and over 80 of are mechanical creation design and engineering technical personnels.

We have been certified by CE ISO9001 and ISO14001.Our products sell well in more than 20 provinces in China.At the same time,our products enjoy good reputation in over 10 countries and areas in Africa,South America,Eastern Europe,Southeast Asia.

2017 Biomass pelletsmaking machine



Successful case of JKER560 biomass fuel pellet making machine,timber pellet mill:

2017 Biomass pelletsmaking machine2017 Biomass pelletsmaking machine



 Please feel free to contact us,we will do our best to cooperate witn you!
2017 Biomass pelletsmaking machine
