Specifications
Fodder pellet mill with CE,ISO1-12 t/hr production
Complete pellet mill production line
Ring die pellet mill for saw dust
CE approved pellet equipments & fodder pellet mill with ISO/CE:

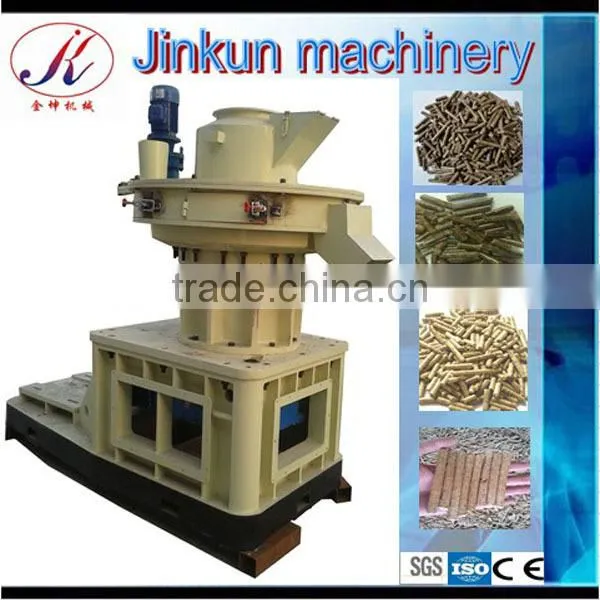

The brief introduction of biomass energy wood pellet mill JK450:
JK series efficient centrifugal pllet mill is our intiative patented products in China through meticulous research and development.The series pellet mill absorbs the quintessence at home ad abroad,the heart part adopts "double-layer die" as the unique structure;The roller are made by abrasion-proof alloy steel,improving the using life of spare parts greatly;For the drive parts,the grease is filtrated automatically lubricated properly.Special design,rational structure,low power consumption,high efficiency,sturdy and durable,supplying the gap of vertucal feeding of ring-die pellet mill at home,reach the international advanced level.
The feature of efficient centrifugal pellet mill:
1.Vertical die,feeding vertically;No arching of raw material,easy for heating dissipation.
2.Die fixed,rollers rotating,material centrifugal,evenly distributed around.
3.Double-layer dies,up and down dual-use ,high capacity,saving energy
4.Independent lubrication;high pressure filtration,clean and unblocked
5.Independent and frequency changeable cutting device,ensure formation rate of pellets

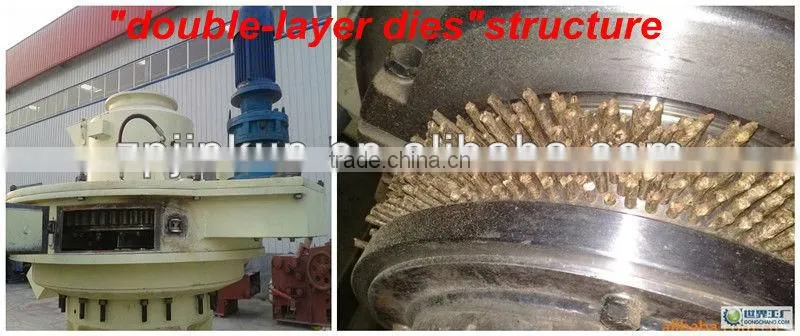

The heart part of pellet mill:
Ring die pellet mill machinery
The technical specification of wood pellet mill:
| Type of pellet mill | Production | Power | Standard | Weight | Dimensions |
| JK450 | 0.4-0.4 t/h | 55KW | Φ4-12 | 2.1t | 1250*100*1600mm |
| JK560 | 1-1.5 t/h | 90KW | Φ 4-12 | 6.1t | 2600*1300*2300mm |
| JK580 | 1.5-2.5 t/h | 160KW | Φ 4-12 | 7t | 2900*1300*2400mm |
| JK850 | 2.5-3.5 t/h | 220KW | Φ 4-12 | 14.5t | 3300*1400*3100mm |
| JK880 | 3-5 t/h | 315KW | Φ 4-12 | 18t | 3800*1680*3400mm |
| JK1050 | 5-8 t/h | 360-450KW | Φ 4-30 | ||
| JK1250 | 8-12 t/h | 550-660KW | Φ 4-30 |
Application:
Its main application:
peanut shell
rice hust
rice hust
branch
trunk
bark,rind,pill
agricultural straw
rubber waste
palm
bamboo
waste plastic
corn stalk
wheat straw
mushroom waste
garbage
dregs
cotton seed dull
Application industry:
biomass energy fuel plants
power plant
wood processing plant
fertilizer plant
chemical plant etc.
We can supply you the complete pellet mill production line
Production line;
The displayed picture in factory:
The complete line includes these equipments.Depending on your actual requirment,we choose your necessary machinery.

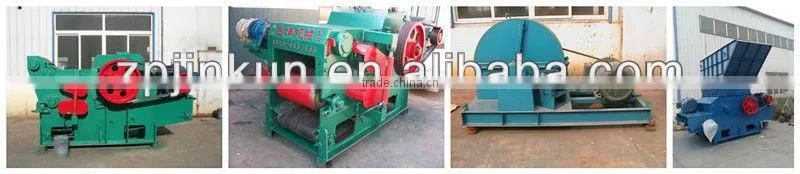

First equipment: Wood Chipper
For assive wood material,you need Wood Chipper.
Disc wood chipper and drum wood chipper
Second one:drying equipments
QHG series air-flow dryer
GHG series rotary dryer

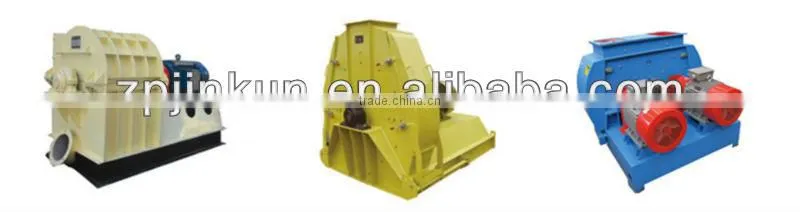

Third one:Hammer mill
From massive wood mterial to powder.
SG series multifunctional hammer mill
CD series efficient hammer mill
SDF series water-drop type hammer mill

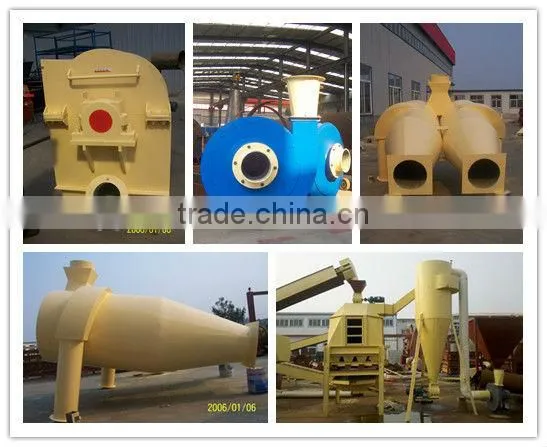

Fourth one:dedusting
Fifth one;Pellet mill,depending on your production requirements
Sixth one:if you choose multiple pellet mill,you need mixing machine
LSSHJ series dual-shart continuous mixer
LSHJ series single-shart continuous mixer
SSHJ dual-shaft oar efficient mixer
SHJ series single-shaft twin screw mixer

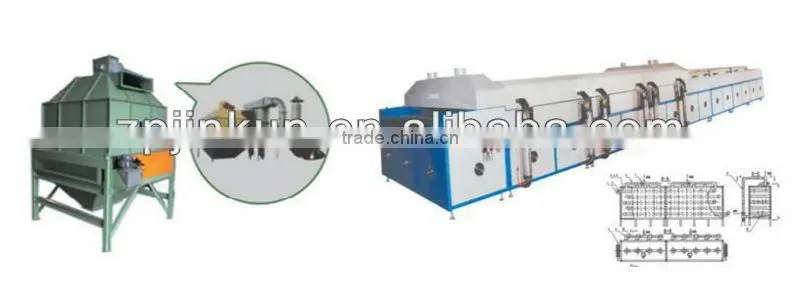

Cooling equipments:
SKLN counter flower cooler
Belt cooling machine

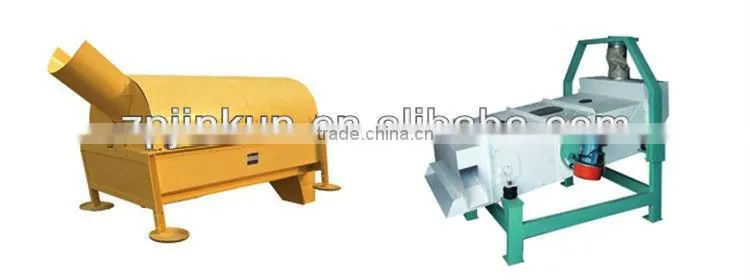

Staged screening equipments:
GTS rotary screener
SKFZ shaking staged screener
About Jinkun machinery CO.Ltd
Exhibition:
Certification:

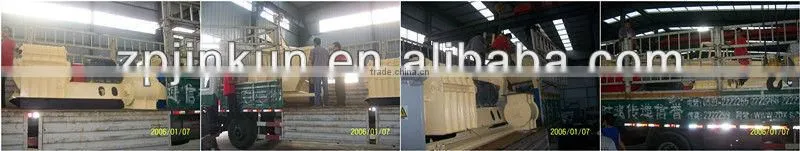

Delivering goods:
After-sale service:
1.one year qualityguarantee,if there is quality problem for main parts,we can send our engineers or technicists to your place to repair the equipments;
2.After one year guarantee period,we canoffer you spare parts,but you are supposed pay for cost of spare parts.
3.No matter what technical problems you have,you can call us,we can offer tchnical service for you.
Jinkun machinery is looking forwards to getting your kind inquiry.
