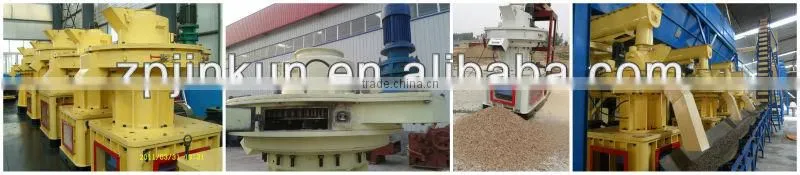

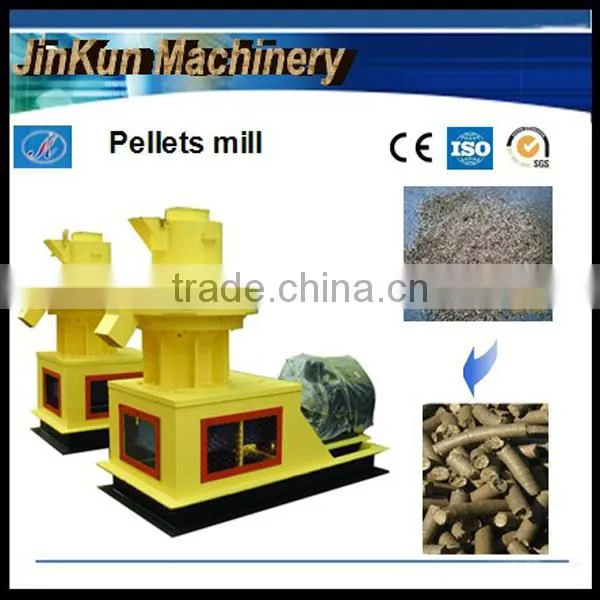

The introduction of vertical ring die pellet mill
JK series vertical ring die pellet mill is our main product which has adopted the essence of pellet mill in oversea market.
The heart parts “double layer die” has unique structural assembly and “rollers” are made of high wearable alloy materials.
These two parts have the following characters: particular design, reasonable structure, low energy, high efficiency, long life and so on.
Through many technical experts’ hard work, our company has developed this typical patent product which comes forth firstly in
domestic mark.
Any question please don't hesitate to ask us, just like this following :
Question 1 My raw material is low adhesiveness and low shaping
material such as rice husk, hard wood ,
, it's really OK to use your machine to make the pellets?
Yes. Please don't worry about that, JK vertical ring die pellet mill is our patented product. Its special design determines its
huge function.Maybe you will say you have used the flat die pellet and ring die pellet mill, but the pellet is hard to forming.
But our product adopts the vertical die to solve the problem,materials centrifugal ,evenly distributed around. If you are still doubt it , you can take
your raw material to visit our factory and test it by our product. We are pleased to welcome your coming.
Question 2 We want to make the fuel pellets, so in the pelleting process, if the tempetature too high, how to solve it?
Our technical experts also considerate the problem, so we equip the heat-removal system, and compare to the flat die pellet mill
and the ring die pellet mill, this is its dominant position. It can avoid the temperature of biomass pellets overtop.Such as the ring die pellet mill,b
ecause it’s mainly used for making feed pellets,so its tightness is very good,but if you use it to make biomass pellets,it will become so dangerous.
Question 3 Why is the price of this kind of machine is higher than
others?
Firstly JK series vertical ring die pellet mill are our company patented products. Its capacity can is twice other models. and it has double layer dies, up and down dualuse. It also has independent
and frequency changeable cutting device, ensure formation rate of pellets. By the way, if you are careful to look, you will find the weight of our
machine is heavier than others, so it is so stable when you operate it. So as a multifunction machine, its price must be higher than others.But from
the further way to see, you will find JK series is the best cost-efficient machine.
the technical parameter of vertical ring die pellet mill
| Model | Outpyut(t/h) | Power(kw) | Pellet Size(mm) | Weight(t) | Dimensions |
| JK450 | 0.4-0.7 | 55 | Φ4-2 | 2.1 | 1250*100*1600 |
| JK560 | 1-1.5 | 90 | Φ4-12 | 6.1 | 2600*1300*2300 |
| JK580 | 1.5-2.5 | 160 | Φ4-12 | 7 | 2900*1300*2400 |
| JK850 | 2.5-3.5 | 220 | Φ4-12 | 14. | 3300*1400*3100 |
| JK880 | 3-5 | 315 | Φ4-12 | 18 | 3800*1680*3400 |
| JK1050 | 5-8 | 360-450 | Φ4-30 | ||
| JK1250 | 8-12 | 550-660 | Φ4-30 |
