Part 1

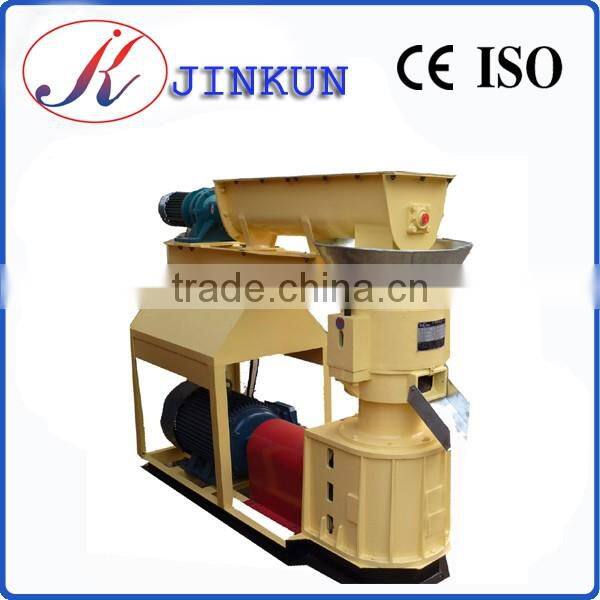

Flat Die Pellet Mill and Feed Pellet Mill for Sale.
Product Features:
♦ The "taper shape" rollers make their ends rounding liner speed consistent with flat die, so it avoids dislocated friction which maybe created between rollers and die. In this way, it can reduce friction and save much enengy consumption, lengthen die and rollers lifetime.
♦ Adjust the pressure through central screw, auxiliary pressurized by three axle ends; the die gap is varied, which is availble for different materials, ensure the pressure efficiency.
♦ Large rollers with wide groove, bear the more pressure and abrasion.
♦ The rollers are more evenly distributed, stable operation; increase the pressure areas and improve the production efficienly.
♦ The machines the high pressure filter lubrication system.
Technical Parameters:
| Type | Output capacity | Power | Diameter of pellet | Diameter of pellet | Weight(T) | Size(mm) |
| JKFD250 | 160-200kg/h | 15KW | 6-8mm | 250mm | 400kg | 1250*600*850 |
| JKFD300 | 200-300kg/h | 22KW | 6-8mm | 300mm | 550kg | 1300*600*900 |
| JKFD350 | 300-500kg/h | 30KW | 6-8mm | 350mm | 800kg | 1500*850*1400 |
| JKFD400 | 500-600kg/h | 37KW | 6-8mm | 400mm | 950kg | 1550*850*1650 |
| JKFD450 | 600-700kg/h | 45KW | 6-8mm | 450mm | 1080kg | 1600*850*1650 |
| JKFD550 | 700-900kg/h | 55KW | 6-8mm | 550mm | 1600kg | 1700*900*1750 |
Part 2:
Product Details
Part 3:
Raw Materies
Part 4:
Factory Workshop and Production
Part 5:
Client's Factory Visit and Exhibition
Part 5:
Certificate
Packaing Details : Export Standard
Delivery Details : Shipped in 20 days after payment
Zouping, in Shandong province, the hometown of the famous prime minister in Song Dynasty named FanZhongyan. His famous quotation that one should be the first to show concern for his country and the last to enjoy him spread so far . Along the beatiful scenery of the Xiaofu Rive, a new modern enterprise is diligently striving for people to go faster and further. It is the company that could improve the efficiency of the cutting in Maunfacture. Shandong Jinkun Machinery Manufuncturing CO, Ltdis establish in the year 1999, with registered capital of 10000000RMB and total assets 135000000RMB. It occupies a area of about 122000 square meters and gross building area of 17000 square meters. It has more than 220employees and over 80 of then are mechanical creation design and engineeing technical personnels. The transportation is very convenuient . To the south of the company is Jinan-Qingdao High- Way: to the East of the company is 205 Nationnal Highway.
We have been certifide by CE ISO9001 and ISO4001. Also we have theself-supported import and export right and the right of independence Customs. Our product is tested to be qualified by National quality and Technology Supervision Derpartrmnt The entry-exit inspection and quarantine department . Our products sell well in more than 20 provinces in China. At the Same time, our products enjoy good reputation in over 10 countried dan areas in Africa, South America, Eastern Europe ,Southeast Asia.
♦ Service is avaliable to each customer. The after-sale service provided engineers available to service machinery overseas.
♦ One-year warranty is provied.(The detailed reference will be written into the final contact.)
♦ Professional staff for installation and training if need.
♦ Spare parts are supplying on time or doing some inventory if promising certain sales volume.
♦ Faster delivery, we will support our sole sgent to do the stock if good sales, then more convenient helpful.
1. Are you a factory or a trading company?
JINKUN MACHINE CO,LTD .is a professionals Manufacturer .
2. Can I be your agent ?
Yes, Welcom to deep cooperation. We have big promotion of JINKUN brand in the market now. For the details please contact with our overseas manager.
3. Why choose us ?
More than 600 workers.
With the occupying area of 85000 square meters.
More than 10 years experiences in the industry of construction machine and agricultural machine
Competitive price and high quality .
One hour reaches Qingdao port .
All the inquiries will be replied within 12 hours .
